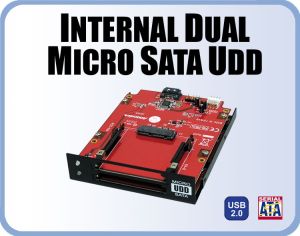

Internal Dual Micro SATA UDD
The Internal Micro SATA (also known as mSATA) UDD is one of Addonics family of solutions that enables any 1.8" micro SATA hard drive or SSD to be used like a removable drive cartridge. Designed to mount inside a standard 3.5" drive bay, this Micro SATA UDD can be connected to a high performance SATA port or a USB 2.0 port inside the computer. Once installed, any 1.8" Micro SATA hdd or SSD can be insert or remove from the system via the drive slot opening in front of the UDD, similar to inserting or removing a PCMCIA device. Also available in dual slot version to accommodate two 1.8" Micro SATA drives at the same time from a single 3.5" drive bay.
When using SATA connection, the optional Addonics CipherChain can also be added to secure all the data in the micro SATA drive with bullet proof hardware AES 256-bit encryption.
Key Features
Mounts inside any standard 3.5" drive bay
Choice of single or dual mSATA drive slots
Read and Write to any 1.8" device with mSATA interface including 1.8" SSD, 1.8" hard drive, CF media (via Addonics CF Micro SATA adapter)
Supports hot swap of mSATA device when connects to hot swappable SATA port or USB port
Complete Plug and Play
Connects internally through SATA or USB 2.0 connection
Power from PC power supply
Bootable via SATA connection
Power and drive access LEDs
Optional CipherChain in SATA connection to add AES 256-bit encryption
OS support
- USB connection - Windows 98SE, Me, 2000, XP, Mac OS X and above, Linux kernel 2.4 and higher, Solaris 9 and higher
- SATA connection - DOS, Windows 95, NT4.0, 98SE, Me, 2000, XP, Mac OS X and above, Linux Kernel 2.4 and higher, Solaris X and higher
MS2UDDUS NEW
Internal Dual Micro SATA UDD, one 3 feet USB 5-pin cable, one 18" SATA cable, Y- power cable, installation guide
Specifications
Interface:
|
SATA I/II, USB 2.0 |
| Maximum Read / Write Speed: |
SATA - up to 1,500 Mbps
USB - up to 480 Mbps |
| Power Source |
SATA - PC power supply with floppy type or 4-pin Molex power connector
USB - direct power over USB
Onboard voltage regulator to provide 3.3V required by Micro SATA hard drive or SSD
|
| Supported OS |
- USB connection - Windows 98SE, Me, 2000, XP, Mac OS X and above, Linux kernel 2.4 and higher, Solaris 9 and higher
- SATA connection - DOS, Windows 95, NT4.0, 98SE, Me, 2000, XP, Mac OS X and above, Linux Kernel 2.4 and higher, Solaris X and higher
|
| Dimensions: |
MSUDDUS: 101 mm (W) x 126 mm (D) x 25 mm (H)
MS2UDDUS: 101 mm (W) x 126 mm (D) x 25 mm (H) |
| Weight: |
MSUDDUS: 6.49oz (184g)
MS2UDDUS: 8.25oz (234g) |
| Operating Temperature and humidity |
0 C to + 60 C, 5 - 90% |
| Storage Temperature and humidity |
-40 C to + 85 C, 5 - 95% non condensing |
| Warranty: |
One Year |
