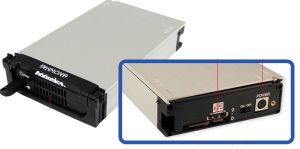

Addonics Cipher CHD HDD Enclosure - Black/Grey
  • 1x3.5" SATA HDD, 256-bit AES Hardware Encryption, USB3.0/2.0, eSATA

IMG 1 of 1
No Longer Available
Part Number:
150334
(?) Brand:
Addonics Web Site
Manuf No:
DCHD256EU3
Shipping Weight:
1.5 KG (Includes product packaging)
Estimate Shipping
Date Added:
16/8/2010
Details Files Images & Video
All stock codes associated to this product
DCHD256EU3
Diamond Cipher
Drive Enclosure

DCSACS256
Diamond Drive Cradle

DSABYB
 Diamond 256-bit Cipher key
Pair of Saturn Cipher key 64-bit
AAENKEY256-2
(256-bit version)
power adapter

AAPAC12V
eSATA - eSATA data cable 6 ft. click for large image
AAESATA200C
USB 3.0 to eSATAp Adapter
click for large image
ADU3ESA
SATA data cable
click for large image
AASAIDC18I

DCHD256EU3
Diamond AES 256-bit Cipher CHD with eSATA & USB 3.0/2.0 interface

The Diamond Cipher Combo Hard Drive Kit features the new generation of eSATA hard drive enclosures with the 256-bit AES hard encryption to ensure absolute data security should the drive get stolen or lost. The crypto engine inside the Diamond Cipher enclosure handles all the encryption and decryption on the fly with no detectable performance degradation on data transfer. Using native eSATA interface, the Diamond Cipher Combo Hard Drive supports the highest performance possible today through an externally connected hard drive enclosure.

The Diamond Combo Hard Drive kit is probably the most versatile storage solution in the market. This kit comes with all the necessary component to allow any 3.5" SATA hard drive to be used as a drive cartridge and as an external high performance eSATA hard drive. Constructed in heavy gauge aluminum with precision finish for smooth operation, the Diamond Cipher drive kit is built to last while at the same time providing excellent heat dissipation for the hard drive. Comes built in with the Addonics SATA direct bridge interface, the Diamond Cipher drive enclosure allows the SATA hard drive to appear as a direct connection to the host both in eSATA mode or SATA mode while at the same time isolates the SATA hard drive power and data connectors from the wears and tears incurred in some of the removable SATA hard drive system. 2.5" SATA hard drive can also be installed into the Diamond Cipher drive enclosure using the optional 2.5" hard drive mounting bracket.

When used as a drive cartridge, the hard drive can be swapped in and out of your computer without restarting your system. Instead of a slow tape cartridge, you enjoy the fast performance of the SATA hard drive. Once the OS detects the presence of the Diamond Cipher drive enclosure (cartridge), it appears as an additional hard drive to the system. There is no driver to install or special software required to do data backup or restoration. Data is stored uncompressed in its own native file format and can be accessed readily by any application program. When used as external hard drive via eSATA connection to a computer, the hard drive performs at the full speed and can achieve data transfer up to 3 times the speed of the standard USB or Firewire interfaces.

Features
  • Full disk encryption via a hardware-based NIST & CSE certified cryptographic AES engine
  • High performance - Data is encrypted and decrypted on the fly by a certified cryptographic engine inside an ASIC without taking any CPU resources
  • Encryption / Decryption via a hardware key , just like using a regular key to open a door.
    To enable the encryption and access the drive, simply insert the Cipher key into the keyhole of the Diamond Cipher enclosure prior to turn on the power.
  • Simple to deploy with no training required, no software to install and no password to remember
  • Platform independency - There is no software or driver to install to use Addonics encryption products. As a result, it can be deployed in any systems running any OS. This is important in organization with multi platform computing and legacy systems.
Drive enclosures features

  • eSATA connector built-in for external eSATA connection
  • Optional USB 2.0 to eSATA Adapter to connect through USB 2.0 connection
  • Optional USB 3.0 to eSATAp adapter for USB 3.0 connection.
  • Regular SATA connector for use as an removable hard drive via the Diamond Drive Cradles installed in a 5 1/4" drive bay
  • Choice of SATA / SATAIIhard drive enclosures
  • Hard drive connectors are isolated by a Direct SATA bridge from wear and tear in removable drive application
  • Support large hard drive beyond 137G with single partition.
  • No interface cabling between drive and enclosure for reliable connection.
  • No switch to set between internal and external hard drive application
  • Compact size for easy transportation - slightly larger than a VCR cassette
  • Sturdy aluminum body for use in rough environments
  • Well ventilated design, good heat conduction without fan for quiet operation
  • LED for both power, drive access and Cipher key activation
  • Optional cooling fan available
  • Simple hard drive installation
  • Optional 2.5"/1.8" converter kit
  • OS support in an external hard drive mode
    • eSATA - DOS, Windows 95, NT(SP6), 98SE, Me, 2000, XP, Vista, Windows 7, Windows 7, Mac, Linux and Solaris
    • USB - Windows 98SE, Me, 2000, XP, Vista, Windows 7, Windows 7, Mac, Linux and Solaris

Drive Cradle

  • Mount inside any standard 5 1/4" drive bay
  • Aluminum construction for effective heat dissipation inside any system
  • Connect to SATA interface
  • 4-pin floppy power connector
  • Drive Cradle keylock to secure Drive Enclosure and power on the drive
  • Drive Cradle LED can be set to come from hard drive or from controller
  • LED for both power and drive access
  • OS support in internal hard drive mode - DOS, Windows 95, NT(SP6), 98SE, Me, 2000, XP, Vista, Windows 7, Windows 7, Mac, Linux and Solaris
DCHD256EU3


Diamond Cipher 256-bit Combo Hard Drive for SATA or SATA II or SATA III hard drive with eSATA and USB 3.0 / 2.0 interface NEW

Specifications

Encrpytion type 256-bit AES hardware encryption via a hardware-based NIST & CSE certified cryptographic AES engine
Supported Drive Type
 3.5" SATA 1.5Gbps or 3.0Gbps
Supported Interface for Drive Cradle
  • SATA
  • IDE, USB, or SCSI (with optional converter boards)
Supported interface for Drive Enclosure

eSATA for external connection and SATA for internal connection via Diamond drive cradle

USB with optional eSATA - USB adapter (AAU2ESA)

Support large hard drive (over 137G) : Yes
Power source Internal Drive Cartridge System or Mobile Rack - from PC power supply
Drive Enclosure or External Drive Cartridge System - from 110/220 power adapter
Cooling fan Optional for drive enclosure
LED indicators

For power and drive access on drive enclosure and drive cradle
For Cipher key activation on drive enclosure

Material construction Aluminum
Supported OS
  • USB 2.0 - DOS, Windows 2000, XP, 2003, Vista, Windows 7, Windows 7, Mac OS X, Linux Kernel 2.4 and above, Solaris 8 10/00 or later release.
  • SATA - DOS, Windows NT4(SP6), 98SE, Me, 2000, XP, 2003, Vista, Windows 7, Windows 7, Mac OS X, Linux Kernel 2.4 and above or any OS that supports SATA hard drive
Dimensions

Drive enclosure: 8.19 x 4.57 x 1.46 in. (208 x 116 x 37 mm.)
Drive Cradle: 8.93 x 5.75 x 1.61 in. (227 x 146 x 41 mm.)
Weight 13.6 oz (enclosure without hard drive)
15.2 oz (drive cradle)
File Systems FAT, FAT32, NTFS and HPFS
Operating temperature: 0 C to +50 C
Operating humidity 5% to 90%
Storage temperature -40 C to +85 C
Storage humidity 5% to 95% (non condensing)
Warranty: One Year
RoHS compliant Yes



System Requirements

  • PC/AT or Compatible System
  • One available 5 1/4" drive bay or one of the following ports: SATA, eSATA, USB 2.0 and USB 1.1
  • Pentium or greater
  • Minimum 32 MB RAM
  • 10 MB minimum free hard disk space
  • One of the following operating systems: DOS, Windows NT(SP6), Windows 98SE / 2000, 2003, Me, XP, Vista, Windows 7, Windows 7, Mac OS, Linux, Solaris
