No Longer Available

Part Number:
150467
Usually Ships:
No Longer Available More info
(?) Brand:
Manuf No:
RSC00-80GAD3
RSC0080GAD3
Shipping Weight:
5 KG (Includes product packaging)
Introduction

Cooler Master offers another extensive range of power supplies that allows for a perfect fit for end users. Silent Pro Gold Series a brand new lineup of power supplies that meet the 80Plus Gold Standard with over 90% power efficiency.
Using patented technologies such as Heat Transfer Technology (HTT), Hyper Path and Hybrid Transformers, the Silent Pro Gold sets a new standard in PSU excellence.



Win Real Gold, HAF X GOLD & More atgold.coolermaster.com


Celebrating Cooler Master's 80 Plus Gold certified power supply, Silent Pro Gold, Cooler Master presents a Trade-in a Friend for Gold interactive online game. It tests your willingness to give up a friend for a chance to win real gold, HAF X GOLD and thousands of dollars in prizes. You can also win by entering your Silent Pro Gold serial number.

Features

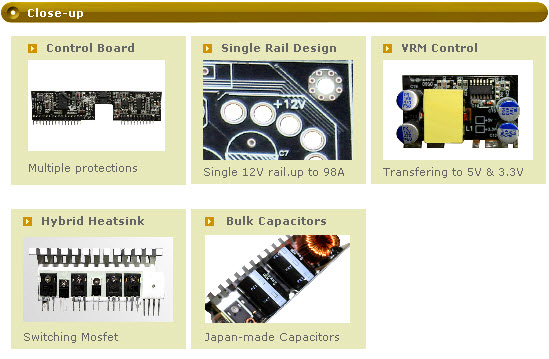

  • Heat Transfer Technology :
    A unique L-shaped heat-sink to remove heat from the PSU
  • Hybrid Transformer :
    Unique design that combines heat-sink with transformer
  • Hyper Path :
    Places IC close to transformers leading to huge efficiency ratings

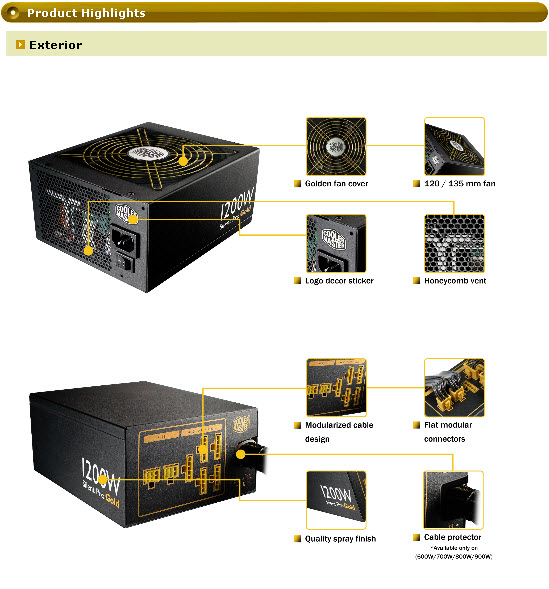

  • Flat modularized cables provide easy cable management leads to better airflow
  • Compliance with the latest Intel standard ATX 12V V2.3

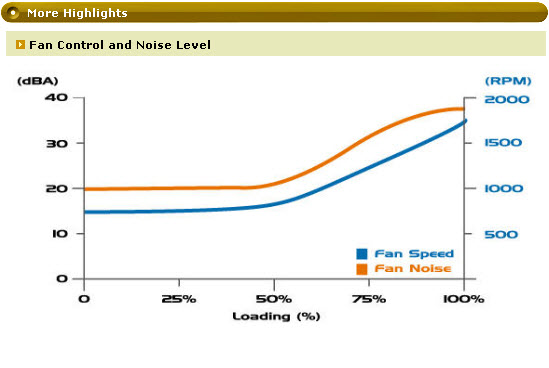

  • Operation with intelligent fan speed control
  • High reliability (MTBF> 100,000 hours)
  • Double Layer EMI Filter retrains noise and to avoid affect to users
  • Integrating Active PFC with PWN combo controller while increase efficiency
  • Multiple protection design (OVP/UVP/OPP/OTP/SCP/OCP)
  • Japanese-made capacitors
  • Single +12V rail up to 98A
  • Five-year warranty

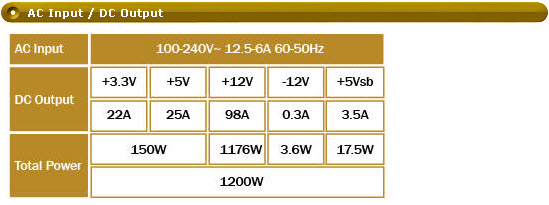

Specifications
Model RS-C00-80GA-D3

Type Intel Form Factor ATX 12V V2.3
SSI Form Factor EPS 12V V2.92

Dimension (W / H / D) 150 X 180 X 86 mm
5.9 x 7.09 x 3.4 inch

Input Voltage 90-264Vac (Auto Range)

Input Current 12.5 - 6A

Input Frequency Range 47-63Hz

PFC Active PFC (0.99)

Power Good Signal 100~500ms

Hold Up Time >17ms

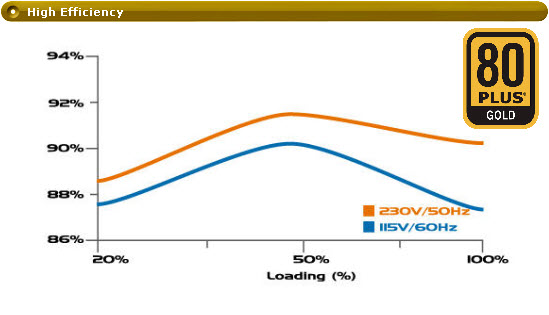

Efficiency 90% typical

MTBF >100,000 hours

Protection OVP / UVP / OCP / OPP / OTP / SCP

Output Capacity 1200W

Max. Output Capacity 1440W

Operation Temperature 0~40C (Nominal Input Voltage)

Regulatory CE / FCC / UL / TUV / C-Tick / GOST /
BSMI / CCC / KCC

Fan 135mm Ultra Silent Fan

Certifications SLI / CrossFire / 80 Plus Gold

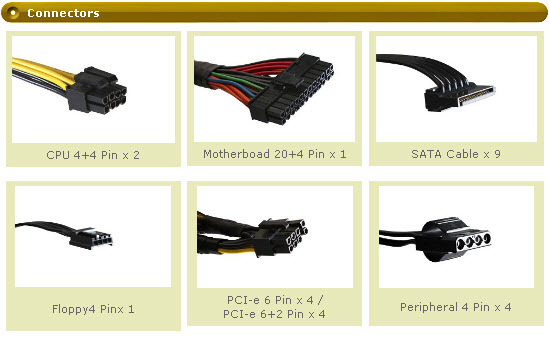

Connector M/B 20 + 4 pins x 1
CPU 4 + 4 pins x 2
PCI-e 6+2 pins x 4 / PCI-e 6 pins x 4
(One PCI-e 6+2 pins connector
extends to one PCI-e 6 pins connector)
SATA x 9 / Peripheral 4 pins x 4
Floppy 4 pins x 1


No additional files, specification sheets, guides or documentation found for product.

No related products found.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (CoolerMaster) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.

Visitor Reviews

[ There are no visitor reviews for this product yet]

Review Product
