IMG 1 of 1
1 image(s) are available
for this product
Note: physical product may
vary from images displayed.
No Longer Available

Part Number:
150955
Usually Ships:
No Longer Available More info
(?) Brand:
Manuf No:
S5520HCT
Shipping Weight:
2.5 KG (Includes product packaging)

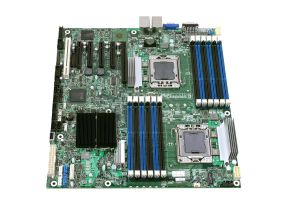

Intel Server Board S5520HCT
Intel Xeon Processor 5500 Series & 5600 Series

Tech Specs
Product Description
The S5520HCT features Next-Generation Intel Microarchitecture on a SSI EEB form factor board. Dedicated high speed buses based on Intel QuickPath Technology
- Dedicated high speed Intel QuickPath Technology per processor
- Powerful onboard IPMI 2.0 manageability with affordable KVM and remote media redirection upgrade path
- Four high speed PCI Express* 2.0 x8 slots
- Scalable memory expansion with 12 DIMMs slots
- Affordable 4-port SAS module support
- Trusted Platform Module (TPM)
Supported Chipset
Intel 5520 Chipset with ICH10R
Supported Processor
Intel Xeon processors 5500 series and 5600 series
Number of Processors Supported
Two
Memory Capacity
12 DIMMs sockets supporting up to 192GB of DDR3 memory
Supported memory type:
800/166/1333 MT/s ECC Registered (RDIMM), or ECC Unbuffered (UDIMM) DDR3 memory

NOTE: Mixed memory is not tested or supported. Non-ECC memory is not tested and is not recommended for use in a server environment

See product Technical Specification for memory configuration details
Storage
6-port SATA (3 Gb/s) via ICH10R
PCI Slot Type
Six expansion slots:
- One PCI Express* 2.0 x8 slots (x16 mechanical)
- Three PCI Express* 2.0 x8 slot (x8 mechanical)
- One PCI Express x4 slot (x8 mechanical shared with Intel 4-port SAS I/O module)
- One PCI 32/33 slot (5V)


Target Market
A performance server board designed for small & medium business owner



The S5520HCT features Next-Generation Intel Microarchitecture on a SSI EEB form factor board. Dedicated high speed buses based on Intel QuickPath Technology
- Dedicated high speed Intel QuickPath Technology per processor
- Powerful onboard IPMI 2.0 manageability with affordable KVM and remote media redirection upgrade path
- Four high speed PCI Express* 2.0 x8 slots
- Scalable memory expansion with 12 DIMMs slots
- Affordable 4-port SAS module support
- Trusted Platform Module (TPM)

Supported Chassis Intel Server Chassis SC5600Base
Intel Server Chassis SC5600BRP
Intel Server Chassis SC5600LX
Intel Server Chassis SC5650DP
Intel Server Chassis SC5650BRP

Dimension 12" x 13"
Supported Chipset Intel 5520 Chipset with ICH10R
Supported Processor Intel Xeon processors 5500 series and 5600 series
Number of Processors Supported Two
Memory Capacity 12 DIMMs sockets supporting up to 192GB of DDR3 memory
Supported memory type:
800/166/1333 MT/s ECC Registered (RDIMM), or ECC Unbuffered (UDIMM) DDR3 memory

NOTE: Mixed memory is not tested or supported. Non-ECC memory is not tested and is not recommended for use in a server environment

See product Technical Specification for memory configuration details
Storage 6-port SATA (3 Gb/s) via ICH10R
Integrated SAS N/A
Integrated SATA Six SATA/SATA II SATA ports (3 Gb/ps)
Integrated SCSI N/A
Integrated LAN Two 10/100/1000 Intel 82575 NICs
Integrated Graphics On-board ServerEngines* LLC Pilot II BMC Controller with Intergrated 2D Video Controller and 64MB memory, 8MB assigned to video

Integrated RAID Support Intel Embedded Server RAID Technology, with SW RAID levels 0/1/10; with optional support for SW RAID 5 with activation key

Total PCI Slots Six slots:
- One PCI Express* 2.0 x8 slot (x16 mechanical)
- Three PCI Express* 2.0 x8 slots (x8 mechanical)
- One PCI Express x4 slot (x8 mechanical shared with Intel 4-port SAS I/O module)
- One PCI 32/33 slot (5V)

USB Connections Four external USB 2.0 ports:
- One internal Type A USB 2.0 port
- One internal low-profile USB 2.0 port
- Two internal USB headers provide four USB2.0 ports

Server Management Integrated IPMI 2.0 compliant Baseboard Management Controller with remote management and KVM option
System Bus Intel QuickPath Technology
Warranty Three-year limited

Items Included With This Product
Item Part Number MM# # Required Description
Intel Server Board S5520HCT S5520HCT 904912 1 The S5520HCT features Next-Generation Intel Microarchitecture on a SSI EEB form factor board. Dedicated high speed buses based on Intel QuickPath Technology
- Dedicated high speed Intel QuickPath Technology per processor
- Powerful onboard IPMI 2.0 manageability with affordable KVM and remote media redirection upgrade path
- Four high speed PCI Express* 2.0 x8 slots
- Scalable memory expansion with 12 DIMMs slots
- Affordable 4-port SAS module support
- Trusted Platform Module (TPM)






No additional files, specification sheets, guides or documentation found for product.
