Secure, Reliable Managed Gigabit Switching with PoE for Small Businesses
Highlights
Eight high-speed ports to support bandwidth-intensive applications
Power over Ethernet easily and cost-effectively powers wireless access points, video cameras, and other network-connected endpoints
Strong security protects network traffic to keep unauthorized users off the network
Simplified, web-based management for easy installation and configuration

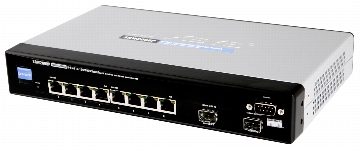

Figure 1. Cisco SRW2008P 8-Port Gigabit Switch: WebView/PoE
Product Overview
The Cisco SRW2008P 8-Port Gigabit Switch (Figure 1) brings Gigabit speeds to your users while adding a whole new level of intelligence and security to your network. The eight 10/100/1000 Mbps ports enable you to take advantage of the Gigabit Ethernet interfaces shipping in the current generation of servers, workstations, and storage devices, in addition to supporting existing 10/100 Mbps clients. The optional mini Gigabit Interface Converter (mini-GBIC) ports allow you to expand the network as your business grows.
The Cisco SRW2008P supports the IEEE 802.3af standard for Power over Ethernet (PoE). For applications where four or fewer PoE devices are being connected, the Cisco SRW2008P is the ideal solution. It supports four ports at 15.4W per port (or eight ports at 7.7W). All ports have automatic load sensing circuitry that automatically detects PoE on the end device before providing power. The ports also feature independent overload and short-circuit protection, along with LED indicators for power status.
As more business functions and processes migrate to the network, having an intelligent network becomes a necessity. The SRW2008P is able to secure the network through IEEE 802.1Q VLANs, IEEE 802.1X port authentication, access control lists (ACLs), and MAC-based filtering. At the same time, the enhanced quality of service (QoS) and traffic management features ensure clear and reliable voice and video communications.
Having this additional capability is not useful if it cannot be implemented. WebView provides an intuitive, secure management interface, enabling you to better utilize the comprehensive feature set of the Cisco SRW2008P, resulting in a better-optimized, more secure network.
Features
Eight 10/100/1000 Gigabit Ethernet ports
Two mini-GBIC slots for fiber and copper Gigabit Ethernet expansion
PoE available on any of the eight 10/100/1000 ports. The IEEE 802.3af maximum of 15.4W per port is available on four ports simultaneously or up to 7.5W on all eight ports
16-Gbps, nonblocking, store-and-forward switching capacity
Simplified QoS management using 802.1p, Differentiated Services (DiffServ), or type of service (ToS) traffic prioritization specifications
ACLs for granular security and QoS implementation
WebView management enables configuration and monitoring from a standard web browser
Secure remote management of the switch via Secure Shell (SSH) and Secure Sockets Layer (SSL) encryption
802.1Q-based VLANs enable segmentation of networks for improved performance and security
Private VLAN Edge (PVE) for simplified network isolation of guest connections or autonomous networks
Automatic configuration of VLANs across multiple switches through Generic VLAN Registration Protocol (GVRP) and Generic Attribute Registration Protocol (GARP)
User/network port-level security via 802.1X authentication and MAC-based filtering
Increased bandwidth and added link redundancy with Link Aggregation Control Protocol (LACP)
Enhanced rate-limiting capabilities and storm control, including multicast, broadcast, and flood control
Port mirroring for noninvasive monitoring of switch traffic
Jumbo frame support (10 KB)
Simple Network Management Protocol (SNMP) versions 1, 2c, and 3 and Remote Monitoring (RMON) support
Fully rack-mountable using the included rack-mounting hardware
Specifications
Table 1 contains the specifications, package contents, and minimum requirements for the Cisco SRW2008P 8-Port Gigabit Switch.
Table 1. Specifications for the Cisco SRW2008P 8-Port Gigabit Switch: WebView/PoE
|
Specifications
|
|
Ports
|
8 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T with 2 Gigabit combo ports shared between mini-GBIC ports and ports 7 and 8
Console port
Auto medium dependent interface (MDI) and MDI crossover (MDI-X)
Auto negotiate/manual setting
|
|
Cabling type
|
Unshielded twisted pair (UTP) Category 5 or better for 10BASE-T/100BASE-TX
UTP Category 5e or better for 1000BASE-T
|
|
LEDs
|
Link/Act, PoE, System
|
|
POE
|
802.3af compliant. Supplies up to IEEE standard maximum of 15.4W on four 10/100/1000 ports or up to 7.5W on eight 10/100/1000 ports
|
|
Performance
|
|
Switching capacity
|
16 Gbps, nonblocking
|
|
Forwarding rate
|
11.9 mpps wire-speed performance
|
|
Layer 2
|
|
MAC table size
|
8000
|
|
Number of VLANs
|
256 active VLANs (VLAN ID range is 4096)
|
|
VLAN
|
Port-based and 802.1Q tag-based VLANs
Management VLAN
|
|
Head-of-line (HOL) blocking
|
HOL blocking prevention
|
|
Management
|
|
Web user interface
|
Built-in Web user interface for easy browser-based configuration (HTTP/HTTPS)
|
|
SNMP
|
SNMP versions 1, 2c, and 3 with support for traps
|
|
SNMP MIBs
|
RFC1213 MIB-2, RFC2863 interface MIB, RFC2665 Ether-like MIB, RFC1493 bridge MIB, RFC2674 extended bridge MIB (P-bridge, Q-bridge), RFC2819 RMON MIB (groups 1, 2, 3, and 9 only), RFC2737 entity MIB, RFC 2618 RADIUS client MIB, RFC1215 traps
|
|
RMON
|
Embedded RMON software agent supports 4 RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis
|
|
Firmware upgrade
|
Web browser upgrade (HTTP) and TFTP
|
|
Port mirroring
|
Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe
|
|
Other management
|
Traceroute
SSL
SSH
RADIUS
Port mirroring
TFTP upgrade
SSL security for web user interface
Dynamic Host Configuration Protocol (DHCP) client
BOOTP
Simple Network Time Protocol (SNTP)
Xmodem upgrade
Cable diagnostics
Ping
Telnet client (SSH secure support)
|
|
Security
|
|
IEEE 802.1X
|
802.1X - RADIUS authentication; MD5 encryption
|
|
Access control
|
ACLs - Drop or rate limit based on:
Source and destination MAC-based
Source and destination IP address
Protocol
ToS/DSCP
Port
VLAN
Ethertype
|
|
Availability
|
|
Link aggregation
|
Link aggregation using IEEE 802.3ad LACP
Up to 8 ports in up to 8 groups
|
|
Storm control
|
Broadcast, multicast, and unknown unicast
|
|
Spanning Tree
|
IEEE 802.1D Spanning Tree
IEEE 802.1w Rapid Spanning Tree
IEEE 802.1s Multiple Spanning Tree
|
|
Internet Group Management Protocol (IGMP) snooping
|
IGMP (v1/v2) snooping limits bandwidth-intensive video traffic to only the requestors. Supports 256 multicast groups
|
|
QoS
|
|
Priority levels
|
4 hardware queues
|
|
Scheduling
|
Priority queuing and weighted round-robin (WRR)
|
|
Class of service
|
Port based
802.1p VLAN priority based
IPv4/v6 IP precedence/ToS/DSCP based
TCP/ User Datagram Protocol (UDP) port-based
DiffServ
Classification and re-marking ACLs
|
|
Rate limiting
|
Ingress policer
Egress rate control
|
|
Standards
|
802.3 10BASE-T Ethernet, 802.3u 100BASE-TX Fast Ethernet, 802.3ab 1000BASE-T Gigabit Ethernet, 802.3z Gigabit Ethernet, 802.3x flow control, 802.3ad LACP, 802.3af PoE, 802.1d Spanning Tree Protocol (STP), 802.1Q/p VLAN, 802.1w Rapid STP, 802.1s Multiple STP, 802.1X port access authentication
|
|
Environmental
|
|
Dimensions
W x H x D
|
11 x 1.75 x 6.69 in.
(279 x 45 x 170 mm)
|
|
Unit weight
|
2.65 lb (1.2 kg)
|
|
Power
|
External AC power adapter
|
|
Certification
|
FCC Part 15 Class A, CE Class A, UL, cUL, CE mark, CB
|
|
Operating temperature
|
32 to 104F (0 to 40C)
|
|
Storage temperature
|
-4 to 158F (-20 to 70C)
|
|
Operating humidity
|
10% to 90%
|
|
Storage humidity
|
10% to 95%
|
|
Package Contents
|
|
Cisco SRW2008P 8-Port Gigabit Switch plus two shared mini-GBIC ports
AC power adapter and cord
Rack-mounting kit
CD with user guide in PDF format
Registration card
Console cable
|
|
Minimum Requirements
|
|
Web-based utility: Microsoft Internet Explorer (version 5.5 or later)
Category 5 Ethernet network cables
Operating system: Windows 2000, XP, or later
|
|
Product Warranty
|
|
5-year limited hardware warranty with return to factory replacement and 90-day limited software warranty.
|
