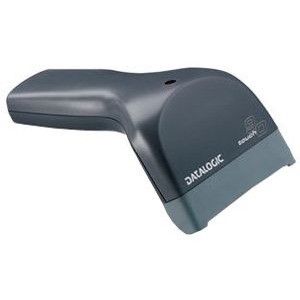

Datalogic Scanning Touch 90 Light Handheld Linear Imager - Black (PS2 Compatible)

IMG 1 of 1
No Longer Available
Part Number:
152855
(?) Brand:
Datalogic Scanning
Manuf No:
901201242
Shipping Weight:
1 KG (Includes product packaging)
Estimate Shipping
Date Added:
16/9/2010
Details Files Images & Video
All stock codes associated to this product
901201242, 1182879, 5051964439981

Touch 65/90 Pro and Light

General Purpose Corded Handheld Contact Linear Imager Bar Code Reader



The Touch 65/90 linear imaging contact readers are an excellent value for those seeking a cost-effective solution for general purpose document handling and retail applications

Touch 65/90 Pro provides a complete all in one multi-interface solution, including RS-232, USB, Wedge and Wand Emulation while Touch 65/90 Light provides USB or PS2 Wedge and RS-232 single models. Both feature high first pass read rates by combining excellent reading performance with advanced code reconstruction for reading damaged or poorly printed codes, resulting in higher productivity. Data editing and data formatting modes are available to format the collected data as required by the application software.

The Touch readers are available with 65 mm / 2.6 in and 90 mm /3.5 in reading windows, for reading standard and wider bar codes. The Touch readers are available in triggered models. They can also be used as triggerless readers, by simply disabling the trigger with a configuration command.

Available in Dark Grey, additional custom color options are available for a minimum order quantity.

Specifications

Decoding Capability
  • 1D / Linear Codes
    • Autodiscriminates all standard 1D codes including GS1 DataBar linear codes

  • Stacked Codes
    • GS1 DataBar Expanded Stacked

    • GS1 DataBar Stacked

    • GS1 DataBar Stacked Omnidirectional

Electrical
  • Current
    • Operating (Typical)
      • 100 mA @ 5 VDC

    • Standby/Idle (Typical)
      • < 500 A @ 5 VDC

  • Input Voltage
    • 5 VDC +/- 5%

Environmental
  • Ambient Light
    • 0 - 2,000 lux

  • Drop Resistance
    • Withstands repeated drops from 1.2 m / 3.9 ft onto a concrete surface

  • ESD Protection (Air Discharge)
    • 16 kV

  • Humidity (Non-Condensing)
    • 90%

  • Particulate and Water Sealing
    • IP30

  • Temperature
    • Operating
      • 0 to 55 C / 32 to 131 F

    • Storage/Transport
      • -20 to 70 C / -4 to 158 F

Interfaces
  • Keyboard Wedge
    • 65/90 Light

  • RS-232 / USB / Keyboard Wedge / Wand Multi-Interface
    • 65/90 Pro

  • USB
    • 65/90 Light

  • Wand
    • 65/90 Light

Physical Characteristics
  • Colors Available
    • Dark Grey

    • Other colors and custom logo options are available for minimum quantity purchase.

  • Dimensions
    • Touch 65
      16.4 x 7.8 x 6.3 cm / 6.5 x 3.0 x 2.5 in
    • Touch 90
      17.5 x 10.0 x 8.0 cm / 6.9 x 3.9 x 3.1 in

  • Weight
    • Touch 65
      160.0 g / 5.6 oz
    • Touch 90
      195.0 g / 6.9 oz

Reading Performance
  • Imager Sensor
    • CCD Solid-state 2048 pixels

  • Print Contrast Ratio (Minimum)
    • Light Models
      25%
    • Pro Models
      15%

  • Read Rate (Maximum)
    • 256 reads/sec.

  • Reading Indicators
    • Beeper (Adjustable Tone)

    • Good Read LED

  • Resolution (Maximum)
    • Touch 65
      0.100 mm / 4 mils
    • Touch 90
      0.130 mm / 5 mils

Reading Ranges - Typical Depth of Field
  • Minimum distance determined by symbol length and scan angle.

  • Printing resolution, contrast, and ambient light dependent.

  • 5 mils
    • 0 to 2.5 cm / 0 to 1.0 in
  • 7.5 mils
    • 0 to 4.3 cm / 0 to 1.7 in
  • 10 mils
    • 0 to 5.0 cm / 0 to 2.0 in
  • 13 mils
    • 0 to 6.8 cm / 0 to 2.7 in
  • 20 mils
    • 0 to 8.0 cm / 0 to 3.2 in
Safety & Regulatory
  • Agency Approvals
    • The product meets necessary safety and regulatory approvals for its intended use.

    • The Quick Reference Guide for this product can be referred to for a complete list of certifications.

  • Environmental Compliance
    • Complies to China RoHS

    • Complies to EU RoHS

Utilities
  • Datalogic Aladdin
    • Datalogic Aladdin configuration program is available for download at no charge

  • OPOS / JavaPOS
    • JavaPOS Utilities are available for download at no charge

    • OPOS Utilities are available for download at no charge

Warranty
  • 5-Year Factory Warranty
