PC-Q11B | Lian Li PC-Q11 HTPC Case - No PSU, Black

LIAN LI - Excellent Design

A Good Design is to make the life simpler, not complicate it. The Mini-Q PC-Q11 is in minimalism style, it is a combination of art and technology.

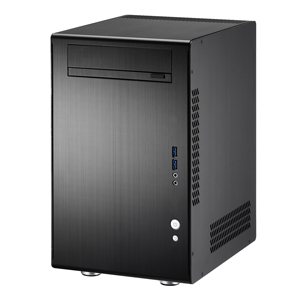

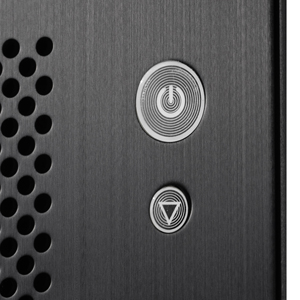

The clean shape of Mini-Q PC-Q11 with rounded edge can be fit with interior decoration easily. The hair-lined anodized aluminum exterior dress up with blue and red back-lighted power and reset buttons. The design of Mini-Q PC-Q11 is to be as simple as possible, the exterior of the case is also the structure of the chassis.

Lian Li Fine Craftmanship Product

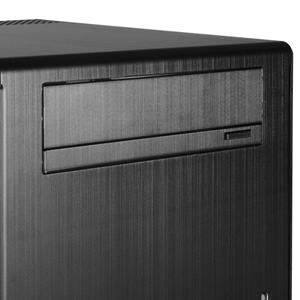

To ensure user can put everything together easily, Lian Li designer decided to use only standard PC component inside the Mini-Q PC-O11, standard Mini-ITX/DTX motherboard, standard 5.25 optical drive, standard 3.5 / 2.5hard drives, standard ATX PS/2 power supply units. The parts are easy to get on current market, and it would be easy to upgrade and server in the future.

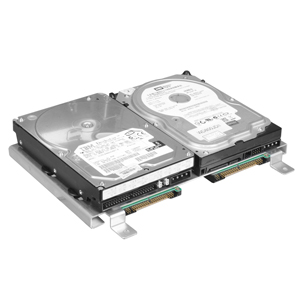

Mini-Q PC-Q11 supports two of 3.5" and 2.5"HDDs, The modular HDD cage can be removed, simply un-do the thumb screw,ideal for easy HDD installation and services.

Silent Performance

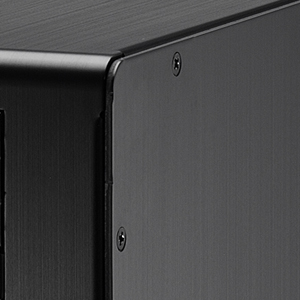

The Chassis is made of 1.5mm aluminum alloy panel, The thick and solid chassis has no vibration problem. To reduce the size of the Mini-Q PC-Q08, the side panel are secured with screws, it also reduce the vibration, and lower the noise level.

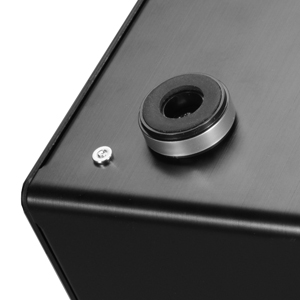

The aluminum case stand with rubber pad to absorb the vibration to reduce the noise.

Thermal Solution

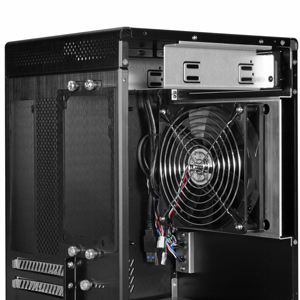

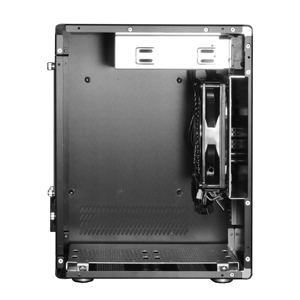

There is a 140mm intake fan on Mini-Q PC-Q11, The fan can output high air flow volume with lower RPM to push the cold air through the m/b.

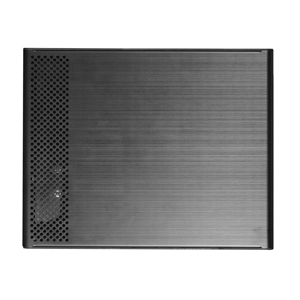

There are vent holes at the top part and side panels, allow air to enter to cool the system down.

There are also some vent holes next the rear I/O slots, designed for CPU cooling.

Stanrdard ATX PS/2 power supply unit. When user has an ATX PS/2 power supply with 120mm cooling fan, it can be facing the motherboard which are passive cooled.

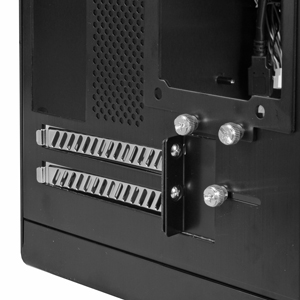

There are vents on the PCI slots, provids extra cooling to graphics card.

User Friendly Design

Multi-media port connectors follow international specification standards, with one connector for easy installation.

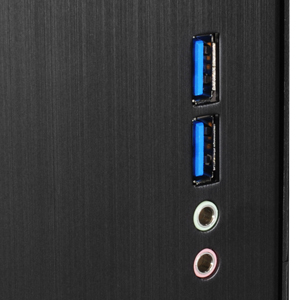

New USB3.0 ports, Audio supports HD Audio on the front cover. The dual design is for better compatibility options, allow for easy access.

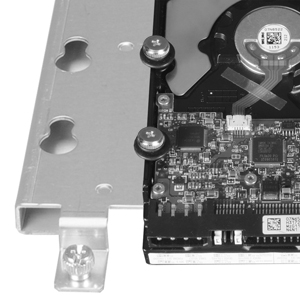

The installation of 3.5 hard drive require no tool at all, with the latest Lian Li patented anti-vibration HDD mounting system, mount the hard drive with thumb screws, and slide it into the cage.

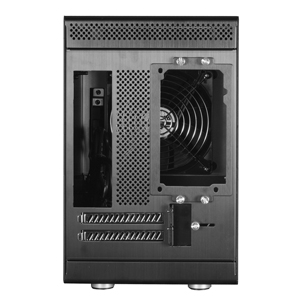

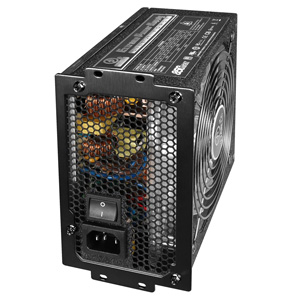

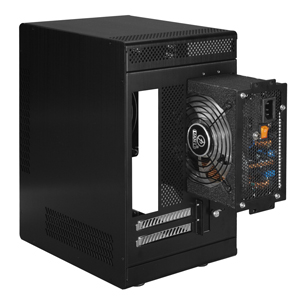

The power supply unit mounted with a mounting plate, after connect all the cables, slide the power supply into the case through the rear opening. It is also a handy design when service the system.

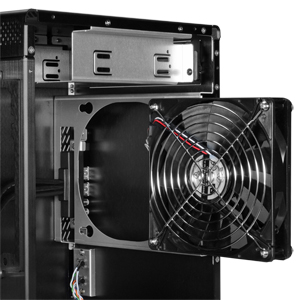

The fan on the front panel is mounted with special screws with rubber ring suspension grommets. allow easy access and removal of the fan for cleaning or service.
