All stock codes associated to this product
TH-47LF20W, TH47LF20W, 1320807
1080p Full HD Professional LCD Display
TH-47LF20W

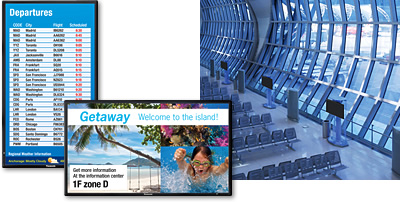

Powerful LCD Full-HD Signage for Use in Open Spaces
- 700cd/m2, high brightness
- Slim designs, Light Weight
- Designed for Professional Use
Superior Picture Quality
700 cd/m2 High Brightness
LF20 Series have a high brightness of 700 cd/m². And they feature an IPS panel with full-HD resolution and a wide-viewing angle. They display clear images even in bright locations, and transmit information accurately.

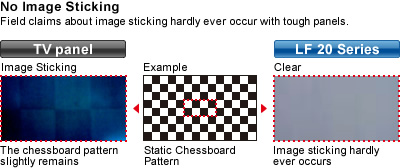

Tough Panel for Signage Use
This rugged liquid crystal display panel strongly resists afterimages and soiling to provide the long-time display durability that is essential for signage use.

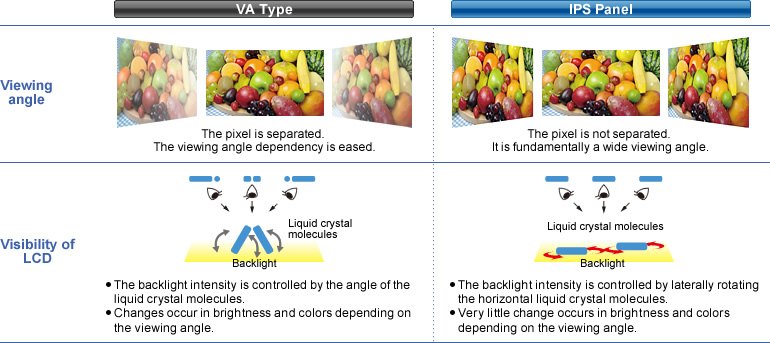

Wide Viewing Angle for Sharper Images
The IPS panel has a wide viewing angle, so colors dont change when the image is viewed from right or left angles. Information can be accurately relayed to groups of people in large areas, like public spaces.

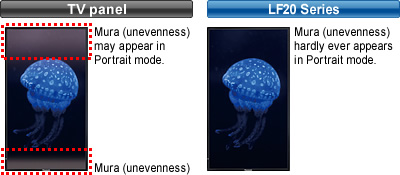

Flexible, Vertical Installation
The display can be installed either horizontally or vertically to match the content and installation location without being affected by “Mura” (unevenness). This is because the display has relatively uniform pressure distribution as compared to a TV panel, which results in far better stability. Regardless of the installation direction, the lamp life stays the same since a constant operating temperature is maintained.
Dust-Resistant, Fanless Design
While raising heat dissipation efficiency, the unique Panasonic fanless design resists dust entry and lowers operating noise. Dust particles are not sucked inside, so the display can be installed just about anywhere.
Built-in Speakers
10-watt (5w + 5w) speakers are built-in to the left and right sides of the rear panel. This eliminates the need to attach external speakers when sound is required, for quick and easy installation.

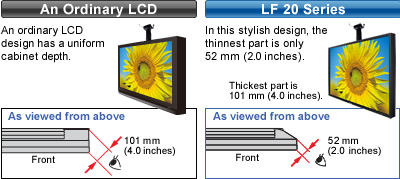

A Slim 101 mm (4.0 inches) Panel Thickness and 18 mm (0.7 inch) Bezel
A simple design with a slim bezel of approximately 18 mm(0.7 inch) and thickness of only 101 mm(4.0 inches) facilitates signage applications by enabling installation just about anywhere. In fact, with the thinnest part measuring only 52 mm(2.0 inches) , the display looks even slimmer than it is. This prevents it from appearing large and oppressive when suspended from the ceiling. The slim bezel also enhances this thin appearance and improves image visibility.
Display Functions
ECO Mode
In order to lower power consumption, a sensor detects the ambient lighting and automatically adjusts the backlight brightness to match the viewing environment. Power consumption can also be reduced by lowering the screen brightness.
Energy-Saving
Power Management
Power is automatically turned on or off in response to a sync signal from the equipment connected to the built-in PC* input terminal.
Auto Power Off
When youre using a device connected to the terminals, the display panel goes into standby mode after about 10 minutes if no sync signal is received.
Standby Power Save Mode
Reduces power consumption when on standby.
* DPMS compliant
Tamper-Resistant Settings
You can prevent operating errors in public places by making tamper-resistant settings in advance.
| Maximum Volume Level : Sets the maximum sound volume. |
| Button Lock : Restricts the button operations for the display. |
| Remote User Level : Restricts the key operations for the remote control. |
Screen Saver
The screen saver reduces the possibility of afterimages or image retention that can occur when displaying still images with constant, unchanging brightness for long periods of time. The Auto Power Off setting can also be set to automatically turn the power off when the screen saver operation ends.
Remote System Monitoring
The status of the display, such as the power supply, input signal, display temperature and accumulated hours of use, can be remotely monitored via an RS-232C interface. This enables a quicker response to problems when operating systems for advertising purposes or information display.
Power Restore Mode
When the power plug has been removed and re-inserted, or when the power has temporarily gone off due a power outage, the display can be set to turn its own power back on once the power supply has been restored.
Power-On Delay Function
For video walls and other multi-unit applications, this function automatically shifts the power-on time slightly for each display unit in the system, so there's less load on the power supply.

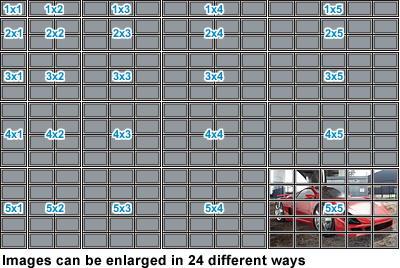

Multi-Screen System Dynamically Displays Images in Large Spaces
The Multi-Display function enlarges images up to five times their original size, both vertically and horizontally. It enlarges images by the same zoom ratio in both vertical and horizontal directions, such as 2x2, 3x3, 4x4 and 5x5, or by different ratios in order to effectively use vertically or horizontally elongated spaces. LCD display versatility can be further enhanced by freely selecting the zoom ratio to match the installation space.
* Some degradation occurs when images are enlarged.
* Provide an appropriate air-conditioned environment because the ambient temperature varies depending on the installation condition and location.

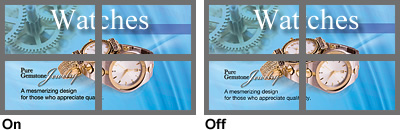

Seam Hides Video Mode
When this mode is turned off, a full-screen image of the display panel, including edges (the entire width of the frame), is displayed. This is especially suitable for displaying text information, since no words are hidden by the frame.
Automatic Picture Positioning
Simply press the Auto Setup key on the remote control to position the picture. This function automatically corrects the horizontal and vertical picture positions, the Clock Phase, and the Dot Clock when an RGB signal is input. The adjustment results in optimal standard values for horizontal and vertical picture sizes.
* When digital RGB signal input, Dot Clock and Clock Phase cannot be made.
1:1 Pixel Mode
The 1:1 Pixel mode maps the 1920 1080 video content to full-HD panel pixels to display 100% of the original content. By skipping the scaling process, this mode is able to produce high-definition images in their original, 1:1 pixel form.
* Compatible signal format: 1,125/50i, 60i, 24sF, 24p, 25p, 30p, 50p, 60p, 1,250/50i
Product Specifications
| Model |
TH-47LF20U |
TH-47LF20E |
TH-47LF20W |
| DISPLAY |
Screen Size |
46.9-inch |
47-inch |
47-inch |
| Aspect Ratio |
16:9 |
| Effective Display Area (W x H) |
1039 x 584 mm (40.9" x 23.0") |
| Panel |
IPS Panel |
| Resolution (H x V) |
1,920 x 1,080 pixels |
| Pixcel Pitch |
0.5415 x 0.5415 mm (0.0213" x 0.0213") |
| Brightness |
700 cd/m2 |
| Contrast Ratio |
1,200:1 |
| Viewing Angle (Horizontal/Vertical) |
178/178 |
| Operating Life*1 |
50,000 hours |
| Connection Terminal |
Component/RGB IN, Audio IN |
Component/RGB IN, Audio IN |
Component/RGB IN, Audio IN |
| HDMI IN x 2, DVI-D IN |
HDMI IN x 2, DVI-D IN |
HDMI IN x 2, DVI-D IN |
| PC IN, Audio IN |
PC IN, Audio IN |
PC IN, Audio IN |
| RS-232C IN |
RS-232C IN |
RS-232C IN |
| Electrical |
Rated Power Consumption |
300 W |
290 W |
290 W |
| On Mode Average Power Consumption*2 |
178 W (ENERGY STAR Displays 5.0.) |
TBD |
TBD |
| Power off Condition |
0.1 W |
0.2 W |
0.2 W |
| Stand-by condition |
0.1 W |
0.2 W |
0.2 W |
| Sound |
Built-in Speakers |
10W [5W + 5W] (10%THD) |
| Mechanical |
Dimensions |
1,079 x 624 x 101 mm (42.5" x 24.6" x 4.0") |
| Weight (approx.) |
23.0 kg (50.7 lbs.) |
| Operation Environment |
Temperature |
0C to 40C (32F to 104F) |
| Humidity (Non condensation) |
20 % to 80 % |
*1 An approximate time until the panel brightness decreases to half of its original value.
*2 Based on IEC 62087 Ed. 2 measurement method.
