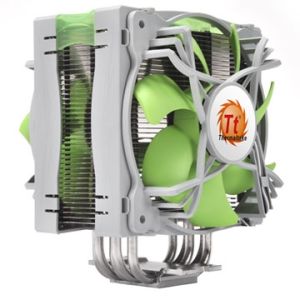

ThermalTake Jing CPU Cooler - Intel S775/LGA1156/LGA1366, AMD AM3/AM2/AM2+, 2x120mm Fan, 1300rpm, 42CFM, 16dBA

IMG 1 of 1
No Longer Available
Part Number:
155988
(?) Brand:
ThermalTake Web Site
Manuf No:
CLP0574
Shipping Weight:
1.5 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
CLP0574, CFANCLP0574, CFAN-CLP0574

Features

 - Optimized cooling performance
- 2 extremely silent 120mm VR fans, speed from 800~1300RPM
- Universal Socket Compatibility & Accessory Package

Detailed Feature

Optimal cooling performance:

  • Large Aluminum fins with five 6 heat-pipes offers good cooling capacity. It supports to OC 4.0G in i7 CPU.
  • All nickel plated fins, copper base and heat-pipes for better heat transmission.

2 Extremely silent 120mm VR fan, adjustable speed from 800~1300RPM.

  • Ultra quiet operation with 16 dBA under minimum fan speed.
  • Dual unique inhale-exhaust 120mm reverse fan design generates greater air flow to enhance thermal performance.
  • Vibration-absorbent gaskets decrease noise while operation.

Universal Socket Compatibility & Accessory Package

  • All-in-one back-plate design for accelerated installation
  • Universal support: Intel socket LGA 1366/1156/775 and AMD socket AM2/AM2+/AM3.
  • Superb thermal grease maximizes heat transfer
Installation

Intel Installation
Step 1 Step 2

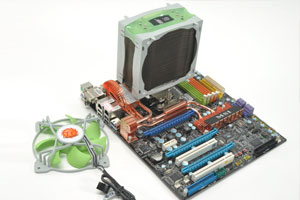

Before installing the CPU cooler onto your motherboard, you need to remove the side fans from the main body. On the picture you can see the correct pressure directions you need to apply against the retention tips. First remove the protective tape from the cooler bottom, and then use a screwdriver to attach the spring-screws to the cooler bottom.
Step 3 Step 4

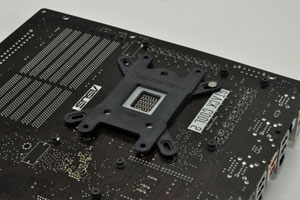

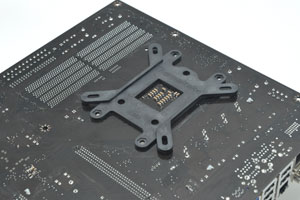

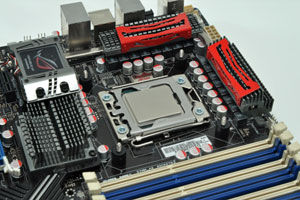

Now use the Thermaltake universal backplate and install it onto the backside of your motherboard. In the next step install the black plastic nuts from the front of the motherboard onto the screws of the backplate.
Step 5 Step 6

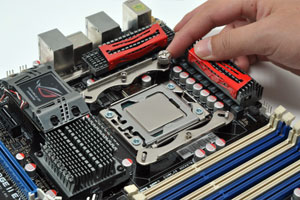

Now fix the AMD processor retention module onto the black nuts and install the metal nuts on top of the screws to fix the retention module. Its time to apply the bundled thermal paste.
Step 7 Step 8

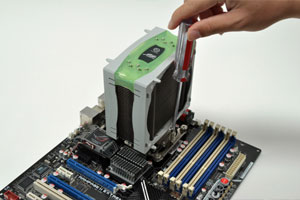

To fix the CPU cooler to the motherboard use a screw driver and install the spring screwstightly. Install the exhaust fan (with convex blades, refer to the picture) on the side opposite to the arrow on the top of the CPU cooler.
Step 9 Step 10
Your installed exhaust fan should fit like on this picture. Install the inhale fan (with concave blades, refer to the picture) on the side to direction of the arrow on top of the CPU cooler.
Step 11 Step 12

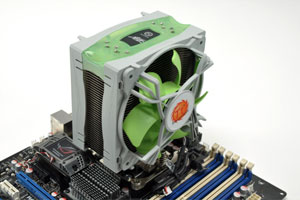

Your installed inhale fan should fit like on this picture. In the final step plug the fans power cords into the corresponding power connectors on the motherboard.

AMD Installation

Step 1 Step 2
Before installing the CPU cooler onto your motherboard, you need to remove the side fans from the main body. On the picture you can see the correct pressure directions you need to apply against the retention tips First remove the protective tape from the cooler bottom, and then use a screwdriver to attach the spring-screws to the cooler bottom.
Step 3 Step 4

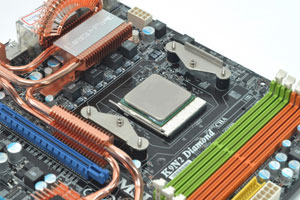

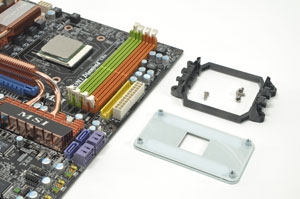

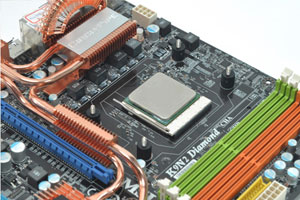

Again use a screwdriver in order to remove the pre-installed retention module and backplate from the motherboard. Now use the Thermaltake universal backplate and install it onto the backside of your motherboard.
Step 5 Step 6

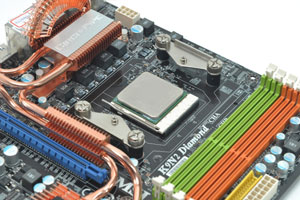

In the next step install the black plastic nuts from the front of the motherboard onto the screws of the backplate. Now fix the AMD processor retention module onto the black nuts. Then, install the metal nuts on top of the screws to fix the retention module.
Step 7 Step 8

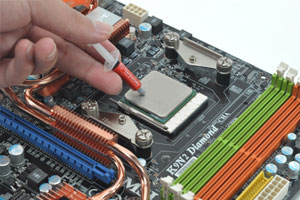

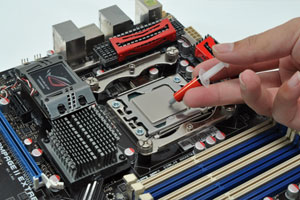

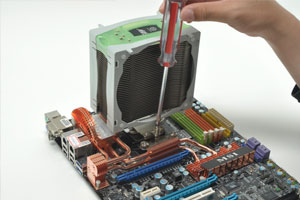

Its time to apply the bundled thermal paste on the surface of CPU. Then, fix the CPU cooler to the motherboard use a screw driver and install the spring screws tightly. Install the exhaust fan (with convex blades, refer to the picture) on the side opposite to the arrow on the top of the CPU cooler.
Step 9 Step 10

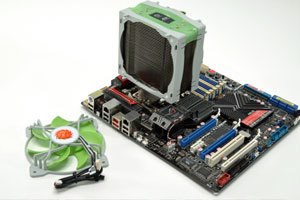

Your installed exhaust fan should fit like on this picture. Install the inhale fan (with concave blades, refer to the picture) on the side to direction of the arrow on top of the CPU cooler.
Step 11 Step 12

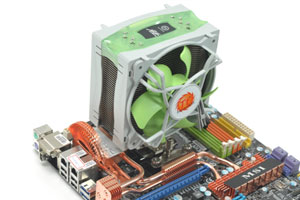

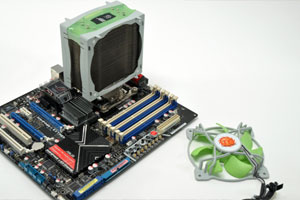

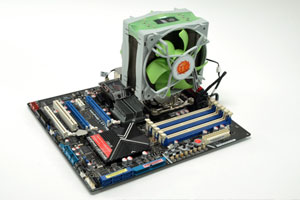

Your installed inhale fan should fit like on this picture. In the final step plug the fans power cords into the corresponding power connectors on the motherboard.

Dimension


Single Fan

Dual Fan

Smart Thermal Management System
top

Best Air Flow

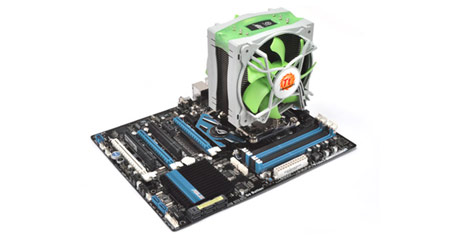

Application View

Specification

Model Jing
Compatibility LGA 1366
Core i7

LGA 1156
Core i7
Core i5
Core i3

LGA 775
Core 2 Extreme
Core 2 Quad
Core 2 Duo
Pentium D
Pentium 4
Pentium
Celeron D
Celeron

AM3
Phenom II X6
Phenom II X4
Phenom II X3
Phenom II X2

AM2+ / AM2
Phenom X4
Phenom X3
Athlon 64 FX
Athlon 64 X2
Athlon 64
Sempron
Dimension 131(L) x 123(W) x 162(H)
(with 2 Fans)
P/N CLP0574
Heatpipe 6mm x 5PCS
Rated Voltage 12 V
Rated Current 0.2A
Started Voltage 6 V
Power Input 2.4W
Fan Speed 800 ~ 1300 RPM
Max. Air Flow 42 CFM
Max. Air Pressure (air in) 0.85 mmH2O
(air out) 1.43 mmH2O
Noise 16 dBA(at 800RPM)
Life Expectation 50,000 hrs @ 40
Connector 3 Pin
Weight 920 g (with 2 Fans)



* Specifications are subject to change without notice.
* The product picture(s) is only for your reference, it may differ from the actual product.
