Socket |
|
CPU |
|
CPU Compatibility |
|
| Intel |
1156 |
Core i7 |
Supports all speeds |
| Core i5 |
| Core i3 |
| 1366 |
Core i7 Extreme |
Supports all speeds |
| Core i7 |
| 775 |
Core 2 Quad |
Supports all speeds |
| Core 2 Duo |
| Core 2 Extreme |
| Pentium Dual Core |
| Pentium D |
| Pentium 4 |
| Celeron D |
| AMD |
AM3 |
Phenom II |
Supports all speeds |
| Athlon II |
| Opteron |
| AM2+ |
Phenom II |
Supports all speeds |
| Phenom |
| Athlon FX |
| Athlon X2 |
| Athlon |
| Sempron |
| Opteron |
| AM2 |
Athlon FX |
Supports all speeds |
| Athlon X2 |
| Athlon |
| Sempron |
| Opteron |
|
| |
 |
| |
 |
| |
Dimensions
|
94(L) x 131(W) x 152(H)mm |
| Weight |
755g |
| Materials |
Pure Copper/Black-Pearl Nickel Plated |
| Dissipation Area |
5,402 |
| Fan Bearing |
Long life bearing |
| Fan RPM |
RC7P Connected |
900 ~ 1,500 rpm 10% |
| RC7P Not Connected |
900 ~ 1,700 rpm 10% |
| Noise |
RC7P Connected |
18 ~ 27 dBA 10% |
| RC7P Not Connected |
18 ~ 30 dBA 10% |
|
| |
 |
| |
| Color |
Gray |
| Capacity |
3.5g |
| Temperature Stability |
-40C ~ +150C (-40 ~ +302) |
|
| |
 |
 |

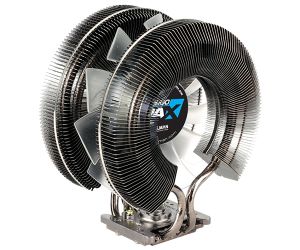

 Powerful Cooling Performance [Qmax: 300W]
Optimally designed pure copper fins effectively disperse heat away from the CPU via composite heatpipes, while the high capacity 135mm fan quickly cools the heatsink for stable operation of high performance CPUs.
CNPS9900 MAX utilizes Composite heatpipe which is 50% more effective in transferring heat compared to ordinary heatpipes.
|
| |
 |
| Ultra Quiet 135mm Blue/Red LED Fan
An ultra quiet 135mm fan is incorporated for minimized noise. The Blue / Red LEDs heighten the cool aesthetics.
|
| |
 |
Black-Pearl Nickel Plating
The entire copper heatsink of CNPS9900 MAX is Black-Pearl Nickel Plated for long-term corrosion resistance, while the deep
Black-Pearl tone along with the high intensity Blue / Red LEDs reinforce its powerful aesthetics.
|
| |
 |
PWM Fan Speed Control
The PWM(Pulse Width Modulation) Fan automatically adjusts fan speed(RPM) according to the CPUs temperature, while the included Resistor Cable(RC7P) provides the option of reducing the input voltage for overall reduction of fan speed and noise.
Quiet Mode (w/ RC7P): 900 - 1,500RPM / 18 - 27dBA 10%
Normal Mode: 900 - 1,700RPM / 18 - 30dBA 10%
|
|
High Performance Super Thermal Grease ZM-STG2
The included all new high performance thermal grease ZM-STG2 maximizes heat transfer from the CPU to the base of CNPS9900 MAX for intensified cooling performance.
|
|
| |
 |
Versatile Compatibility
CNPS9900 MAX accommodates a broad range of sockets.
Intel LGA1156 / 1366 / 775
AMD AM3 / AM2+ / AM2
|
|
|
|
| |
 |
 |
 |
| |
 Common Components |
| |
- CNPS9900 MAX
- Backplate
- Thermal Grease (ZM-STG2)
- Resistor (RC7P)
- Wrench
- Gold Bolts (Socket 1366)
- Silver Bolts (Socket 1156 / 775 / AMD)
- Nut (Slide) Caps
- Nuts
- Loading Block
- Double-Sided Tape
- Users Manual |
|
| Components for Intel Socket 1156/1366/775 |
| |
| - Intel Clip |
|
| |
|
 |
|
| |
| Component for AMD Socket AM3/AM2+/AM2 |
| |
| - AMD Clip |
|
|
|
|
| |
 |
| Zalman affixes a Computer Noise Prevention System (CNPS) mark to all components used for noiseless computers. |
| |
 |
 |
Avoid inserting objects or hands into the fan while it is in operation to prevent product damage and injuries. |
| |
 |
Do not ingest the Thermal Grease, and avoid its contact with skin and eyes. If contact is made with skin, wash off with water. If ingested or irritation persists, seek medical attention. |
| |
 |
To prevent possible injuries, gloves must be worn while handling this product. |
| |
 |
Excessive force exerted on the fan may cause damage to the fan and/ or system. |
| |
 |
Use and keep product away from the reach of children and pets. |
| |
 |
Check the components list and condition of the product before installation. If any problem is found, contact the retailer to obtain a replacement. |
| |
 |
Zalman Tech Co., Ltd. is not responsible for any damages due to overclocking. |
| |
 |
Before transportation of the system, the cooler must be removed.
Zalman is not responsible for any damages that occur during the transport of a system. |
| |
 |
Enable PWM function in BIOS settings after installation. |
| |
 |
Product design and specifications may be revised to improve quality and performance. |
| |
 |
Zalman Tech Co., Ltd. is not responsible for any damages due to external causes, including but not limited to, improper use, problems with electrical power, accident, neglect, alteration, repair, improper installation, or improper testing. |
|
