All stock codes associated to this product
PCC50B, PC-C50B, LLPCC50B, LL-PC-C50B
PC-C50
With USB3.0 / Multi-media HTPC Chassic
Features
Standard PC components
Standard Micro ATX motherboard, 5.25-inch optical drive, 3.5-inch / 2.5-inch hard drives, standard ATX PS/2 PSU. it would be easy to upgrade and server in the future.
Thermal-Flow Two of 120mm fans (right) input high air flow volume to push the cold air through the case.
USB3.0 Multi-media I/O ports
User can easily access USB3.0,e-SATA and HD Audio.
SD Card Reader
Support MS / SD(SDHC) memory card.
Case Stand
Case stand with rubber pad.

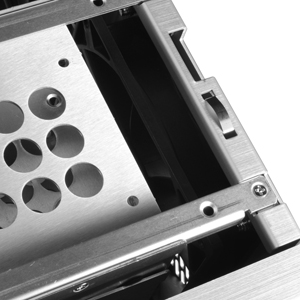

Up to 3 for 2.5-inch HDDs
Above the each HDD Cages, there is a space for 2.5-inch HDD.
3 for 3.5-inch HDDs
HDD cage using Thumb Screws with rubber suspension, support 3.5-inch HDD x 3
Fan Space
120mm and 80mm Fan space for feature upgrade.
PCI-Solts x5
There are four PCI solts, other one is require to work with a riser card. (Riser card not included )
Maximum Video Card Space
250mm
More

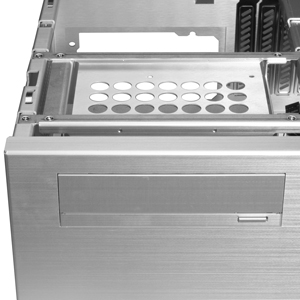

5.25-inch driver space
Anti-vibration Spring
Specification
Case Type - Desktop / HTPC
Dimensions - (W) 445mm x (H) 167mm x (D) 325mm
Front bezel Material - Aluminum
5.25" drive bay (External) - 1
3.5" drive bay (External) - None
3.5" drive bay (Internal) - 3.5-inch HDD x3 (can be convert to 2.5-inch x 3) & 2.5-inch HDD (9.5mm thick) x3
Motherboard - Micro ATX / Mini DTX / Mini ITX
System Fan (Front) - None
I/O Ports - USB3.0 x 3 / HD Audio / e-SATA / MS/SD Card Reader
Maximum Video Card Size - 250mm
Package Dimensions - (W) mm x (H) mm x (D) mm
System Fan (Side) - 120mm Fan x 2
PSU Type - ATX ( PSU not included )
