IMG 1 of 5
No Longer Available

Part Number:
159436
(?) Brand:
Manuf No:
880GM-E41
880GME41
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
All stock codes associated to this product
880GME41, 880GM-E41

Auto OC Genie

  • Best overclocking capability
    Auto-BIOS detection offers the best overclocking configuration
    Optimized for best system performance.

    Advantages:
    OC Genie enabled, CPU performance 26% up
    Increase 148% CPU performance by OC Genie + Unlock CPU Core


Unlock CPU Core

  • Boost system performance(*Result may vary according to different CPU core quality and stability.)
    Help user to unlock hidden CPU Core quickly Freely choose lock or unlock CPU Core(s) Easy to upgrade system performance
    Specially support 4-core to 6-core CPU unlock

    Advantages:
    2 core to 4 core, boost CPU performance 104% up
    Unlock CPU Core + OC Genie save up to USD$90


Features

Military Class Components(2)
Military Class series products feature top components that offers users the best experience for its unparalleled quality, ultimate efficiency, and the cool & noiseless and safety for its unbeatable stability.
Auto OC Genie
Best overclocking capability
Auto-BIOS detection offers the best overclocking configuration
OC Genie enabled, CPU performance 26% up
Increase 148% CPU performance by OC Genie + Unlock CPU Core

Unlock CPU Core
Help user to unlock hidden CPU Core quickly
Freely choose lock or unlock CPU Core(s)
Easy to upgrade system performance
Boost CPU performance 104% up
APS (Active Phase Switching)
APS is Active Phase Switching is complete function to Control Power Demand With Switcing Dynamically, its for CPU.
Saving Power under Variable Loading.
Power Usage More Efficiency.

i-Charger
Universal charger utility for Apple iPad, iPhone, iPod
Compatible with all MSI Mainboards
USB Safeguard
With the ESD dual-current protection chip, USB Safeguard can ideally protect your motherboard from the potential damage caused by static electricity when inserting USB devices.

M-Flash
Faster and Flexible and instant
If BIOS crash, it still can boot from USB Drive
Update BIOS from USB Drive by M-Flash Fucntion
Easy OC Switch
Help end-users upgrade CPU FSB directly.
Buy an essential CPU but want to reach higher performance.
Skip the complicated BIOS OC setting and enjoy the higher level CPU performance.

MSI Advanced Live Update Online
The MSI Live Update online is designed to automatically download and update the BIOS and driver when theres a new version online. It helps reduce the risk of getting the wrong file and minimize the trouble of searching the files from MSI website.
live_update_4
Live Update 4 is a single utility software that automatically checks BIOS, driver and utility updates and installs for you , which can save your time for searching and lower the risk while updating.

Cool'n'quiet
AMD Cool'n'Quiet technology that based on famous PowerNow technology just brings fresh air to hot-fighting desktop platform. Cool'n'Quiet technology can automatically adjust processor ratio to throttle CPU speed with four modes.


Specifications




CPU

64bit AMD  Phenom II X6/X4/X3/X2, Athlon II X4/X3/X2 and Sempron CPU.
Please refer to CPU Support for compatible CPU; the above description is for reference only.

Hyper Transport Bus

HyperTransport 3.0 supporting speed up to 5200MT/s

Chipset

AMD 880G and SB710 Chipset





Main Memory


Supports four unbuffered DIMM of 1.5 Volt DDR3 800/1066/1333/1600*/1800*/2000*/2133* (OC)DRAM, 16GB Max




Slots

1 PCI Expressx16 slot with x16 operation (PCI Express Bus SPEC V2.0 compliant)
2 PCI EXpress x1slots
1 PCI slot, support 3.3V/ 5V PCI bus Interface.




On-Board IDE


One IDE port by AMD SB710
- Supports Ultra DMA 66/100/133 mode
- Supports PIO, Bus Master operation mode
- Can connect up to two IDE devices

On-Board SATA

6 SATA II (1~6) ports by AMD SB710
- Supports storage and data transfers at up to 3Gb/s

RAID Function

- SATA II 1~6 support RAID 0,0+1,JBOD mode by AMD SB710




Audio

Chipset integrated by VIAVT1828S
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec




LAN

Atheros PCI-E GbLAN controller AR8131M
- Supports 10Mb/s, 100Mb/s and 1000Mb/s
- Compliance with PCI-Express Bus specification v1.0a




Internal I/O Connectors

- 1 x ATX 24-pin power connector
- 1 x ATX 4-pin 12V CPU power connector
- CPU x 1 / System x1 FAN connectors
- 1 x Front panel audio connector
- 1 x Front panel connector
- 1 x Chassis intrusion switch connector
-3 x USB 2.0 connectors
-6 x Serial ATA II connectors
- 1 x ATA133 HD connector
- 1 x Serial port connector
- 1 x Parallel port connector
- 1 x OC Switch
- 1 x Clear CMOSjumper
- 1 x SPDIF-outconnector
- 1 x TPM module connector

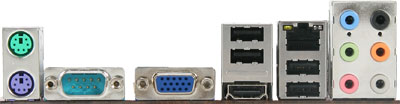

Back Panel I/O Ports

- 1 x PS/2 keyboard
- 1 xPS/2 mouse
- 1 x Serial port
- 1 x Graphic Card port
-4 x USB 2.0 ports
- 1 x HDMI port
- 1 x RJ45 LAN jack
- 1 x 6 in 1 audio jack








Dimension

24.4cm(L) x 22.0cm(W) Micro-ATX Form Factor

Mounting

6 mounting holes.





Product Accessories


Specifications

Socket AM3
CPU (Max Support) Phenom II
AM3 CPU Ready Y
FSB / Hyper Transport Bus up to 5200MT/s
Chipset AMD 880G+SB710
DDR2 Memory N/A
DDR3 Memory DDR3 800/1066/1333/1600*/1800*/2000*/2133*(OC)
Memory Channel Dual
DIMM Slots 4
Max Memory (GB) 16
PCI-Ex16 1
PCI-E Gen Gen2 (1x16)
PCI-Ex4 N/A
PCI-Ex1 2
PCI 1
IDE 1
SATAIII N/A
SATAII 6
RAID 0/0+1/JBOD
LAN 10/100/1000*1
TPM 1
USB 3.0 ports (Rear) N/A
USB 2.0 ports (Rear) 4
Audio ports (Rear) 6
Serial ports (Rear) 1
Parallel ports (Rear) N/A
1394 ports (Rear) N/A
eSATA N/A
Display Port N/A
VGA 1
HDMI 1
DVI N/A
VGA Max Share Memory (MB) 512
DirectX DX10.1
Form Factor M-ATX
DrMOS N/A
APS Y
Sideport Memory N/A
SLI N/A
3-way SLI N/A
Hybrid SLI N/A
CrossFire N/A
Hybrid CrossFire N/A
D-LED2 N/A
Green Power Genie N/A
