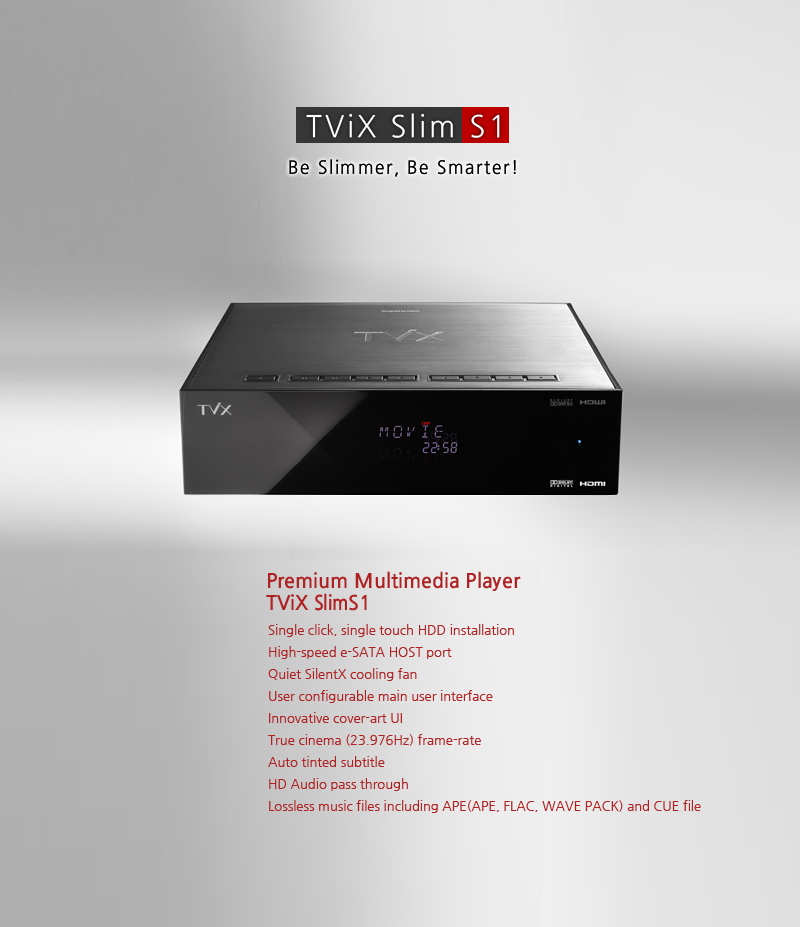

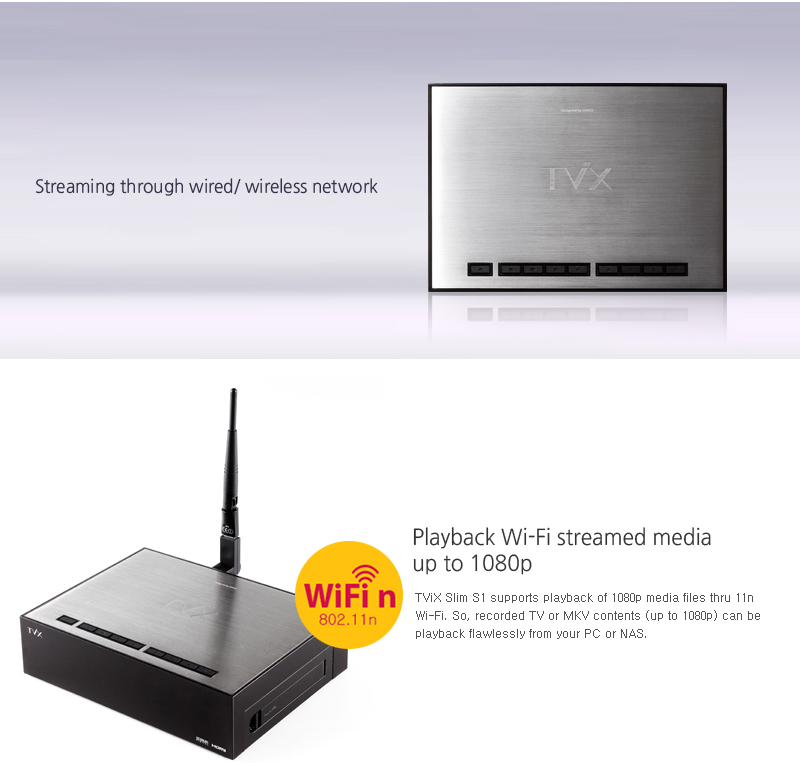

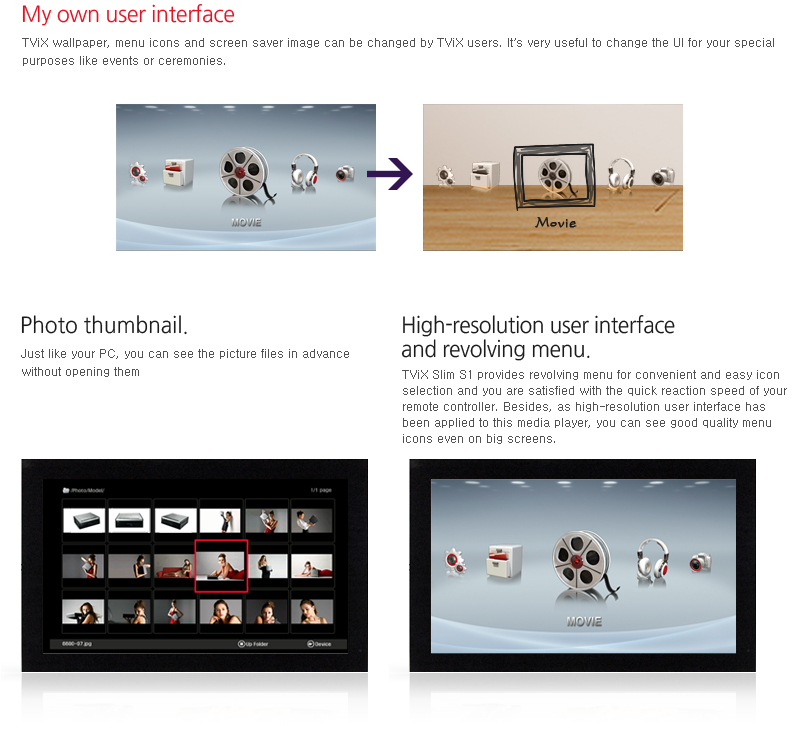

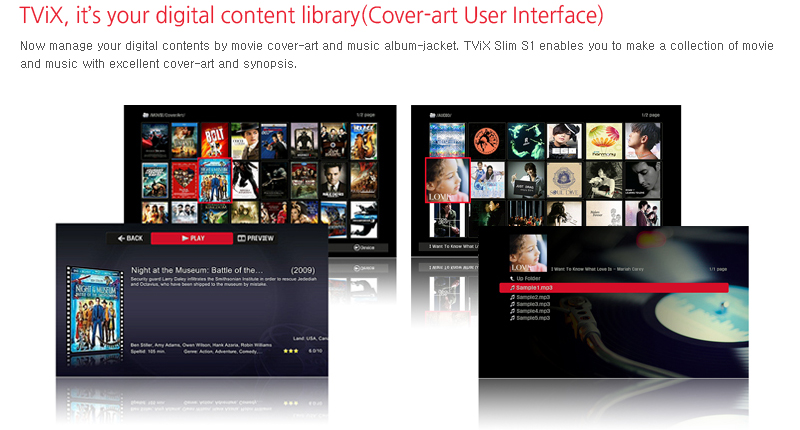

It allows you to enjoy the newest Full HD videos and oncoming audios. Moreover, on top of the lossless music files playback ability, it is the most advanced multimedia player that also allows you to search digital pictures as thumbnails and view them as a slideshow. With its wireless LAN and network support, this capability is expanded to your local network and internet.(Wi-Fi: Optional)

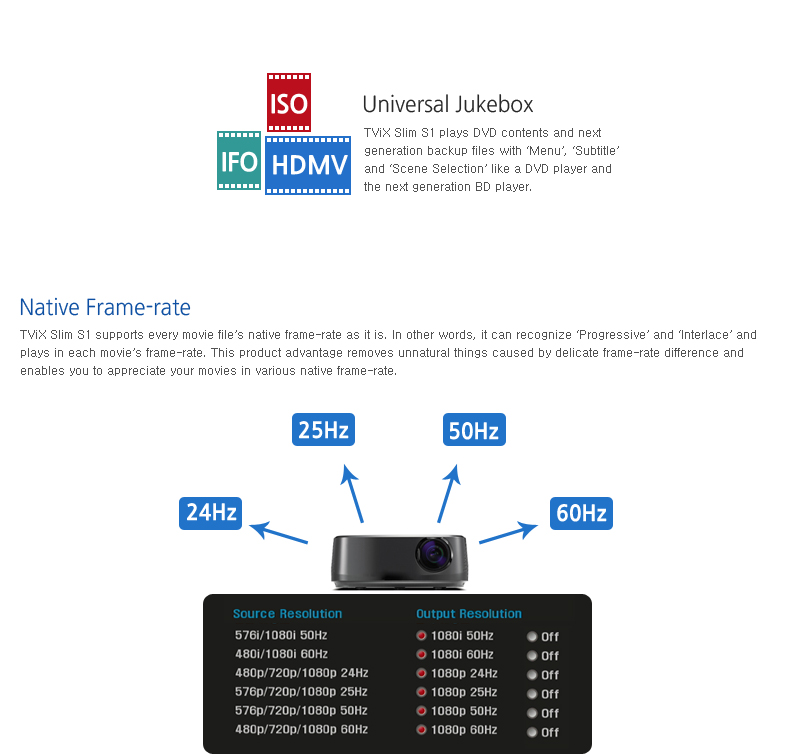

By supporting superb H264 video compression & MKV container format, you can enjoy full HD videos. On top of this, oncoming HD media backup files as well as DVD backup files are supported. It functions as a universal jukebox that allows you to enjoy videos and music of ultimate quality through full HD picture and next generation HD audio output. It can also playback todays high-res photos and lossless music files.

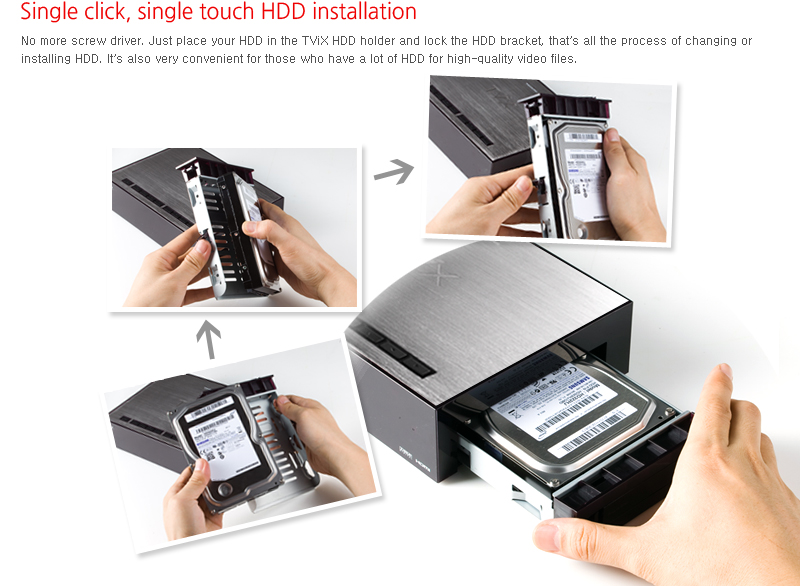

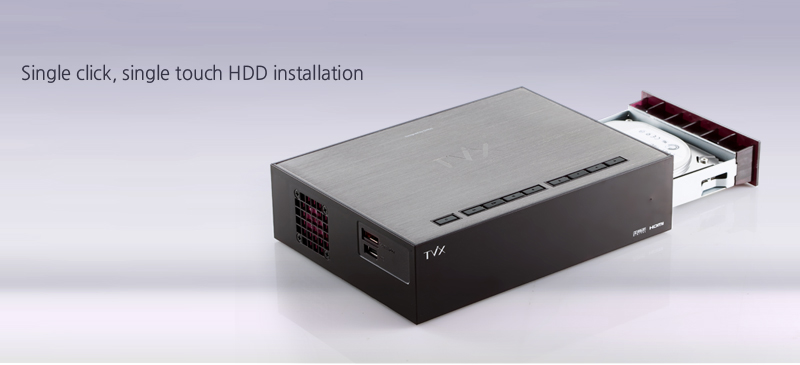

HDD installation is possible to do without using any screws. Simple and easy to equip HDD with one click, and once fixed in the HDD holder can be mounted on the body of the touch. Much of the hard disk holds is very convenient for heavy users.
Main Chipset
Memory
Main: 256MB DDR SDRAM / Flash: 128MB
Maximum Resolution
Video Format (Containers)
MKV, AVI, VOB
ASF, WMV
MPEG1/2/4 Elementary
MPEG1/2 PS: M2P, MPG
MPEG2 Transport Stream: TS, TP, TRP, M2TS, MTS, MOD, TOD
ISO, IFO
MOV (H.264), MP4
.MKV, .mpg, .avi, .wmv, .divx, .vob, .tp, .ts, .trp, .dat, .iso, .ifo, .m2ts, .mov, .flv, .rm, .rmvb, .asf, .mts, .mpeg
Video Codec
XVID SD/HD
MPEG 1
MPEG-2 (MP@HL)
MPEG-4.2 (ASP@L5, 720p, 1-point GMC)
WMV9 (MP@HL),
H.264 (BP@L3, [email protected])
VC-1 (MP@HL, AP@L3)
RealVideo 8/9/10
FLV(H.263)
Audio Format (Container)
AAC, M4A
MPEG audio (MP1, MP2, MP3, MPA),
APE, PCM, AC3, FLAC (Audio track in MKV)
WAV(DTS), WAVPACK, WMA (Lossless not supported)
Ogg
Audio Codec
Dolby Digital
DTS Down Maxing
WMA, WMA Pro
APE, FLAC, WAV, MP1, MP2, MP3, M4A, LPCM, Ogg Vorbis, aif, aiff
Audio Pass-thru
DTS, Dolby Digital, Dolby True HD, Dolby Digital Plus
Photo Image
JPG, JPEG, BMP, PNG, GIF, TIF
Languages
English, Traditional Chinese, Japanese, Spanish, French, Germany, Italian, Korean, Nederlands, Russian, Rumanian, Czech, Arabic, Vietnamese, Bulgarian, Hebrew, Swedish, Greek, Turkish, Polish, Portuguese, Croatian, Thai

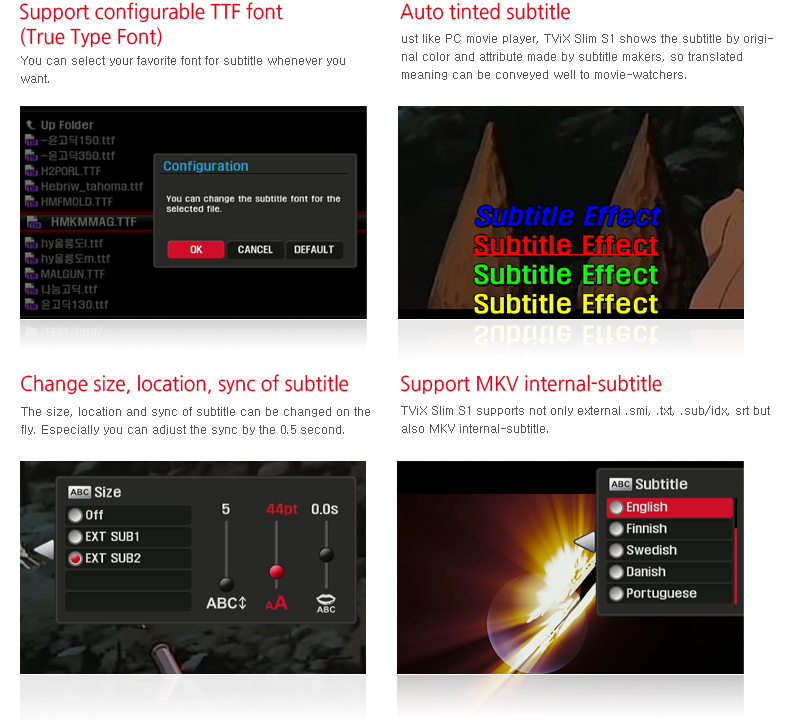

Subtitles
smi, smil, sub, sub/idx, srt, .ssa, .ass, MKV embedded subtitle

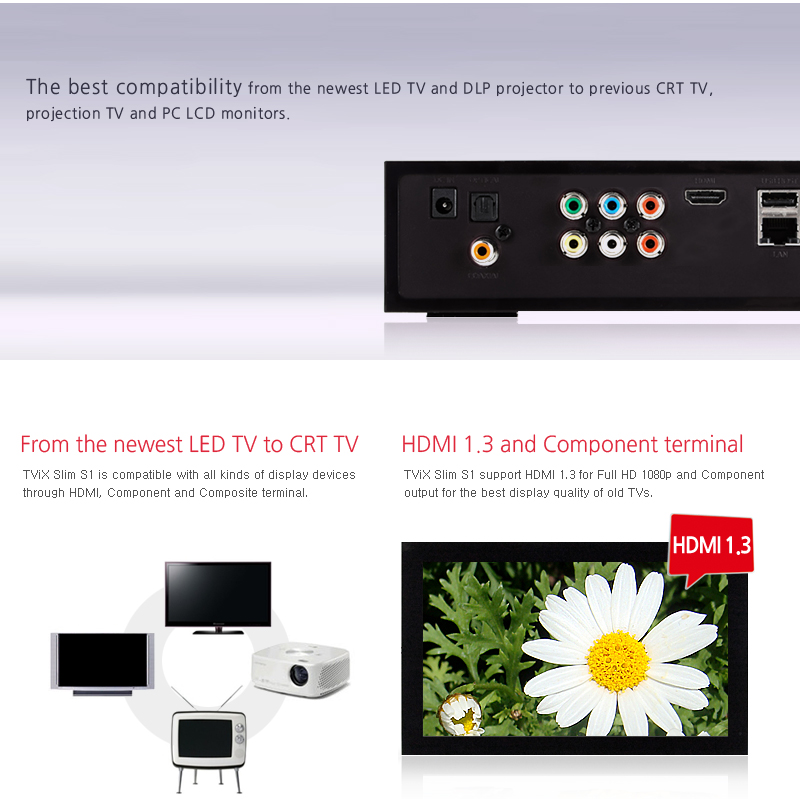

Video / Audio Output
HDMI 1.3a (Video 24 bit), Component, Composite
Digital: Coaxial, Optical
Analog: Stereo
HDD Supported
NTFS, FAT32 (3.5 SATA , HDD)

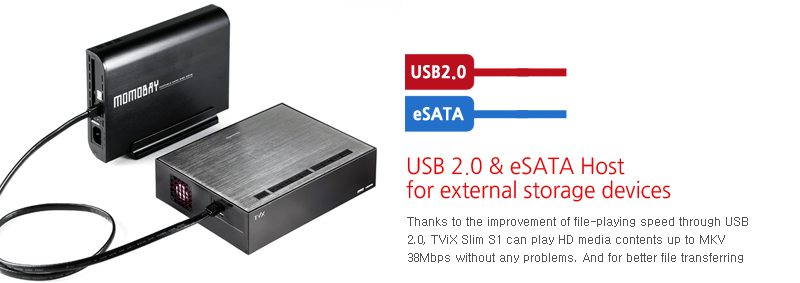

Interface
USB 2.0 Host 2 Ports ( USB1/USB2 : 5V , 500 mA max), USB 2.0 Target 1 Port
1 port e-SATA HOST
Network
10/100 Ethernet

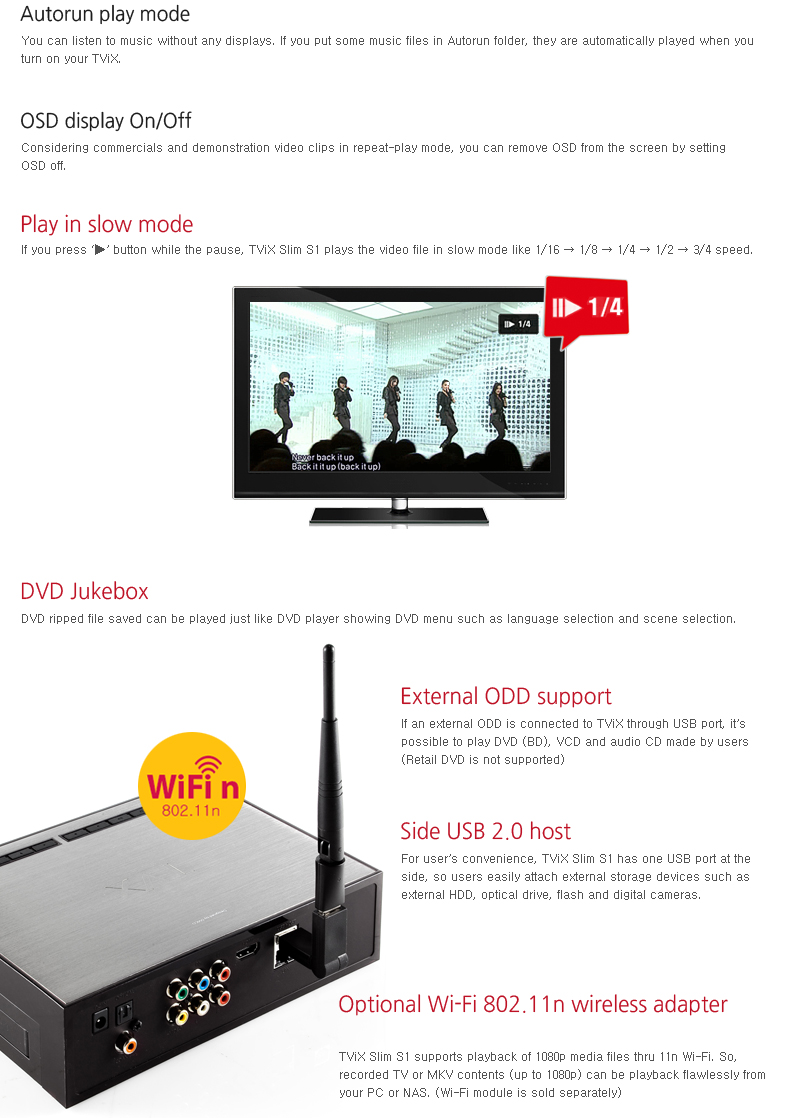

Wi-Fi 802.11n(optional)
Network Protocol
UPnP, SAMBA Client, NFS (with Net-Share)
SAMBA server , FTP

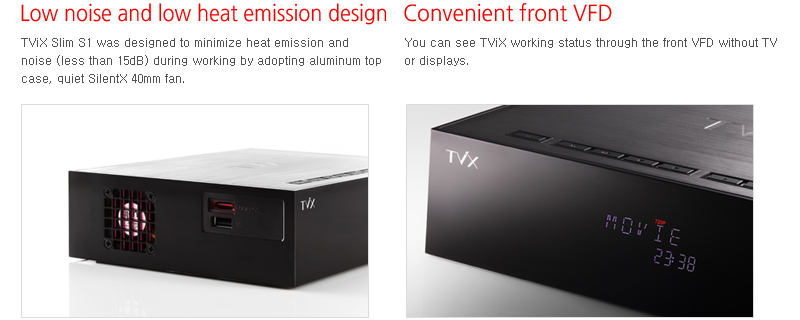

Cooling Fan
Internal temperature sensing mechanism, 40mm low noise
VFD Display
Playback mode, Elapsed time, Resolution (Dot Matrix 7 English characters and numbers)
POWER CONSUMPTION
Dimension
Weight
Caution
- HDD is not included.
- Some streaming couldnt play according to wireless setup environment.
- ASF, WMV (WMV9 only but Advance Profile is not supported), WMV7, WMV8 are not supported.
- MPEG4, XVID-GMC are not supported.
- 2 Channel Down Mix without external decoder amplifier.
- Some files might not be played even if the file format is correct and the codec are supported.
- For more detailed information, please visit the supported codec section in FAQ before you purchase the product
