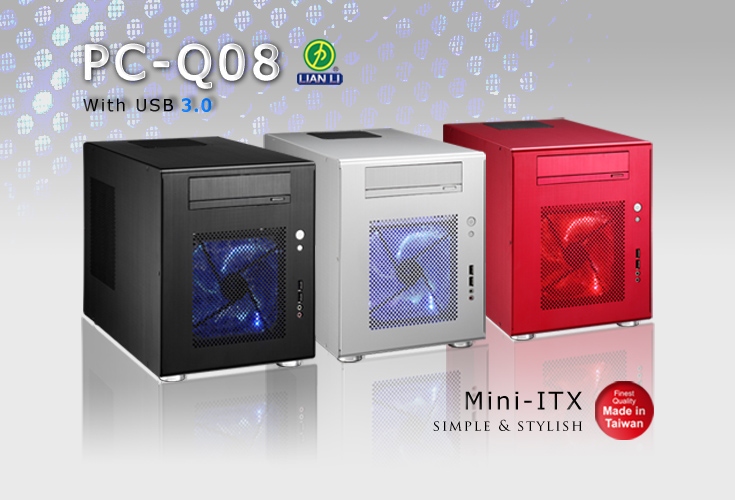

Lian Li PC-Q08R Mini-Tower Case - NO PSU, Red
  • 2xUSB3.0, 1xHD-Audio, 1x120mm Fan, Aluminum, HTPC Chassis, Mini-ITX

IMG 1 of 1
No Longer Available
Part Number:
162638
(?) Brand:
Lian Li Web Site
Manuf No:
PC-Q08R
PCQ08R
Shipping Weight:
8 KG (Includes product packaging)
Estimate Shipping
Details Reviews Files Images & Video
All stock codes associated to this product
PCQ08R, PC-Q08R, LLPCQ08R, LL-PC-Q08R

Feature

Features
Standard PC components
Standard Mini-ITX motherboard, 5.25-inch optical drive, 3.5-inch / 2.5-inch hard drives, standard ATX PS/2 PSU. Easy to upgrade and service.
USB3.0 Multi-media I/O ports Case stand Two PCI Slots
Users can easily access the USB3.0 and HD Audio ports. Four aluminum pegs to increase airflow beneath the case. Full Size PCI Slots.
Thermal-Flow
One 140mm LED fan (front) and one 120mm fan (top) keep hot air from damaging your hardware.
Six 3.5-inch and One 2.5-inch HDDs
The Mini-Q PC-Q08 supports six 3.5-inch and one 2.5-inch HDDs, held in place by thumb screws with rubber suspension.
Standard ATX PS/2 PSU
Supports a standard ATX PS/2 PSU with a 120mm cooling fan.

Maximum Video Card Size
300mm (when HDD cage is removed)




Specifications

Model - PC-Q08


Case Type - Mini Tower


Dimensions - (W) 227mm x (H) 272mm x (D) 345mm


Front bezel Material - Aluminum


Color - Black / Silver / Red


Side Panel - Aluminum


Body Material - Aluminum


Net Weight - 2.73KG


5.25" drive bay (External) - 1


3.5" drive bay (External) - none


3.5" drive bay (Internal) - 6


Expansion Slot - 2


Motherboard - Mini-ITX / Mini-DTX

System Fan (Front) - Black, Silver / 140mm Blue LED Fan x 1, Red / 140mm Red LED Fan x 1


System Fan (Top) - Black, Silver / 120mm Fan x 1, Red / 120mm Red LED Fan x 1


System Fan (Rear) - none


I/O Ports - USB3.0 x 2 / HD Audio

2.5" drive bay (Internal) - 1


Maximum Video Card Size - 300mm


Package Dimensions - (W) mm x (H) mm x (D) mm


Gross Weight - KG

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Lian Li) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.

Visitor Reviews

Average Visitor Review:
Number of Reviews Found: ( / 5 )

Reviewd By: Alex
Visitors Age: 36
Visitors Rating:

Great chassis for a specific purpose

I wanted a chassis that could be both small and contain 6 hard disk drives for a server/nas at home. There really were just two options on the market in the m-ITX form factor that were around this size. Lian-Li cases arent cheap and that is why Im picking on noise as a negative for this case. It isnt the 6 drives that are making the noise, and the motherboard and cpu have no active cooling components and are completely noiseless. All the rattles and noise come from the two system fans and power supply. The noise comes from the rattle of metal on metal contact, rather than the spin of the fans, so I am sure a couple of rubber mounts will fix that. That should be easy enough to fix, but its something I just expect a case around the $200 mark to already have (it does have hdd grommets). Aside from that, the machine is running on a low power cpu/motherboard with all 6 drive bays populated. The biggest unexpected plus is that the hard disks are reporting a 10C lower temperature than they did in the previous case, which only contained 4 drives. So plus points, which outweight the slightly annoying rattle by far, are: 1) excellent cooling, 2) looks great in red rather than the rather boring beige/black, 3) plenty of space to work in, and 4) compact... really compact.
