Noctua NH-C14 CPU Cooler - Intel LGA1366/LGA1156/LGA1155/LGA775, AMD AM2, AM2+, AM3, 140x140x25mm, 120x120x25mm Fan, 1200rpm, 19.6dBA

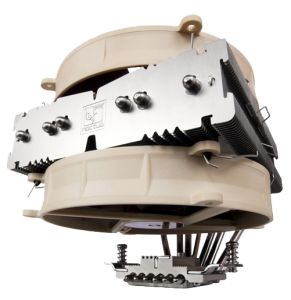

IMG 1 of 5
No Longer Available
Part Number:
162656
(?) Brand:
Noctua Web Site
Manuf No:
NH-C14
NHC14
Shipping Weight:
2.5 KG (Includes product packaging)
Estimate Shipping
Date Added:
19/1/2011
Details Reviews Files Images & Video
All stock codes associated to this product
NHC14, NH-C14
Noctua - Bild

The NH-C14 brings top-flow cooling to a new level by offering an exquisite, uniquely flexible 140mm dual fan setup: The two supplied NF-P14 premium fans can be installed on top and underneath the fin-stack to configure the cooler for maximum performance in dual fan mode and either lower profile (105mm) or maximum component clearance in single fan modes. Bundled with the award-winning NT-H1 thermal compound and Noctuas SecuFirm2 multi-socket mounting system, the NH-C14 is a highly flexible, premium-class top-flow solution that further boosts the renowned quiet cooling performance of the much acclaimed NH-C12P series.

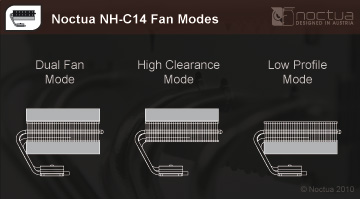

NH-C14 Fan Modes


c_type C-Type top-flow design
The NH-C14s six heatpipe c-type design allows for superb quiet cooling performance while maintaining a much lower profile than todays tower-style coolers and providing excellent airflow over RAM modules and near-socket mainboard components.
p14 Dual NF-P14 FLX fans
The NH-C14 comes with two of Noctuas award-winning, premium quality NF-P14 140mm fans that can be fine-tuned according to the users needs via the supplied Low-Noise (L.N.A.) and Ultra-Low-Noise Adaptors (U.L.N.A.).
low Low Profile Mode
Run with a single NF-P14 fan underneath the fin stack and with the top fan removed, the NH-C14 measures only 105mm in height, which makes it ideal for use in smaller enclosures and HTPC applications.
clearance High Clearance Mode
The lower NF-P14 fan can be removed in order to provide additional clearance for chipset coolers or RAM modules with tall heat-spreaders. Run with a single fan on top, the NH-C14 provides a full 65mm of clearance.
SECUFIRM SecuFirm2 multi-socket mounting system
Noctuas enthusiast grade SecuFirm2 multi-socket mounting provides broad socket compatibility (LGA1366, LGA1156, LGA1155, LGA775, AM2, AM2+ and AM3) and meets the highest demands in safety, performance and ease-of-use.
NT-H1 Noctua NT-H1 high-end thermal compound
Noctua's much-acclaimed NT-H1 is a well proven pro-grade TIM solution that provides minimum thermal resistance, excellent ease-of-use and outstanding reliability.

Socket compatibility   Intel LGA1366, LGA1156, LGA1155, LGA775 & AMD AM2, AM2+, AM3 (backplate required)



Height (without fan)   105 mm



Width (without fan)   140 mm



Depth (without fan)   166 mm



Height (with fan)   130 mm



Width (with fan)   140 mm



Depth (with fan)   166 mm



Weight (without fan)   700 g



Weight (with fan)   850/1000* g



Material   Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating



Fan compatibility   140x140x25mm / 120x120x25mm



Scope of Delivery
  • 2x NF-P14 premium fan
  • Low-Noise Adaptor (L.N.A.)
  • Ultra-Low-Noise Adaptor (U.L.N.A.)
  • NT-H1 high-grade thermal compound
  • SecuFirm2 Mounting Kits
  • Noctua Metal Case-Badge
    		•



    Warranty   6 Years





    Fan specifications



    Model   Noctua NF-P14



    Bearing   SSO-Bearing



    Rotational Speed (+/- 10%)   1200 RPM



    Rotational Speed with L.N.A. (+/- 10%)   900 RPM



    Rotational Speed with U.L.N.A. (+/- 10%)   750 RPM



    Airflow   110,3 m/h



    Airflow with L.N.A.   83,7 m/h



    Airflow with U.L.N.A.   71,2 m/h



    Acoustical Noise   19,6 dB(A)



    Acoustical Noise with L.N.A.   13,2 dB(A)



    Acoustical Noise with U.L.N.A.   10,1 dB(A)



    Input Power   1,2 W



    Voltage Range   12 V



    MTBF   > 150.000 h

    * with 2 fans

    No additional files, specification sheets, guides or documentation found for product.

    Warranty: 1 Year Return to Base

    Full manufacturers warranty details are available at the manufacturers (Noctua) web site.

    Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

    To apply for return of a product just go to our returns page.

    These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.

    Visitor Reviews

    Average Visitor Review:
    Number of Reviews Found: ( / 5 )

    Reviewd By: LordBazaar
    Visitors Age: 14
    Visitors Rating:

    Excellent!!!

    Keeps temperatures low despite its small size compared to other CPU coolers! Perfect. Reduced CPU temp by 20 degrees C. Replaced the stock i7 cooler.
