Synology DS1511+ High End Network Storage Device
  • 5x3.5"SATA HDD, RAID 0,1,5,5+S,6,10,JBOD, 4xUSB2.0, 2xeSATA, 2xGigLAN

IMG 1 of 5
No Longer Available
Part Number:
163102
(?) Brand:
Synology Web Site
Manuf No:
DS1511+
Shipping Weight:
8 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
DS1511+

DS1511+
High Performance NAS Server Scales up to 15 Drives for SMB Users

Synology  DiskStation DS1511+ offers a high-performance, scalable, and full-featured network attached storage solution that meets the needs of small and medium-sized businesses that require an efficient way to centralize data protection, simplify data management, and rapidly scale storage capacity with minimal time spent on setup and management. The Synology DS1511+ is backed with Synologys 3-year limited warranty.

  • 165.91 MB/sec Writing, 197.8 MB/sec Reading1
  • Windows  ADS and ACL support
  • iSCSI Support as Virtualization Solution
  • Scale up to 15 Drives with Synology DX5102
  • Expandable RAM Size (up to 3GB)
  • 2 LAN with Failover and Link Aggregation Support
  • Hot-swappable Hard Drive Design

High Performance, High Data Availability

With the Link Aggregation enabled, Synology DS1511+ delivers an average 165.91 MB/sec writing speed under RAID 5 configuration in a Windows environment, and 197.8 MB/sec reading. The 2 LAN with failover support and hot-swappable drives will ensure continual service uptime should the drives need replacement or the unexpected LAN failure. Businesses need a strong foundation to face mission-critical tasks so the Synology DS1511+ delivers high-performance with high data availability ensuring access when its needed.

Fit to Business Environment

Windows ADS integration allows the Synology DS1511+ to quickly and easily fit in an existing business network environment with no need to recreate users accounts on the Synology DS1511+. The User Home feature minimizes the administrators effort in creating a private shared folder for a large amount of users.

Windows ACL support on DS1511+ provides much finer-grained access control and efficient privilege settings, allowing IT staffs to set up privileges to files and folders on DS1511+ through their familiar Windows user interface. The privileges set on Windows ACL will be applied to all access entries, including AFP, FTP, File Station, NFS and WebDAV. The secure privilege offers IT staff peace of mind, no worries about any loopholes.

iSCSI and Virtualization Ready

With the iSCSI support in DSM 3.0, the Synology DS1511+ provides a seamless storage solution for virtualization servers, such as VMware, Hyper-V, and Citrix. It is the ideal alternative to SAN solution for businesses. Affordable and cost-effective, iSCSI allows SMB users to consolidate storage into data center storage arrays while providing hosts with the illusion of locally-attached disks.

Robust & Affordable Scalability Up to 45 TB

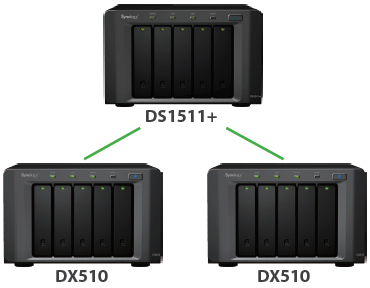

When the storage capacity of the Synology DS1511+ is nearing its limits, it can easily be expanded by the Synology DX5103. The Synology DX510 securely connects to the Synology DS1511+ via an eSATA cable of specially-designed connectors on both ends to ensure maximum throughput. The Synology DX510 can directly expand the existing storage on the Synology DS1511+ to a maximum 45 TB capacity.

Full-featured Business Applications

The Synology DS1511+ runs on the renowned operating system, Synology DSM 3.0, offering comprehensive applications and features designed specifically for SMBs. Comprehensive network protocol support assures seamless file sharing across Windows, Mac, and Linux platforms.

Internet file access is simplified by the encrypted FTP server and the web-based file explorer, Synology File Station. HTTPS, firewall, and IP auto-block support ensure file sharing over the Internet is protected at a high security level.

A wealth of additional features allows the Synology DS1511+ to replace several pieces of network hardware. Synology Web Station with support for PHP/MySQL content allows for the hosting of up to 30 websites on a single Synology DS1511+. Synology Surveillance Station offers a centralized interface to safeguard the office environments by deploying IP cameras throughout the network. The Mail Station add-on turns a Synology DS1511+ into a mail server with only few steps of installation and the USB printer sharing capability minimizes businesses printing cost by sharing printing resources throughout the office.

Energy Efficient Design

Synology DiskStations are designed and developed with energy efficiency in mind. Compared with the average PC counterparts, Synology DiskStations consume a relatively low amount of power and have the hard drives hibernate when not in use.

All Synology products are produced with RoHS compliant parts and packed with recyclable packing materials. Synology acknowledges the responsibility as a global citizen to continually work to reduce the environmental impact of every product produced.

___
1. With Link Aggregation enabled. The performance figures could vary on different environments.
2. Purchase separately.
3. DS1511+ supports up to 2 Synology DX510.

Hardware

  • CPU Frequency: 1.8GHz, Dual Core
  • Floating Point
  • Memory: DDR2 1GB4
  • Internal HDD5: 3.5" or 2.5" SATA(II) X5
  • Max Internal Capacity: 15TB (5x 3TB hard drives)7(See All Supported HDD)
  • Hot Swappable HDD
  • External HDD Interface: USB 2.0 port X4, eSATA port X2
  • Size (HxWxD): 157mm X 248mm X 233mm
  • Weight: 4.25kg
  • LAN: Gigabit X2
  • Wireless Support
  • Fan: X2(80mmX80mm)
  • Wake on LAN/WAN
  • Noise Level625.8dB(A)
  • Power Recovery
  • AC Input Power Voltage: 100V to 240V
  • Power Frequency: 50Hz to 60Hz, Single Phase
  • Power Consumption8: 68W(Access); 30W(HDD Hibernation)
  • Operating Temperature: 5C to 35C (40F to 95F)
  • Storage Temperature: -10C to 70C (15F to 155F)
  • Relative Humidity: 5% to 95%RH
  • Maximum Operating Altitude: 10,000 feet
  • Certification: FCC Class B, CE Class B, BSMI Class B

Applications

File Browser

File Station

FTP Server

  • Bandwidth Control
  • Custom FTP Passive Port Range
  • Anonymous FTP
  • Transfer Log

Web Station

  • Virtual Host (up to 30 websites)
  • PHP/MySQL
  • Alternative HTTP Error Page
  • 3rd-Party Applications Support

Surveillance Station

  • Default IP cam #: 1
  • MAX IP cam # (licenses required): 209
    (See All Supported IP Cameras)
  • Recording ModesManual, Continuous, Motion Detection, Alarm, Motion Detection and Alarm
  • Event PlaybackSync Mode (4 Channels), Time Slicing Mode
  • Centralized Management
  • Compression FormatsMJPEG, MPEG-4, H.264

Photo Station

  • Supported Image Format: BMP, JPG (jpe, jpeg), GIF, RAW (arw, srf, sr2, dcr, k25, kdc, cr2, crw, nef, mrw, ptx, pef, raf, 3fr, erf, mef, mos, orf, rw2, dng, x3f)
  • Supported Video Format10: 3G2, 3GP, ASF, AVI, DAT, DivX, FLV, M4V, MOV, MP4, MPEG, MPG, QT, WMV, XviD, RM, RMVB, VOB, RV30, RV40, AC3, AMR, WMA3

Download Station

  • Supported Download Protocols: BT/HTTP/FTP/NZB/eMule
  • Custom BitTorrent Port Range
  • BitTorrent / eMule Bandwidth Control

Audio Station

  • Supported Audio Format: (USB Mode) AAC, FLAC, M4A, MP3, Ogg Vorbis, WMA, WMA VBR; (Streaming Mode) MP3, M4A, M4B
  • Supported Playlist Format: M3U, WPL
  • Internet Radio: SHOUTcast, Radioio

DLNA/UPnP Media Server

  • PS3/Xbox 360 Support
  • Supported Audio Format: AAC, FLAC, M4A, MP3, Ogg, Vorbis, PCM, WAV, WMA, WMA VBR, WMA PRO, WMA Lossless
  • Supported Video Format:3GP, 3G2, ASF, AVI, DAT, DivX, DVR-MS, ISO, M2T, M2TS, M4V, MKV, MP4, MPEG1, MPEG2, MPEG4, MTS, MOV, QT, SWF, TP, TRP, TS, VOB, WMV, XviD, RV30, RV40, AC3, AMR, WMA3
  • Supported Image Format: BMP, JPG (jpe, jpeg), GIF, ICO, PNG, PSD, TIF (tiff), UFO, RAW (arw, srf, sr2, dcr, k25, kdc, cr2, crw, nef, mrw, ptx, pef, raf, 3fr, erf, mef, mos, orf, rw2, dng, x3f)
  • Supported Subtitles Format: srt, psb, smi, ass, ssa, sub, idx, ifo

iTunes Server

  • Supported Audio Format: MP3, M4A, M4P, WAV, AIF
  • Supported Video Format: M4V, MOV, MP4
  • Supported Playlist Format: M3U, WPL

Printer Server

  • Max Printer #: 2
  • Printing Protocols: LPR, CIFS, AppleTalk

Synology Packages

  • Squeezebox Server
  • Mail Station
  • Webalizer
  • phpMyAdmin
  • Time Backupbeta

    HASP

iPhone/Android Applications

  • DS photo+
  • DS audio
  • DS cam

General Specifications

Networking Protocols

  • CIFS
  • AFP
  • FTP
  • WebDAV
  • iSCSI
  • Telnet
  • SSH
  • NFS
  • SNMP

File System

  • EXT4
  • EXT3 (External Disk Only)
  • FAT32 (External Disk Only)
  • NTFS (External Disk Only)

Volume Management

  • Synology Hybrid RAID
  • Max iSCSI Target32
  • Max iSCSI LUN256
  • Volume Type: Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 5+Spare, RAID 6, RAID 10
  • RAID Migration: from Basic to RAID 1, Basic to RAID 5, Basic to RAID 5+Spare, RAID 1 to RAID 5, RAID 1 to RAID 5+Spare, RAID 5 to RAID 5+Spare, RAID 5 to RAID 6
  • Expand RAID 1, RAID 5, RAID 5+Spare or RAID 6 with Larger Hard Drives
  • Expand RAID 5, RAID 5+Spare or RAID 6 by Adding a Hard Drive On The Fly
  • Synology DX510 Support

File Sharing Capability

  • Max User Accounts: 2,048
  • Max Groups: 256
  • Max Shared Folder: 256
  • Max Concurrent Connections(SAMBA, FTP, AFP): 512

Windows Access Control List (ACL)

Windows ADS Domain Integration

  • Domain Users login via Samba/AFP/FTP/File Station

Backup Solutions

  • Network Backup
  • Local Backup
  • Desktop Backup (using Synology Data Replicator 3 or Apple Time Machine backup application)
  • Time Backup - Max task number8
  • 3rd-Party Backup Support

Security

  • FTP over SSL/TLS
  • IP Auto-Block
  • Firewall
  • Encrypted Network Backup over Rsync
  • HTTPS Connection

Management

  • DSM Upgrade
  • Email Notification
  • SMS Notification
  • Customized User Quota
  • DDNS Support
  • IPv6 Support
  • PPPoE
  • Resource Monitor
  • UPS Management
  • Link Aggregation
  • Scheduled Power On/Off
  • Custom Management UI HTTP/HTTPS Ports

HDD Management

  • HDD Hibernation
  • S.M.A.R.T.
  • Dynamic Bad Sector Mapping

Utilities

  • Synology Assistant
  • Synology Download Redirector
  • Synology Data Replicator

Supported Clients

  • Windows 2000 onward
  • Mac OSX 10.3 onward
  • Ubuntu 9.04 onward

Supported Browsers

  • Internet Explorer 7
  • Internet Explorer 8
  • Firefox 3.5
  • Firefox 3.6
  • Safari 4 (Mac)
  • Safari 5 (Mac)
  • Chrome 5

Supported Mobile Devices
(Photo Station, File Station)

  • iPhone OS 2.2.1 onward
  • Android OS 1.5 onward
  • Windows Mobile (IE Mobile or Opera 9.0 onward)
  • Symbian OS 9.1, S60 3rd Edition onward

Language

  • Czech, Danish, Dutch, English, French, German, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese Brazil, Portuguese European, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish

Environment and Packaging

Environment

  • RoHS Compliant

Package Content

  • DS1511+ Main Unit
  • Installation CD/DVD
  • Welcome Note
  • Assembling Kit
  • AC Power Adapter
  • AC Power Cord
  • 2M RJ-45 LAN Cable

Optional Accessories

  • Remote
  • Camera License Pack

Specification Sheets / Installation guides / Associated files

Warranty: 3 Years RTB

Full manufacturers warranty details are available at the manufacturers (Synology) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
