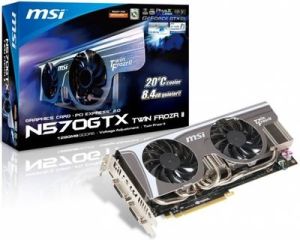

N570GTX Twin Frozr II/OC | MSI GeForce GTX570 - 1280MB GDDR5 - (786MHz, 4200MHz)

MSI Exclusive Twin Frozr II Cooling Design

The MSI N500 Twin Frozr II series graphics cards feature the advanced Twin Frozr II Thermal Design. To decrease operating temperatures by up to 20C, MSI has integrated its engineering expertise to create the ultimate Thermal Design. The GPU area is covered with a large surface area heat sink with a copper base, ensuring the best possible contact surface with the GPU. Surrounding components like Memory and PWM components are covered by a large unibody heat sink mold. With heat pipes with MSIs SuperPipe technology, excess heat is transferred quickly to a high density Aluminium cooling fin grid. The low-noise fan setup, which includes two 8cm fans are temperature controlled PWM fans, ensuring excellent air flow to all parts of the Twin Frozr II Thermal Design while reducing sound levels up to 8.4dB.

MSIs Exclusive Afterburner Overclocking Utility

MSIs exclusive Afterburner Overclocking utility allows for flexible overclocking and monitoring options. MSI Afterburner allows for instant adjustment of the GPU Frequency and GPU voltages, thanks to its unique Ultra-Voltage function, a combination that allows for more headroom for overclocking. The advanced fan control function allows end-user control of fan speeds to ensure stability when required or low noise when needed. By storing up to five different fan profiles, users can quickly switch between their profiles to match any situation. MSI Afterburner also displays a wealth of information about the card like real-time temperatures, speeds, voltages, load levels, allowing users excellent supervision over their card while benchmark for ultimate stability with MSI Kombustor.



MSI Quality: All Solid Capacitors



To ensure the best stability and lifespan, MSI only uses the best components like Solid Capacitors on the N500 Twin Frozr II series graphics cards. With their lifespan of over 12 years under heavy load, Solid Capacitors are made to last a graphics cards lifetime. Their excellent characteristics, like lowered Equivalent Series Resistance (ESR), ensure a higher efficiency and lower operating temperatures, all benefiting the best possible user experience.







;



Technical specifications

Marketing Name N570GTX Twin Frozr II/OC GPU NVIDIA GeForce GTX 570 Codename GF 110 CUDA Cores 480 Units Core Clock 786 MHz Shader Clock 1572 MHz Memory Clock 4200 MHz Memory Size 1280MB GDDR5 Memory Bus 320 bits Output Mini HDMI / DVI-I*2 TDP 225W Card Dimensions 268*115*37mm Form Factor ATX DirectX 11 OpenGL 4.0 CUDA Yes SLI Yes, 3 Way PhysX Yes Afterburner GPU Overvoltage
