All stock codes associated to this product
EP4203DL, EP-4203DL, ED15140
EP-4203DL
Gigabit Ethernet Cardbus Adapter
- Complies with IEEE 802.3, 802.3u, 802.3ab, 802.3x standards
- Supports IEEE 802.3x Full-Duplex flow control to enhance throughput
- Supports IEEE 802.1Q VLAN Tagging
- Includes Setup Wizard program
- Supports 10/100/1000Mbps Auto-Negotiation and jumbo frame
- Supports Plug&Play installation - auto setup of IRQ and I/O address
- Provides a complete set of diagnostic LEDs
- Supports Auto MDI/MDI-X
- Compatible with Windows 2000/XP/Vista, and Linux OS
Overview
Reliable Wired Networking
The Edimax EP-4203DL Gigabit Ethernet Cardbus adapter delivers high performance and reliable wired network connectivity to your laptop PCs. Once installed, access to shared music, documents, movies, and photos on your network are made easy and 10x faster compared to 100Mbps connections.
Convenient Features
The easy-to-read LEDs on the EP-4203DL allow you to check the status of your network connection and activity. Additionally, EP-4203DL is a hot-swappable adapter that allows you to remove it while your laptop PC is running.
Easy to Install and Use
Windows operating system can detect the initial installation of EP-4203DL into your system and subsequently install its drivers. It supports IEEE 802.3, IEEE 802.3u and IEEE 802.3ab standards, and is compatible with 10BASE-T and 100BASE-TX and 1000BASE-TX. Its Auto-Negotiation feature automatically adjusts transfer rate to its peak (max. of 2000Mbps in Full Duplex mode).
User-friendly Setup CD Wizard and Driver*
To facilitate network connectivity, the EP-4203DL includes a user-friendly setup CD wizard. Its user interface simplifies and enhances driver installation for immediate use of the device
Specifications
FEATURES AND TECHNICAL SPECIFICATIONS
- Complies with IEEE 802.3, 802.3u, 802.3ab, 802.3x standards
- Supports IEEE 802.3x Full-Duplex flow control to enhance throughput
- Supports IEEE 802.1Q VLAN Tagging
- Includes Setup Wizard program
- Supports 10/100/1000Mbps Auto-Negotiation and jumbo frame
- Supports Plug&Play installation - auto setup of IRQ and I/O address
- Provides a complete set of diagnostic LEDs
- Supports Auto MDI/MDI-X
- Compatible with Windows 2000/XP/Vista, and Linux OS
|
HARDWARE INTERFACE
|
STANDARDS
|
LED Indicators
|
- Cardbus Interface
- One 10/100/1000Mbps LAN port
|
- IEEE 802.3, IEEE 802.3u,
IEEE 802.3ab, IEEE802.3x
|
- 10/100/1000 Speed
- Link/Activity
|
|
INSTALLATION
|
BUS ARCHITECTURE
|
HUMIDITY
|
- Setup Wizard program with Driver setup
|
|
|
|
SYSTEM REQUIREMENTS
|
WEIGHT
|
TEMPERATURE
|
- CPU: Pentium III 1G above or similar
- Memory size : 256MB RAM
- One CD-ROM drive
- Hard Disk : At least 100MB available space
- One available PCMCIA type II slot ( Cardbus compatible)
- OS : Windows 98SE/2000/XP/Vista, or Linux OS
|
|
|
|
DIMENSIONS
|
CERTIFICATIONS
|
|
|
|
|
|

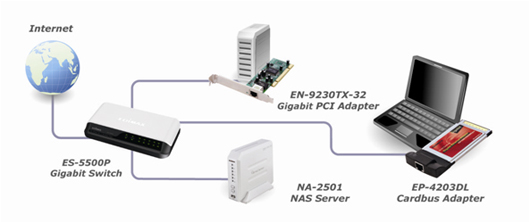

TYPICAL SETUP DIAGRAM AND RELATED PRODUCTS
* Product features and specifications are subject to change without notice.
