All stock codes associated to this product
GCS22U01, GCS22U-01
2-Port USB KVM Switch with Cables and Remote
GCS22U
Description
The IOGEAR 2-PortUSBCable KVM allows users to share a VGA monitor, a USB mouse, and a USB keyboard between two computers. Users can switch between computers using the wired remoteswitch buttonthat can be placed on your desk for convenience.It offers an out-of-box solution withno additional cables needed. It supports multiple operating systems including Windows, Sun, and Mac. It is entirely plug-n-play and requires no software to run. It is also powered through the USB bus and thus does not require apower supply to run. It is the idealKVM for those who want a competitively priced, entry level KVM that will allow them to multitask with two computers at their disposal.
Features
- One USB keyboard, USB mouse, and VGA monitor control two computers
- Max resolution: 2048 x 1536, DDC2B
- Plug-n-Play monitor support
- 3'long molded-in cables to simplify setup
- Compact design features two attached KVM (USB and VGA) cables
- Compatible withPC, MAC and SUN operating platforms
- Supports Windows 2000 or higher, Mac OS 9.0 or higher, Sun Solaris 9 or higher
- No software drivers required simply connect thecables to the computers
- Computer selection via 6 ft remotecontrollercable that can be placed on your desk for easy reach
- Full Mac keyboard support
- Supports programmable mice
- No power adapter required
- 3 Year Limited Warranty
Warranty: 3-YEAR

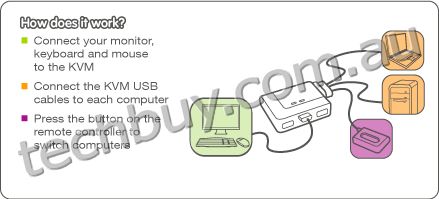

Function Diagram
Requirements
Console
- 1 VGA display
- 1 set of USB keyboard and mouse
Computers
Operating Systems
- Windows XP, Windows Vista (32-bit / 64-bit)
- Mac OS X v10.3.9 or later
- Sun Solaris
- Linux
Package Content
1 x 2-Port USB Cable KVM
1 x Quick Start Guide
1 x Warranty Card
Specifications
Function |
GCS22U |
CPU Connectors |
Monitor |
VGA |
Keyboard & Mouse |
USB |
Console Connectors |
Monitor |
VGA |
Keyboard & Mouse |
USB |
Cable Length |
2 x 3 ft ea |
Cable Type |
Bonded USB |
Connectors |
Keyboard |
USB |
Mouse |
USB |
Video Input |
VGA |
Dimensions |
GCS22U |
POP Information |
10'' Peg Hook |
3 |
Unit Dimensions |
Width |
3 in |
Height |
.87 in |
Depth |
2.5 in |
Inner Pack |
Width |
12.5 in |
Height |
8.25 in |
Depth |
|
Inner Pack Qty. |
6 |
Unit Package Dimensions |
Width |
7.4 in |
Height |
7.6 in |
Depth |
2.25 in |
Master Carton |
Width |
13.25 in |
Height |
9.4 in |
Depth |
16.25 in |
Master Carton Qty. |
12 |
Weight |
Master Carton Wt. |
13.6 lbs |
Inner Pack Wt. |
6.2 lbs |
Unit Pack Wt. |
1.0 lb |
Unit Wt. |
14 oz |
