HOME / Back -> Video Cards -> Radeon PCI-Ex 6xxx Series -> MSI

MSI Radeon HD 6850 - 1GB GDDR5 - (860MHz, 4400MHz)
  • 256-bit, 2xDVI, 1xDisplayPort, 1xHDMI, PCI-Ex16 v2.0, Fansink - Cyclone Edition

IMG 1 of 5
No Longer Available
Part Number:
164887
(?) Brand:
MSI Web Site
Manuf No:
R6850-CYCLONE
R6850CYCLONE
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Date Added:
17/2/2011
Details Files Images & Video
All stock codes associated to this product
R6850CYCLONE, R6850-CYCLONE

Overview



Key Messages

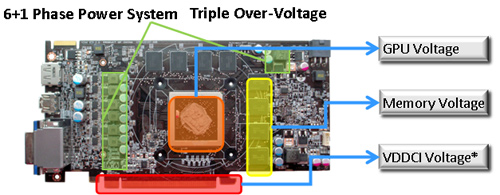

  • - Edition Architecture
    - Triple Over-Voltage: Supports voltage adjustment of GPU, Memory and VDDCI (input) via MSI Afterburner
    - 6+1 Phase Power System:
    1. Higher current power for GPU and Memory
    2. Higher overclock capability and stability
    3. Better stability in peak load
    - MSI Afterburner overclocking utility
    1. Supports advanced fan speed control.
    2.Supports burn-in stability test.

  • Cyclone Thermal Design
    -9cm PWM Fan provides 40% more airflow.
    -Nickel-plated copper base for better dissipation
    -Rounded design to prevent keeping dust.
    -15.7% quieter than reference design.
    - 14 cooler & 5dB quieter compared to reference cooling

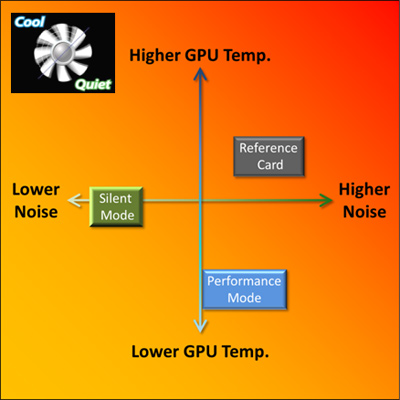

  • MSI Exclusive P/S Switch Function
    - Two fan speed profiles - Performance / Silence
    - Performance Mode provides best cooling demand; Silent Mode balances noise and GPU Temperature

  • Military Class ll Component
    - Hi-C CAP for GPU provides more precise voltage
    - SFC (Super Ferrite Choke) has higher current for better overclocking ability
    - All Solid CAPs have longer lifespan


Video Output Function

  • DisplayPort x 1
  • Dual-Link DVI-I x 1
  • Signal-Link DVI-D x1
  • HDMI x 1



Bundle MSI developed software

  • MSI VGA Driver
  • MSI Live Update Series (Live VGA BIOS & Live VGA Driver)
    Automatically online download & update VGA BIOS & Drivers, reduce the risk of getting the wrong files, and never have the trouble on web site searching.
  • MSI Live
    MSI Live including all real time life information you need, such as Live MSI Product News, Live Daily Information, Live Personal Schedule Manager, Live Search and more.
  • Adobe Acrobat Reader
  • Microsoft  DirectX
  • Norton Internet Security 2008 60 days Trial
    -Blocks online identity theft by phishing Web sites
    -Detects and eliminates spyware
    -Removes viruses and Internet worms automatically
    -Protects against hackers


Product Accessories





Brief Specification

Graphics Engine AMD Radeon HD 6850
Bus Standard PCI Express x16 2.1
Memory Type GDDR5
Memory Size(MB) 1024
Memory Interface 256 bits
Core Clock Speed(MHz) 860
Memory Clock Speed(MHz) 4200
Memory Bandwidth(GB/sec) N/A
Texture Fill Rate(billion/sec) N/A
DVI Output 2 (Single-Link DVI-D x1, Dual-Link DVI-I x1)
D-SUB Output 2 (optional, via DVI to D-Sub adaptor)
HDMI-Output 1
Mini HDMI-Output N/A
TV-Output N/A
DisplayPort 1
Mini DisplayPort N/A
VIVO(Video-in/out) N/A
HDTV Support N/A
HDCP Support Y
HDMI Support Y
Dual-link DVI Y
Display Ouput(Max Resolution) 2560x1600
RAMDACs 400
DirectX Version Support 11
OpenGL Version Support 4.0
CrossFire Support Y
SLI Support N/A
3-way SLI N/A
HyperMemory Tech. N/A
TurboCache tech. N/A
Card Dimension(mm) 217 x 120 x 38 mm
Weight N/A

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (MSI) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
