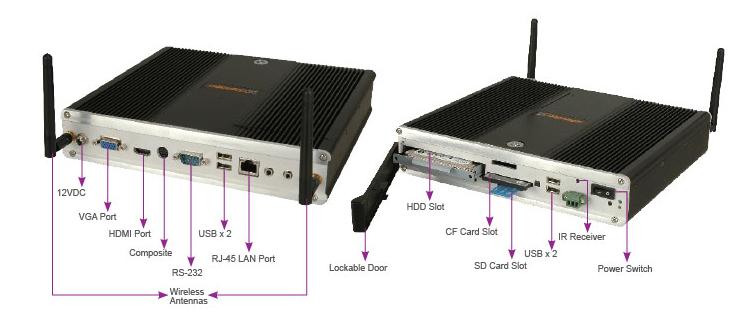

MultiZones Intel Based Signage Player
Product Code: is-800AWL-R10
x86-base Standalone Player for Single Display
iSignager-800 is the x86-based digital signage player. iSignager-800 has great thermal design for 24/7 long hours running for digital signage application. iSignager-800 with built-in with Intel Atom N270 processor makes a low power consumption but high performance player. The iSignager-800 is capable to connect to various display device via HDMI, S-Video, VGA and component. With the bundled iSignager AdMinistrator V4.0 software, your can easily create multi-zone display contents.
Features
- Great thermal design with Intel® Atom™ N270 processor
- Fanless and slim design.
- Built-in VGA/ HDMI/ S-Video/ Composite connectors suitable for various display devices.
- Support 2.5" SATA HDD, CF card and SD card as the storage devices.
- Built-in IR remote controller for player setting (Start Up, Shut Down, Reset).
- Built in mini-PCIe slot for extension TV card
- Built-in LAN or Wireless LAN for remote communication.
- Must Buy iSignager AdMinistrator Box V4.x with easy content design software.
- Content design & management software "iSignager AdMinistrator V4.x".
- Multiple media zone display
- Multiple media format support, including flash, picture, video, html, text/ photo banner, and audio
- Support multi format content display in one media block
- Content preview function
MultiZones Intel Based Signage Player
Product Code: is-800AWL-R10
Product Code: is-800AWL-R10
| Model Name |
iSignager-800WL-N270/1GB/160G-R10 |
| CPU |
Intel Atom 1.6GHz/ 512KB L2 cache Processor N270 |
| Chipset |
Intel 945GSE + ICH7M |
| Memory |
Built-in 1GB DDR2 memory
System support 1 x 240pin Dual Channel DDR2 400/533 MHz up to 2GB |
| Storage |
1 x 2.5" SATA HDD slot
1 x CF Type II slot
1 x SD Card slot |
| OS |
Built-in Windows Embeded XP Standard OS in one 4GB CF card |
| I/O |
USB |
2 x USB 2.0 on front panel
2 x USB 2.0 on rear panel |
| COM |
1 x RS-232 Port |
| Content/ Video Output |
1 x VGA
1 x HDMI
1 x 7 Pin for S-Video & Compsite |
| Audio |
1 x Mic in, 1 x Line Out |
| LAN |
1 x 10/100mBase-T |
| Wireless |
802.11 b/g/n wireless |
| Power |
12VDC in |
| Mounting |
VESA 75/ 100 |
| IR Type |
1 x external IR by USB |
| EMC/ Safety |
CE/ FCC/ UL/ CB/ CCC
|
