All stock codes associated to this product
ZESAES256
ZESAES256
Cipher Z enclosure with AES 256-bit encryption, eSATA connection
Package content:
Cipher Z enclosure, a pair of AES 256-bit cipher keys, 110/220V power adapter, 3-foot eSATA cable
Drive enclosure with eSATA and USB 3.0
FIPS 140-2 certified Crypto Module
Integrated with the CipherChain-ES, the Z drive enclosure turns any 3.5" or 2.5" hard drive into an external eSATA hard drive with bullet proof AES 256-bit encryption. By attaching an optional USB 3.0 - eSATA adapter, the Cipher Z drive enclosure can also connect to the latest USB 3.0 port or the ubiquitous USB 2.0 port commonly found on many computer systems.

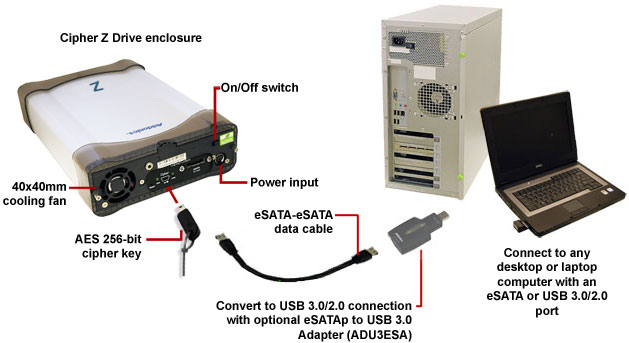

Connecting Cipher Z Drive enclosure to Desktop or Notebook via eSATA or USB 3.0

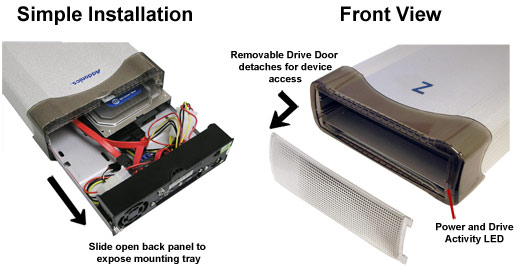

Simple hard drive installation
Simple to use
Similar to all other Addonics encryption products, the Cipher Z enclosure is a pure hardware solution. This means that there is no software to run, no driver to install and no password to remember. There is very little user training required to use the Cipher Z drive enclosure. All the user needs to do is to insert the correct Cipher key at the back of the drive enclosure before turning on the power. The Cipher Z drive enclosure can be operated under any operating system. It is an ideal security solution for organization with heterogeneous computing environment and legacy systems.
Security
The Cipher Z drive enclosure is equipped with the CipherChain ES which is a full disk encryption solution. This means that the boot sector, partition table and all the information in the drive are encrypted. If the Cipher Z drive enclosure is stolen and the SATA drive inside is removed from the enclosure to connect to a computer, the drive will appear as a brand new drive with no trace of any data. The AES 256-bit encryption provided by the CipherChain ES is considered as the highest level of encryption standard, secure enough to protect classified information designated as Top Secret.
Performance
Inside the Cipher Z drive enclosure, data stored in the hard drive is encrypted and decrypted on the fly using a FIPS certified AES 256-bit crypto engine. Unlike software encryption product which depends on the system CPU to encrypt and decrypt the data, the encryption in the Cipher Z drive enclosure has no impact to CPU utilization.. This leaves the system CPU to perform all its computing task at normal speed. There is also no measurable impact to the performance on the hard drive.
Cipher key
The AES 256-bit Cipher key used for the encryption/decryption in the Cipher Z drive enclosure is the same Cipher key as used in the Addonics Diamond Cipher drive kit, Ruby Cipher drive kit, CipherChain and CipherChain-ES. As a result, you can share the same encryption key to operate on the storage device that has been encrypted by either the CipherChain, Diamond Cipher or Ruby Cipher drive kit. You may also order Cipher keys with the same key codes when you order multiple Cipher Z drive enclosures or Cipher keys. You may also re-programmed the Cipher keys to other codes using the optional key management system or sending the keys to Addonics for the re-programming service at no charge.
Key Features
- Install any SATA I / II / III 3.5" or 2.5" hard drive / SSD
- FIPS 140-2 certified Crypto Module.
- Full disk encryption. No traceable data when the encrypted drive is connected to any system.
- Simple to use - no software to run or any password to remember
- No training required. Encryption / Decryption via a hardware key , just like using a regular key to open a door.
- High speed eSATA connection - up to 150 MB/sec
- Connect to USB 3.0 or 2.0 port using optional USB 3.0 - eSATA adapter (model: ADU3ESA)
- Install any IDE hard drives with optional Addonics IDE - SATA converter.
- OS independent - can be used on any system
ZESAES256
Cipher Z enclosure with AES 256-bit encryption, eSATA connection
Package content:
Cipher Z enclosure, a pair of AES 256-bit cipher keys, 110/220V power adapter, 3-foot eSATA cable
Specifications
- Onboard AES 256-bit crypto engine
- SATA I / II / III compliant
- Connectors on back of unit:
- eSATA
- Cipher key socket
- mini DIN 6 power input jack
- LEDs:
- in the front: green for power
- in the rear - green for presence of Cipher code, yellow for drive activity
- RESET at the back: To clear cipher key code and reset the CipherChain. This also remove the drive icon when the storage device is removed from the Cipher Z enclosure connecting to hot swappable eSATA port.
- Maximum throughput - 150 MB/sec
- Dimension: 85 x 50 x 23 mm (W x D x H) (3.34 x 1.97 x 0.91 in)
- Weight: 81 g (2.86 oz)
- Operating temperature and humidity: 0 C to + 70 C, 5% - 95% (non condensing)
- Storage temperature and humidity: -40 C to + 85 C, 5% - 90% humidity
