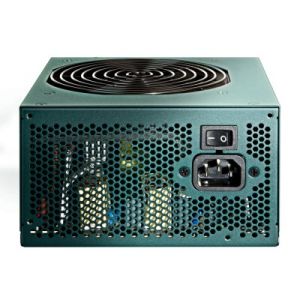

EA-650 Green
650W Continuous Power
Get more power and lower your electric bill with the new EarthWatts Green series! One of the most environmentally-friendly power supplies available, the EarthWatts EA-650 Green efficiently delivers 650 Watts of reliable and stable power while meeting the Bronze level of efficiency from 80 PLUS®, the most widely recognized independent standard in power supply efficiency. On top of that, this EarthWatts power supply boasts Universal Input to automatically work on any power grid on the planet, and a 120 mm double ball bearing fan to keep cool. Get the power you need, save money and help protect the environment with Antec's EA-650 Green!
Features:
650W Continuous Power
NVIDIA SLI-Ready certified, ATI CrossFireX certified
80 PLUS Bronze certified - up to 88% efficient
ATX12V version 2.3
Universal Input - works on any 100V - 240V grid
Active Power Factor Correction (PFC) with PF: 0.99
Dual +12V output circuits ensure greater system stability
Full suite of industrial-grade protection:
- Over current protection (OCP)
- Over voltage protection (OVP)
- Short circuit protection (SCP)
- Over power protection (OPP)
- Over temperature protection (OTP)
1 x 8(4+4)-pin ATX12V / EPS12V connector for CPU
2 x 8(6+2)-pin PCI-E connectors
Meets 2010 EuP requirement: 5Vsb < 1W
AQ3 - Antec Quality 3 year parts and labor warranty
MTBF: 100,000 hrs
Safety: cUL, TV, CE, CB, FCC, C-TICK, CCC, BSMI, Gost-R
Operating Temperature: 10C to 50C
No power cord included. By reusing your existing cord, you can reduce waste and help protect the environment
Unit Dimension
- 86 mm (H) x 150 mm (W) x 155 mm (D)
- 3.4" (H) x5.9" (W) x 6.1" (D)
Package Dimension
- 210 mm (H) x 230 mm (W) x 110 mm (D)
- 8.3" (H) x 9.0" (W) x 4.3" (D)
Weight
- Net : 4.5 lbs / 2.0 kg
- Gross : 5.1 lbs / 2.3 kg
Output
VoltageRange
MAXReg. OCP Set
Point Ripple &
Noise
| |
+5V |
|
24A |
|
5 |
|
35A |
50 |
| |
+12V1 |
|
38A |
|
5 |
|
50A |
120 |
| |
+12V2 |
|
38A |
|
5 |
|
50A |
120 |
| |
-12V |
|
0.5A |
|
10 |
|
|
120 |
| |
+5VSB |
|
2.5A |
|
5 |
|
|
50 |
| |
+3.3V |
|
24A |
|
5 |
|
35A |
50 |
