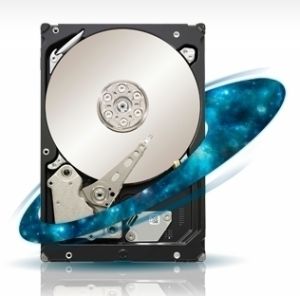

Seagate 3000GB (3TB) 7200rpm SAS 6Gb/s HDD w. 64MB Cache (ST33000650SS) Constellation ES.2

IMG 1 of 1
No Longer Available
Part Number:
168680
(?) Brand:
Seagate Web Site
Manuf No:
ST33000650SS
Shipping Weight:
1 KG (Includes product packaging)
Estimate Shipping
Date Added:
14/4/2011
Details Files Images & Video
All stock codes associated to this product
ST33000650SS, 1538685, 7636490028090, 715663215523, 7636490044311, HSS-ST33000650S

Seagate Constellation ES.2 capacity-optimized 3.5-inch drives

Key Features and Benefits

  • Industrys highest capacity enterprise drive for sustaining demanding data growth
  • Fifth-generation, capacity-optimized nearline drive designed for 24x7 enterprise reliability
  • SAS-based, end-to-end data integrity and enhanced error correction for accurate data storage
  • Best-in-class enhanced rotational vibration tolerance ensures consistent bulk data performance
  • Improved power and cooling efficiencies with low power consumption and enhanced PowerChoice technology
  • Multi-drive firmware maximized for enterprise system availability
  • Robust performance with dual processor and ramp load technologies

Seagate Constellation ES.2 SAS 6Gb/s 3-TB Hard Drive

ST33000650SS

Specifications
Model Number ST33000650SS
Interface 6-Gb/s SAS
Cache 64MB
Capacity 3TB
Areal density (avg) 444Gb/in2
Guaranteed Sectors 5,860,533,168
PHYSICAL
Height (maximum) 26.10mm (1.028 in)
Width (maximum) 101.85mm (4.010 in)
Length (maximum) 147.00mm (5.787 in)
Weight (typical) 700g (1.543 lb)
PERFORMANCE
Spin Speed (RPM) 7200 RPM
Sustained data transfer rate 155MB/s
Average latency 4.16ms
Random read seek time 8.5ms
Random write seek time 9.5ms
I/O data transfer rate 600MB/s
Unrecoverable read errors 1 in 1015
RELIABILITY
MTBF 1,200,000 hours
Annual Failure Rate 0.73%
POWER
12V start max current 1.70A
5V start max current 0.60A
Average idle power 7.40W
Average operating power 11.33W
ENVIRONMENT
Ambient Temperature
Operating 560C
Nonoperating -4070C
Maximum operating temperature change 20C per hour
Maximum nonoperating temperature change 20C per hour
Shock
Operating Shock (max) 70/40 Gs for 2ms
Nonoperating Shock (max) 300 Gs for 2ms
ACOUSTICS
Acoustics (Idle Volume) 2.8 bels

Specification Sheets / Installation guides / Associated files

Warranty: 3 Years Limited Warranty

Full manufacturers warranty details are available at the manufacturers (Seagate) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
