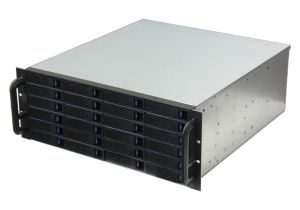

Norco DS-24E External Disk Aray - 4U Rackmountable
  • Inc. 24x Hot-Swap SATA-II/SATA-III/SAS Drive Bays (SAS Expander w. 1x External SFF-8088 Connectors)

IMG 1 of 2
No Longer Available
Part Number:
169048
(?) Brand:
Norco Web Site
Manuf No:
DS-24E
DS24E
Shipping Weight:
20 KG (Includes product packaging)
Estimate Shipping
Date Added:
20/4/2011
Details Files Finance Images & Video
All stock codes associated to this product
DS24E, DS-24E
Model No. DS-24E

Features

  • 4U rackmount design.
  • 24x hot-swappable SATA II, III/SAS 6G drive bays.
  • Built in 6Gb/s SAS Expander for single SFF-8088 cable connectivity, LSISAS2x36/28 expander IC embedded.
  • System status indication through LCD, LED (Link status and Activity) and alarm buzzer.
  • LED indicators for power and activity on each HDD tray
  • Backplanes are horizontal mounted for better ventilation
  • RoHS Compliant
  • OS Independent
  • Come with full range power supply

    Optional Data Cable: SFF-8088 cable

    Rail Option:RL-26
Specification
Drive Bay 24 x hot-swappable SATA II, III/SAS 6G drive bays
Cooling Fan 3 x 80mm rear fans
Connector One SFF-8088 "IN" connector for connection to the host, two SFF-8088 "OUT" connectors for expansion to an additional JBOD enclosure
O.S. support OS Independent
Power Supply Options Come with standard ATX power supply
Dimensions ( W x D x H ) 19" x 18.9" x 7.0" (483mm x 480mm x 176mm)
Packing Double boxes
Weight (without hard drive) 17.2 kg/38 lb (NET) 18.6 kg/41 lb (GROSS)
Environment Temperature 0/40 C, 32/104 F (Operating) -20/60 C, -4/140 F (Non-Operating)
Relative Humidity 5% to 95%,non-condensing

No additional files, specification sheets, guides or documentation found for product.

Full manufacturers warranty details are available at the manufacturers (Norco) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
