All stock codes associated to this product
ZMCNPS11XEX, ZM-CNPS11X-EX, ZalmanZMCNPS11XEX, Zalman ZM-CNPS11X-EX

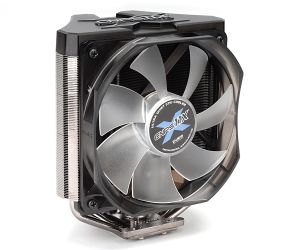

CNPS11X Extreme
V-Shaped Dual Heat Sink CPU Cooler
Pentium 4, Celeron D, Pentium D, Core 2 Duo, Core 2 Quad, Core 2 Extreme, Pentium Dual Core, Core i7, Core i5, Core i3, Sempron, Athlon, Athlon FX, Opteron, Dual-Core Opteron, Phenom, Athlon X2, Phenom II, Athlon II
 |
 |
Socket |
|
CPU |
|
CPU Compatibility |
|
| Intel |
1155/1156 |
Core i7 Extreme |
Supports all speeds |
| Core i7 |
| Core i5 |
| Core i3 |
| 1366 |
Core i7 Extreme |
Supports all speeds |
| Core i7 |
| 775 |
Core 2 Quad |
Supports all speeds |
| Core 2 Duo |
| Core 2 Extreme |
| Pentium Dual Core |
| Pentium D |
| Pentium 4 |
| Celeron D |
| AMD |
AM3 |
Phenom II |
Supports all speeds |
| Athlon II |
| AM2+ |
Phenom II |
Supports all speeds |
| Phenom |
| Athlon FX |
| Athlon X2 |
| Athlon |
| Sempron |
| AM2 |
Athlon FX |
Supports all speeds |
| Athlon X2 |
| Athlon |
| Dual-Core Opteron |
| Opteron |
| Sempron |
|
Dimensions
|
135(L) x 80(W) x 154(H)mm |
| Weight |
600g |
| Materials |
Pure Copper and Aluminum |
| Dissipation Area |
7,600 |
| Heatpipes |
5 |
| Fan |
Ultra Quiet 120mm Blue LED PWM Fan |
| Bearing-Type |
Long Life Bearing |
| Fan RPM |
Low Noise Mode
(with RC24P) |
1,000 ~ 1,450 rpm 10% |
Performance
Mode
(without RC24P) |
1,000 ~ 1,950 rpm 10% |
| Noise |
Low Noise Mode
(with RC24P) |
17 ~ 24 dBA 10% |
Performance
Mode
(without RC24P) |
17 ~ 33 dBA 10% |
| 12V |
| Color |
Gray |
| Capacity |
3.5g |
| Specific Gravity @23C |
2.88 |
| Thermal Resistance |
8K/W |
| Thermal Conductivity |
4.1W/mK |
| Temperature Stability |
-40C ~ +150C (-40 ~ +302) |

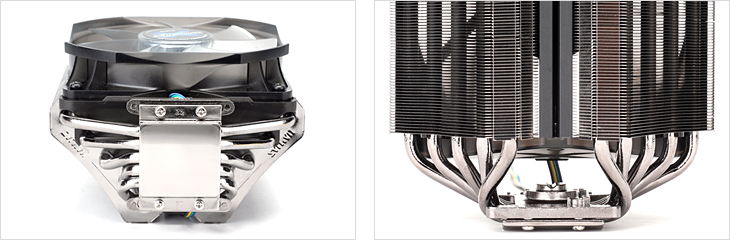

 V-Shaped Dual Heat Sink
Two independent heat sinks are designed in V-shape to
minimize air resistance and optimize airflow, providing the
best cooling performance.
Heat Resistance: 0.090/Watt
|
Powerful Cooling Performance
Two optimally designed heatsinks disperse heat away from the CPU via 5 heatpipes, while high capacity 120mm fan quickly cools the heatsink for stable operation of high performance CPUs.
|
Versatile Compatibility
CNPS11X Extreme accommodates a broad range of desktop CPU sockets.
- Intel LGA1155 / 1156 / 1366 / 775
- AMD AM3 / AM2+ / AM2
|

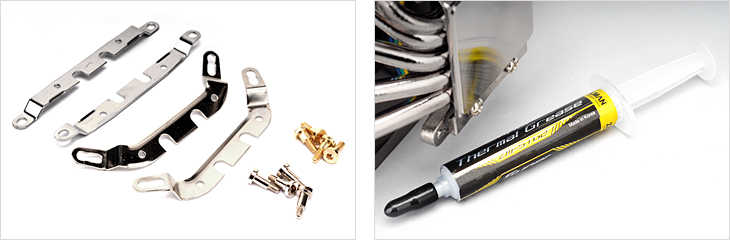

High Performance Super Thermal Grease ZM-STG2
The high performance super thermal grease ZM-STG2 maximizes heat transfer from the CPU to the base of
CNPS11X Extreme for intensified cooling performance.
|

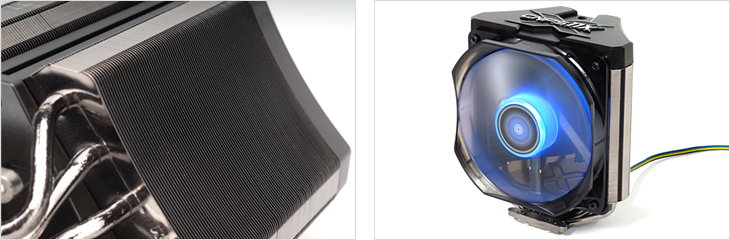

| Black-Pearl Nickel Plating
The entire copper heat sink of CNPS11X Extreme is Black-Pearl Nickel Plated for long-term corrosion resistance, while the deep Black-Pearl tone along with the high intensity Blue LEDs reinforce its powerful aesthetics.
|
Ultra Quiet 120mm Blue LED PWM Fan
Switching noise-free 120mm PWM fan is incorporated for ultra quiet operation and Blue LEDs for cool aesthetics.
Switching noise is the high frequency harmonic noise
that can result from voltage regulation.
|
ZM-STG2 Features
 |
Quickly transfers heat from heat sources (CPUs, VGA chipset, Northbridge chipset) to their heatsinks. |
 |
Non-electrically conductive. |
|

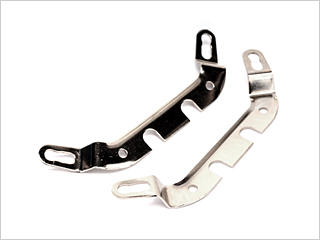

 Components for Intel Socket 1155/1156/1366/775 |
| - Intel Clip |

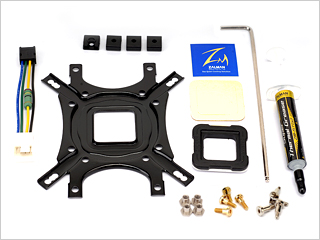

| Common Components |
- CNPS11X Extreme
- Backplate
- Side Cap
- Gold Bolts (Socket 1366)
- Silver Bolts (Socket 1155 / 1156 / 775 / AMD)
- Resistor [RC24P]
- Nuts
- Wrench
- Loading Block
- Thermal Grease [ZM-STG2]
- Double-sided Tape
- Users Manual |

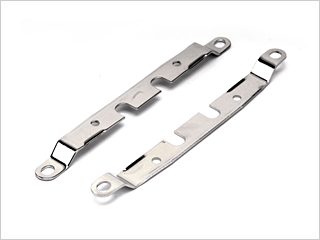

Component for AMD
Socket AM3/AM2+/AM2 |
| - AMD Clip |
