| Network Standard |
IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3u,IPv4 |
| Data Rate |
802.11b : 1, 2, 5.5, 11Mbps
802.11g : 6,9,12,18,24,36,48,54Mbps
802.11n : up to 150Mbps |
| Features |
ANSI T1.413 Issue 2,
ITU-T G.992.1 Annex A (G.dmt),
ITU-T G.992.2 (G.lite),
ITU-T G.994.1 (G.hs),
ITU-T G.992.3 (G.dmt.bis),
ITU-T G.992.5 Annex A/M
ADSL 2/2+ 24Mbps downstream |
| Antenna |

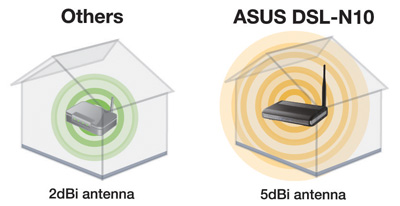

Detachable 5 dBi antenna x 1 |
| LED Indicator |
Power,ADSL,Internet,WLAN,LAN x 4 |
| Button |
WPS Button,Reset Button,Power Switch,Wireless on/off Button |
| Ports |
1 x RJ11 for ADSL
4 x RJ45 for 10/100 BaseT for LAN |
| Operating Frequency |
2.4GHz |
| Operation Channel |
11 for N. America
13 Europe (ETSI) |
| Memory |
4MB Flash/32MB SDRAM for Wi-Fi
1MB Flash/2MB SDRAM for ADSL |
| Receive Sensitivity |
-95dBm@1Mbps
-92dBm@11Mbps
-75dBm@54Mbps
[email protected]
-68dBm@150Mbps |
| Output Power |
b mode : 17 ~19 dBm
g mode : 15 ~17 dBm
n mode : 15 ~17 dBm |
| Security |
64-bit WEP,128-bit WEP,WPA2-PSK,WPA-PSK,WPA-Enterprise,WPA2-Enterprise,Radius with 802.1x,WPS support |
| Firewall & Access Control |
Built-in NAT and SPI firewall
Port, IP packet, URL, MAC filter
|
| Management |

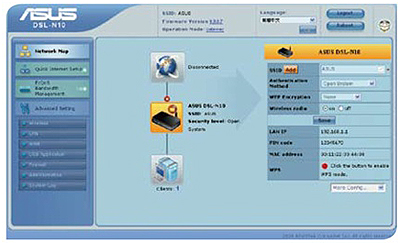

Web-based GUI configuration
Firmware upgraded, configuration data uploaded and downloaded via Web-based GUI
Auto VPI/VCI detection
Configuration backup and restore
Diagnostics
Log & Trace function |
| Utilities |

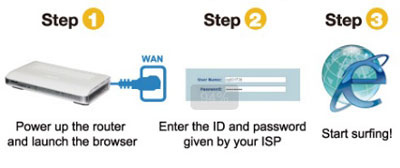

ADSL Setting Wizard
Firmware Restoration
Device Discovery |
| Power Adapter |
AC Input : 100 ~240 V(50~60HZ)
DC Output : 12 V/1 A
Power Consumption : 12 W Max. |
| Certificates |
CE,FCC,A-Tick,IC,PCT |
| Dimensions |
164 x 116.5 x 31 mm (WxDxH) |
| Weight |
255 g (Device Only) |
| Environmental |
Operating Temperature: -10 C to 50 C (14 F to 122 F)
Storage Temperature: -40 to 60 C (-40 F to 140 F)
Operating Humidity: 5 % to 95 % (Non-condensing)
Storage Humidity: 5 % to 95 % (Non-condensing) |
| Package Content |
DSL-N10 Wireless ADSL Router
5dBi detachable antenna
Power adapter
Support CD (user manual, utilities)
RJ45 cable
RJ11 cable
Quick Start Guide |
| Manufacturer Warranty |
Localized to different countries |
