CoolerMaster 450W GX Series PSU - ATX 12V v2.31, EPS 12V v2.91, 120mm Fan, 80 PLUS Bronze Certified
  • 5xSATA, 1xPCI-E 6-Pin

IMG 1 of 5
No Longer Available
Part Number:
170716
(?) Brand:
CoolerMaster Web Site
Manuf No:
RS450-ACAAD3-AU
RS450ACAAD3AU
Shipping Weight:
3 KG (Includes product packaging)
Estimate Shipping
Date Added:
23/5/2011
Details Files Images & Video
All stock codes associated to this product
RS450ACAAD3AU, RS450-ACAAD3-AU, 1541937, 4719512030059
Introduction
Cooler Master releases a whole new mid-range power supply, GX-450. This power supply is specifically targeted at systems in the upper-mid range, yet reasonably priced. The Cooler Master GX Series of power supplies feature a single highly robust 12 V rail, proficiently delivering power to the most demanding components including the processor, drives, and cooling fans. Now including a double-layer EMI Filter, an intelligent 120 mm controllable fan and an active PFC/PWM combo controller for increased efficiency, the GX Series will keep the power in your hands.
Features
  • Single 12 V Power Rail
    Tackling challenges from the most power-intensive peripherals head on, this solitary 12 V power rail provides ample power and strong resistance to any overloading.

  • Double-Layer EMI Filter
    Dual protection from electromagnetic interference, thus restraining noise and interference for greater protection for you and your connections.

  • Intel Compliant
    ATX12V v 2.3 and EPS version 2.91 compliant.

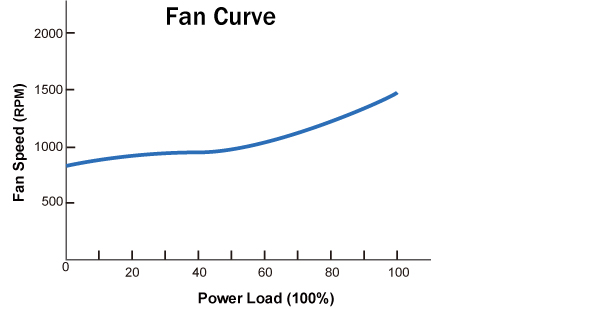

  • Intelligent Fan Speed Control
    Speed control makes the 120 mm fan adept for any users circumstances and need.

  • Active PFC+ PWM Combo Controller
    Integrating this active controller will increase the efficiency of any computer, making PFC higher than 99%.

  • Multiple Protection Design
    Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Power Protection (OPP), Over Temperature Protection (OTP) and Short Circuit Protection (SCP).

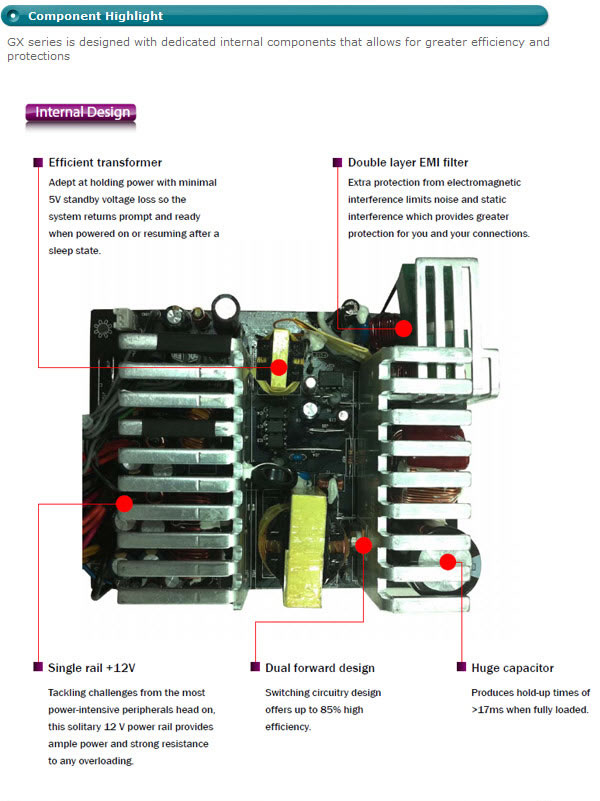

  • Massive Bulk Capacitor
    Producing hold times >17ms upon full loading.

  • Efficient Transformer
    - Adeptly holding power for minimal loss in the 5V standby voltage so thesystem is promptly up and ready from power on or sleep modes
    - Highly efficient design on par with 80Plus requirements (85% typical)

  • And More
    - Multiple updated connectors for all types of interfaces (PCIe, SATA etc.)
    - High reliability with an MBTF of at least 100,000 hours of use.
    - Five Year Warranty.

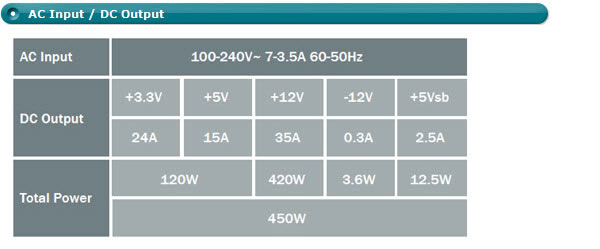

Specifications
Model RS-450-ACAA
Type Intel Form Factor ATX 12V V2.31
Dimension (W / H / D) 150 x 140 x 86mm
5.9 x 5.5 x 3.4 inch
Input Voltage 90-264Vac (Auto Range)
Input Current 7A @ 115Vac , 3.5A @ 230Vac
Input Frequency Range 47-63Hz
PFC Active PFC (>0.9)
Power Good Signal 100~500ms
Hold Up Time >17ms

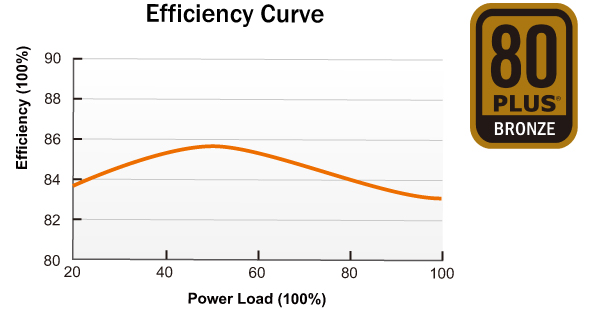

Efficiency 85% typical
MTBF >100,000 hours
Protection OVP / UVP / OPP / OTP / SCP
Output Capacity 450W
Max. Output Capacity 540W
Operation Temperature 0~40C (Nominal Input Voltage)
Regulatory CE / FCC / UL / TUV / C-Tick / GOST / BSMI / CCC / KCC
Fan 120mm
Certifications 80 PLUS Bronze

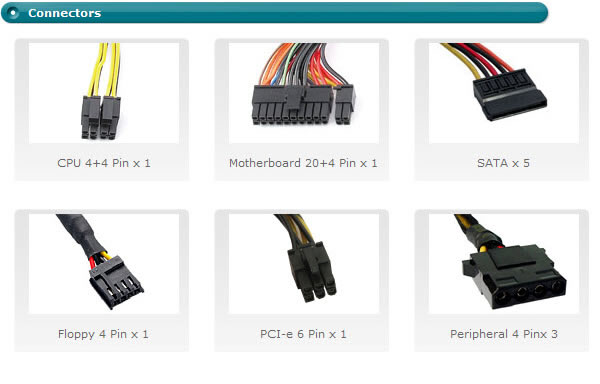

Connector M/B 20 + 4 pins x 1
CPU 4 + 4 pins x 1
PCI-e 6 pins x 1
SATA x 5
Peripheral 4 pins x 3
Floppy 4 pins x 1

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (CoolerMaster) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
