All stock codes associated to this product
BR6258n, BR-6258n, ED17415
BR-6258n
150Mbps Wireless Broadband Nano Router
- Compatible with the 802.11n standard, with data rates up to 150Mbps
- Built-in hardware WPS (Wi-Fi Protected Setup) button
- Supports WISP (wireless ISP) connection mode
- Includes EZmax multi-language setup wizard
- Supports WMM, WEP, WPA, WPA2, DDNS, QoS, IP/MAC filter, DMZ, and virtual server
Overview
Miniature, Energy-Efficient, Space-Saving, and Stylish
The BR-6258n is a miniature, energy-efficient, and space-saving wireless broadband router that is designed with pure stylishness. But this stylish router is not just about the looks, it has all the features that make it versatile and an extraordinary performer.
True Flexibility and Convenience
With both a WAN port and a LAN port, the BR-6258n gives users the flexibility of using it as either a router or a wireless adapter. The true convenience of the design lies in that the user only needs to make the appropriate cable connections and the BR-6258n will switch between the two modes automatically.
It’s as Fast as It Looks
The EDIMAX BR-6258n complies with IEEE 802.11b/g/n standards. Its wireless data transmission rate can reach up to 150Mbps and its signal coverage is 3 times greater than standard 802.11g/b routers.
WPS (Wi-Fi Protected Setup) Button
The BR-6258n has a built-in WPS button, which allows users to build a secure connection with a wireless network client with a simple click. There is no need to go through the hassle of configuring the complicated security settings manually.
IP Sharing, Virtual Server and DMZ
The NAT/NAPT function lets you share the Internet connection with up to 253 Intranet users. The virtual server and virtual DMZ functions also allow your internal servers to be accessed from the Internet.
Specifications
Specifications
|
Miniature, Energy-Efficient, Space-Saving, and Stylish
The BR-6258n is a miniature, energy-efficient, and space-saving wireless broadband router that is designed with pure stylishness. But this stylish router is not just about the looks, it has all the features that make it versatile and an extraordinary performer.
True Flexibility and Convenience
With both a WAN port and a LAN port, the BR-6258n gives users the flexibility of using it as either a router or a wireless adapter. The true convenience of the design lies in that the user only needs to make the appropriate cable connections and the BR-6258n will switch between the two modes automatically.
Its as Fast as It Looks
The EDIMAX BR-6258n complies with IEEE 802.11b/g/n standards. Its wireless data transmission rate can reach up to 150Mbps and its signal coverage is 3 times greater than standard 802.11g/b routers.
WPS (Wi-Fi Protected Setup) Button
The BR-6258n has a built-in WPS button, which allows users to build a secure connection with a wireless network client with a simple click. There is no need to go through the hassle of configuring the complicated security settings manually.
IP Sharing, Virtual Server and DMZ
The NAT/NAPT function lets you share the Internet connection with up to 253 Intranet users. The virtual server and virtual DMZ functions also allow your internal servers to be accessed from the Internet.
|
|
|
|
FUNCTIONS
|
HARDWARE INTERFACE
|
MANAGEMENT
|
- Supports AP, AP Client, Bridge, Bridge+ WDS, andUniversal Repeater modes
- Port Triggering for special applications
- DDNS and SIP
- Virtual Server and DMZ hosting
- MAC/IP filter and URL blocking
- Static routing
- UPnP architecture
- VPN Pass-Through (IPSec/PPTP)
- Schedule control
|
- 1 x RJ-45 WAN port
- 1 x RJ-45 LAN port
- LED Indicators: Power, Wireless, WAN, LNK/ACT for LAN
- Internal Antenna
- WPS/Reset button
|
- 12-language user interface
- Supports Remote Management
- System Status and Security Log(web interface)
- Firmware upgradable
|
|
WAN
|
SECURITY
|
OUTPUT POWER & SENSITIVITY GAIN
|
- Supports WISP connection mode
- Supports RJ-45 cable/xDSL modems
- WAN protocol: PPPoE, Static IP, PPTP, Dynamic IP,L2TP
|
- NAT/NAPT IP Sharing
- 64/128-bit WEP encryption and WPA-PSK,
WPA2-PSK security
- DHCP Server/Client
- QoS for critical operations
- SPI Anti-DoS Firewall
|
- 11n: 151dBm,
11g: 151dBm
11b: 181dBm
- 11n (40MHz)
:-68dBm,
11n (20MHz):
-71dBm,
11g: -74dBm,
11b: -87dBm
|
|
|
INSTALLATION KIT
|
|
|
|
- Multi-language EZmax Setup Wizard
|
- 10-90% (Non-condensing)
- 0-45oC
|
|
|
DIMENSIONS
|
CERTIFICATIONS
|
|
|
- 51 (W) x 42 (D) x 17 (H) mm
|
|

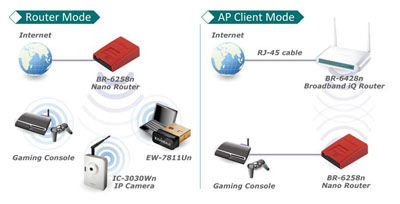

NETWORK SETUP DIAGRAM AND RELATED PRODUCTS
An example of how the BR-6258n can be setup:
Package Contents
1.BR6258n broadband router (1 pcs)
2.Quick installation guide (1 pcs)
3.CDROM with multilanguage setup wizard, multilanguage quick installation guide,and user manual (1pcs)
4.5V 1A USB power adapter (1 pcs)
5.Ethernet cable (1 pcs)
6.USB cable (1 pcs)
|
