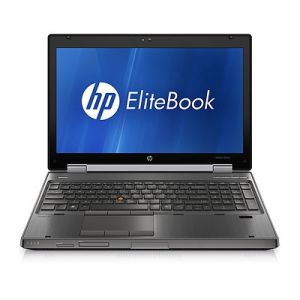

HP EliteBook 8560w Mobile Workstation
Portable Powerhouse. HP’s most versatile Mobile Workstation combines powerful processing with high-end professional graphics in a chiseled design.
Equipped to get the job done
Optimized for Genuine Windows 7 Professional, the 15.6-inch diagonal HD+, FHD or DreamColor display with processors capability and wireless functionality culminate to meet your business needs.
NEW chiseled design
From a precision-stamped chassis to the radial-brushed display cover, every aspect of the workstation exudes power and performance. The purposeful design of the HP EliteBook 8560w translates into true business ruggedness.
This mobile workstation boasts military-grade testing for drop, vibration, dust, altitude and high temperature. Work on the road just became less stressful.
Maximize on-screen performance with your choice of ATI or NVIDIA’s ISV-certified workstation graphics. See this video about how one architect used his HP Mobile Workstation.
Supporting up to 5 displays simultaneously, AMD Eyefinity Technology delivers innovative, graphics display capabilities enabling users to group multiple displays together to form a large viewing surface or use them independently to see different data on various screens simultaneously.
HP Performance Advisor delivers a simple, effective, software wizard that takes you from initial configuration and customization through optimizing your system for each new application and driver you install.
Consistent, accurate color
HP DreamColor technology makes it easy to work in many different color spaces and ensure consistent color appearance from concept to design to production.
Improve productivity and performance
The backlit keyboard ensures you can easily see the keys as you type—even in low-light areas like airplanes.
Run more tasks, processes and applications simultaneously with a mobile workstation that brings together and optimizes multi-core processors, up to four SODIMMS and professional graphics.
SRS Premium Sound delivers an audio experience for users listening to media rich content, presenting multimedia heavy presentations or digital content creators listening to audio or surround sound the way it was meant to be heard.
||Genuine Windows 7 Professional 64
||Intel® Core™ i7-2620M Processor
(4M Cache, 2.70 GHz)
||Intel Core i5 and i7 with vPro technology (select models)
||Mobile Intel QM67 Express
|Dimensions and weight
||Starting at 6.69 lb (Starting at 3 kg)
|Dimensions (w x d x h)
||15 x 10.1 x 1.36 in (38.2 x 25.75 x 3.45 cm)
||8192 MB DDR3 SDRAM (1333MHz)
||SATA II (7200 rpm)
||Blu-ray R/RE DVD+/-RW SuperMulti DL Drive
||15.6" diagonal LED-backlit HD+ WVA anti-glare (1600 x 900); 15.6" diagonal LED-backlit FHD WVA anti-glare (1920 x 1080); 15.6" diagonal LED-backlit FHD UWVA anti-glare DreamColor (1920 x 1080)
||NVIDIA Quadro 1000M with 2 GB dedicated DDR3 video memory
||2 USB 3.0
1 USB 2.0
1 USB 2.0 charging
1 eSATA/USB combo
1 external VGA monitor
1 stereo microphone in
1 stereo headphone/line-out
1 AC power
1 docking connector
1 secondary battery connector
2 in 1 Card Reader (SD/MMC)
||SRS Premium Sound; Integrated stereo speakers; Dual-microphone array; Button for volume mute; function keys for volume up and down; Stereo headphone/line out; Stereo microphone/line in
||Integrated HD Webcam + microphone
||Full-sized spill-resistant keyboard with separate numeric keypad and drains
||Touchpad with on/off button, two-way scroll, gestures, three pick buttons; Pointstick with three additional pointstick buttons
||Integrated Intel 82579LM Gigabit Network Connection (10/100/1000 NIC)
||Intel Centrino Ultimate-N 6300 (3x3) 802.11a/b/g/n + WWAN
|Power and operating requirements
||ENERGY STAR qualified configurations available
||200W Smart AC adapter; 150W Smart AC adapter; 120W Smart AC adapter
||8-cell (83 WHr) Li-Ion battery
HP Long Life 8-cell (75 WHr) Li-Ion battery
|Operating temperature range
||32 to 95F (0 to 35C)
||HP ProtectTools Security Manager
Central Management capable
HP Fingerprint Sensor
Integrated Smart Card Reader
Enhanced Pre-Boot Security (Multiuser / Multifactor)
TPM 1.2 Embedded Security Chip
HP Disk Sanitizer
Security lock slot
Security screw for bottom access door
Support for Intel AT
||Roxio My DVD 2010 SE; Microsoft Office 2010 preloaded (purchase of a Product Key required to activate a full Office 2010 suite); Norton Internet Security 2011 (60-day subscription). Additional software included; see QuickSpecs for details.
||HP 3D DriveGuard (Windows only)
||HP Services offers limited 3-year standard parts and labor onsite, next business day warranty, and toll-free 7 x 24 hardware technical phone support; 1-year limited warranty on primary battery. On-site service and warranty upgrades are also available.
