Part Number:
171396
Usually Ships:
No Longer Available More info
(?) Brand:
Manuf No:
WD10EARX
Shipping Weight:
1 KG (Includes product packaging)
Desktop Hard Drives

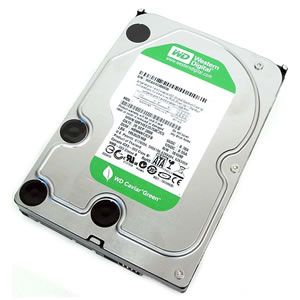

WD10EARX

WD Caviar Green

Features

Cool, Quiet, Eco-Friendly.

Massive capacity.
WD leads the way; pioneering capacity to deliver a massive 3 TBs of storage on a single drive.


The world's largest capacity internal hard drive.
WD Caviar Green SATA drives now deliver up to a massive 3 TB's of storage on a single drive.

WD meets the technological challenges of implementing 3 TB SATA hard drives.
SATA hard drives are now capable of storing up to 3 TB of data on a single hard drive. WD is leading the way in the industry, providing you with solutions for implementing 2.19 TB and larger drives.

Perfect for external drives.
External drive manufacturers can eliminate the need for a fan in a high-capacity product by utilizing the cool and quiet operation of WDCaviar Green hard drives.

Reduced power consumption.
Reduced power consumption makes it possible to build systems with higher capacities and the right balance of system performance, ensured reliability, and energy conservation.


IntelliSeek.
Calculates optimum seek speeds to lower power consumption, noise and vibration.

IntelliPower.
A fine-tuned balance of spin speed, transfer rate and caching algorithms designed to deliver both significant power savings and solid performance. Additionally, WD Caviar Green drives consume less current during startup allowing lower peak loads on systems as they are booted.

NoTouch ramp load technology.






The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit.

Cool and quiet.

WD GreenPower Technology yields lower operating temperatures for increased reliability and low acoustics perfect for ultra-quiet PCs and external drives.


Advanced Format (AF) .

Technology being adopted by WD and other drive manufacturers as one of multiple ways to continue growing hard drive capacities. AF is a more efficient media format that enables increased areal densities. (RX, RS and RSDTL models only)
Ideal for:
PCs, external storage and other devices that require lower power consumption and cool, quiet operation

Desktop / Consumer RAID Environments - WD Caviar Green Hard Drives are tested and recommended for use in consumer-type RAID applications. (RAID-0 / RAID-1)*

Did you know...
It's easy to install an internal hard drive in your computer.

WD Caviar Green 1 TB SATA Hard Drives ( WD10EARX)

Specifications

Performance Specifications
  Rotational Speed IntelliPower *
  Buffer Size 64 MB

Transfer Rates
  Buffer To Host (Serial ATA) 6 Gb/s (Max)

Physical Specifications
  Formatted Capacity 1,000,204 MB
  Capacity 1 TB
  Interface SATA 6 Gb/s
  User Sectors Per Drive 1,953,525,168

Physical Dimensions
English
  Height 1.028 Inches
  Depth 5.787 Inches
  Width 4.00 Inches
  Weight 1.32 Pounds

Metric
  Height 26.1 mm
  Depth 147 mm
  Width 101.6 mm
  Weight 0.60 kg

Environmental Specifications
Shock
  Operating Shock (Read) 65G, 2 ms
  Non-operating Shock 300G, 1 ms

Acoustics
  Idle Mode 23 dBA (average)
  Seek Mode 0 27 dBA (average)
  Seek Mode 3 24 dBA (average)

Temperature (English)
  Operating 32 F to 140 F
  Non-operating -40 F to 158 F

Temperature (Metric)
  Operating -0 C to 60 C
  Non-operating -40 C to 70 C

Electrical Specifications
Current Requirements
  12 VDC
  Read/Write 1.47 A

  Power Dissipation
  Read/Write 5.30 Watts
  Idle 3.30 Watts
  Standby 0.70 Watts
  Sleep 0.70 Watts

As used for storage capacity, one megabyte (MB) = one million bytes, one gigabyte (GB) = one billion bytes, and one terabyte (TB) = one trillion bytes. Total accessible capacity varies depending on operating environment. As used for buffer or cache, one megabyte (MB) = 1,048,576 bytes. As used for transfer rate or interface, megabyte per second (MB/s) = one million bytes per second, megabit per second (Mb/s) = one million bits per second, and gigabit per second (Gb/s) = one billion bits per second.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 2 Years Warranty

Full manufacturers warranty details are available at the manufacturers (Western Digital) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
