All stock codes associated to this product
WS-6V6.0TL/R5-AP, WS6V6.0TL/R5AP, WS6V6.0TL/R5I, WS-6V6.0TL/R5-I, WS6V60TL/R5I, 4981254589533
TeraStation Pro 6 WSS - WS-6VL/R6
6 TB WS-6V6.0TL/R5
Description
TeraStation Pro 6 WSS Storage Server provides high performance six hard drive RAID based network storage with the power of a Windows Server operating system. Powered by Microsoft Windows Storage Server 2008 R2 Workgroup Edition, TeraStation Pro 6 WSS provides seamless capability with Windows computers and servers. The TeraStation Pro 6 WSS incorporates the powerful Intel Atom Dual-Core Processor providing class-leading performance, enabling the ability to focus on concurrent tasks with minimal performance degradation: experience maximum network throughput while a replication job runs in the background or perform fast search indexing while an anti-virus scan is occurring. Additionally, TeraStation Pro 6 WSS supports full disk encryption and support for NTFS for very specific file-level security. Native Active Directory support provides integration with large Windows networks.
Overview
Features
- Intel® Atom™ 1.66 GHz Dual Core / 2 GB RAM
- Windows Storage Server 2008 R2 Workgroup Edition
- iSCSI Target and Initiator
- Front loading hot swap hard drives with lockable front panel
- Active Directory support
- Disk quota (soft quota) support prevents users/groups from consuming too much disk space
- Scheduled shut down eliminates unnecessary access and reduces energy costs
- DFS (Distributed File System),Namespace & Replication support
- Hot swap hard drive trays behind the front panel for easy drive access and replacement

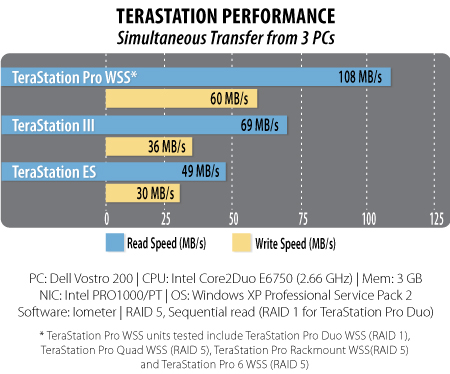

- Improved CPU speed enables faster data transfer
- 10/100/1000 Gigabit Ethernet with Jumbo Frame
- Two Ethernet ports for port trunking and load balancing
- Works with VMware and Hyper-V (SAN storage for Virtual Machines)
- Supported RAID levels: 0, 1, 5, JBOD (Individual Disks)
- BitLocker AES-256 bit hard drive encryption
- Large silent fan cools hard drive efficiently
- Advanced ventilation design reduces internal heat
- LCD Display shows important TeraStation information and disk status
- Windows Server 2008 Server Manager Utility for easy deployment and configuration
- Internet Information Services (IIS) support
- 2 USB 3.0 ports and 2 USB 2.0 ports for external drive, printer and UPS connectivity
- 10 licenses of NovaBACKUP® Business Essentials v12 Included: Back up 10 Windows PCs, Windows Servers, Exchange or MS SQL databases
- 3-Year Limited Warranty
Specifications
LAN Interface
| Standard Compliance |
IEEE802.3ab / IEEE802.3u / IEEE802.3 |
| Data Transfer Rates |
10 / 100 / 1000 Mbps |
| Connector Type |
RJ-45 |
| Number of Ports |
2 |
Internal Hard Drives
| Number of Drives |
6 |
| Drive Interface |
SATA 3 Gb/s |
| Supported RAID Levels |
0, 1, 5, JBOD (Individual Disks) |
USB Interface
| Standard Compliance |
USB 3.0 / USB 2.0 |
| Number of Ports |
2 USB 3.0 / 2 USB 2.0 |
| Data Transfer Rates |
Max: 5 Gbps (USB 3.0)
Max: 480 Mbps (USB 2.0) |
Protocol Support
| Networking |
TCP/IP |
| File Sharing |
CIFs/SMB, NFS, IIS, (FTP/FTPS, HTTP/HTTPS) |
| Directory Integration |
LDAP, Active Directory |
| Management |
Remote Desktop Connection (RDP), Terminal Services Client |
| Time Synchronization |
NTP |
Other
| Dimensions (WxHxD in.) |
11.8 x 8.5 x 9.1 |
| Weight (lbs) |
Average 21.6 |
| Operating Environment (Fahrenheit) |
41-95 |
| Setup Utility OS Support |
Windows Operating Systems |
| Client OS Support |
Windows 7 (32-bit/64-bit), Windows Vista (32-bit/64-bit), Windows XP, Windows 2000, Windows Server 2008, Windows Server 2003, Windows 2000 Server |
| Power Supply |
Internal, AC 100-240V 50/60 Hz |
