Dual Intelligent Processors
ASUS continues to put innovation at its forefront, launching the worlds first Dual Intelligent Processors technology. This exclusive design consists of the EPU (Energy Processing Unit), which automatically monitors power consumption system-wide to ensure efficiency, and the TPU (TurboV Processing Unit) - guaranteeing superior performance for every task, bringing users an unbeatable experience.
Auto Tuning
Auto System Level Up
Achieve extreme yet stable overclocking results automatically with Auto Tuning! With built-in stability testing, Auto Tuning allows beginners to easily upgrade their CPU performance at no extra cost.
ASUS Exclusive Features

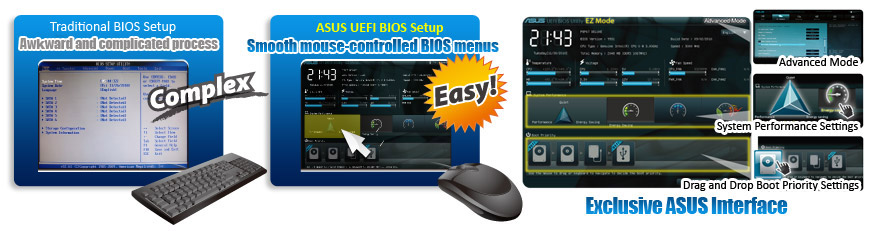

UEFI BIOS (EZ Mode)
Flexible & Easy BIOS Interface
Exclusive to ASUS motherboards, its UEFI (Unified Extensible Firmware Interface) is the first ever mouse-controlled graphical BIOS interface designed with dual selectable modes. It delivers a user-friendly interface that goes beyond traditional keyboard-only BIOS controls to enable more flexible and convenient input with quick scrolling. Users can easily navigate the UEFI BIOS with the smoothness of their operating system. Quick and simple overclocking and setup sharing is facilitated by the F12 hotkey BIOS snapshot feature. The exclusive EZ Mode displays frequently-accessed setup info, while the Advanced Mode is for experienced performance enthusiasts that demand far more intricate system control, including detailed DRAM information.
Exclusive ASUS Interface
- EZ Mode - gives easy access to selectable, optimized system modes, clear system info display and drag and drop boot prioritizing
- Advanced Mode - for experienced performance enthusiasts that demand intricate system settings
AI Suite II
One-stop Access to Innovative ASUS Features
With its user-friendly interface, ASUS AI Suite II consolidates all exclusive ASUS features into one simple-to-use package. It allows users to supervise overclocking, energy management, fan speed, voltage, and sensor readings. This all-in-one software offers diverse and easy to use functions, with no need to switch back and forth between different utilities.
CPU, Chipset and Graphics features
AMD Socket AM3+ for AMD FX Series CPU up to 8-core
AMD FX-Series / Phenom II / Athlon II / Sempron 100 Series Processors (socket AM3+/AM3)
M5A97 supports AMD AM3+/AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 memory support and accelerates data transfer rate up to 4800MT/s via HyperTransport 3.0 based system bus. This motherboard also supports AMD CPUs in the new 32nm manufacturing process.
AMD 970 Chipset
AMD 970 Chipset is designed to support up to 4800MT HyperTransport 3.0 (HT 3.0) interface speed and PCI Express 2.0 x16 graphics. It is optimized with AMDs latest AM3+ and multi-core CPUs to provide excellent system performance and overclocking capabilities.
CrossFireX Support
Flexible Multi-GPU solutions, Your Weapon of Choice!
ATI's CrossFireX boosts image quality along with rendering speed, eliminating the need to scale down screen resolution to get high quality images. CrossFireX allows higher antialiasing, anisotropic filtering, shading and texture settings. Adjust your display configurations, experiment with the 3D settings, and check the effects with a real-time 3D-rendered previews within ATI Catalyst Control Center.
RoHS
GreenASUS and ErP Ready
The motherboard is European Unions Energy-related Products (ErP) ready, and ErP requires products to meet certain energy efficiency requirements in regards to energy consumptions. This is in line with ASUS vision of creating environment-friendly and energy-efficient products through product design and innovation to reduce carbon footprint of the product and thus mitigate environmental impacts.
M5A97 Product Overview
Other ASUS Features
TurboV
Adjust system performance parameters with just a few clicks away.
MemOK!
Quickly ensures memory boot compatibility.
All Solid Capacitor
Uses 100% All High-quality Conductive Polymer Capacitors.
Specifications
| CPU |
AMD AM3+ FX/Phenom II/Athlon II/Sempron 100 Series Processors
Supports AM3+ 32 nm CPU
Supports CPU up to 140 W
AMD Cool 'n' Quiet Technology |
| Chipset |
AMD 970/SB950 |
| Memory |
4 x DIMM, Max. 32GB, DDR3 2133(O.C.)/1866/1600/1333/1066 Hz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
* Due to OS limitation, when installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows OS when you want to install 4GB or more memory on the motherboard.
* Due to CPU spec., AMD 100 series CPUs support up to DDR3 1066MHz. With ASUS design, this motherboard can support up to DDR3 1333MHz. |
| System Bus |
Up to 4.8 GT/s HyperTransport 3.0 |
| Multi-GPU Support |
Supports AMD Quad-GPU CrossFireX Technology |
| Expansion Slots |
1 x PCIe 2.0 x16 (blue)
1 x PCIe 2.0 x16 (x4 mode, black)
2 x PCIe 2.0 x1
2 x PCI |
| Storage |
AMD SB950 controller :
6 x SATA 6Gb/s port(s), gray
Support Raid 0, 1, 5, 10 |
| LAN |
Realtek 8111E , 1 x Gigabit LAN Controller(s) |
| Audio |
Realtek ALC 887 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- ASUS Noise Filter
- Optical S/PDIF out port(s) at back panel |
| USB Ports |
ASMedia USB 3.0 controller :
2 x USB 3.0 port(s) (2 at back panel, blue)
AMD SB950 controller :
12 x USB 2.0 port(s) (6 at back panel, black, 6 at mid-board) |
| Overclocking Features |
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall) |
| Special Features |
ASUS Dual Intelligent Processors - TPU & EPU :
ASUS TPU :
- Auto Tuning
- TurboV
ASUS EPU :
- EPU
ASUS Power Design :
- 4 +2 Phase Power Design
ASUS Exclusive Features :
- MemOK!
- AI Suite II
- Ai Charger+
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS O.C. Profile
- ASUS EZ Flash 2
- ASUS MyLogo 2
- Multi-language BIOS
ASUS Q-Design :
- ASUS Q-Slot |
| Back I/O Ports |
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x LAN (RJ45) port(s)
2 x USB 3.0
6 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s) |
| Internal I/O Ports |
3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x Power Fan connector(s) (1 x 3 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x MemOK! button(s)
1 x Clear CMOS jumper(s) |
| Accessories |
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s) |
| BIOS |
32 Mb Flash ROM, UEFI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2 |
| Manageability |
WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE |
| Support Disc |
Drivers
ASUS Utilities
ASUS Update
Anti-virus software (OEM version) |
| Form Factor |
ATX Form Factor
12 inch x 9 inch ( 30.5 cm x 22.9 cm ) |
