All stock codes associated to this product
M3204CCBA, 13LGM3204CCBA

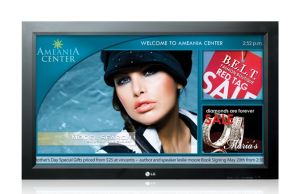

32" class (31.5" measured diagonally) LCD Widescreen HD Capable Monitor
M3204CCBA
Deliver HD content via IP with the M3204CCBA LCD monitor. As a part of the SuperSign Digital Signage Solution, the M3204CCBA is built-in ready for the NC2000 media player. A 20,000:1 DCR contrast ratio, 450 cd/m brightness and 1366x768 resolution results in detailed and bright images displaying your message with the impact you want. The M3204CCBA is manufactured at the highest quality level and is designed for 24/7 continuous operation. Whether for way finding, information displays, menu boards, or QSR signage, the M3204CCBA brings display innovation for your digital signage needs.
Features
- Native Display Resolution
1366 x 768 (WXGA)
- High Brightness
450 cd/m2
- Contrast Ratio
3,000:1 Typ. 20,000:1 DCR
- IPS Panel - Ultra Wide 178/178 Viewing Angle
- Commercial Grade - Designed for 24/7 continuous operation
- Viewing Angle and Life Expectancy
Enhanced in Portrait Mode
- Built-In Ready for NC2000
- RJ-45 LAN Control
- HDMI/DVI with HDCP
- RS-232C Control
- Convenient External Speaker-Out
- ENERGY STAR 5.0 and RoHS Compliant
- Information Display for Serial Number
- Split Zoom Self video wall
Up to 5 x 5 matrix adjusts for bezel width
- USB Playback
- USB Port
- Temperature Sensor
- Optional Hidden Speakers
- 3 Year Limited Warranty
- Parts and Labor
Specifications
PANEL
LCD Panel Type - 32”
Display Area - 31.5” diagonal
Aspect Ratio - 16:9
Native Resolution - 1366 x 768 (WXGA)
Pixels(H x V x 3) - 3,147 ,264
Brightness - 450 cd/m2
Contrast Ratio - 3,000:1 (Typ.), 20,000:1(DCR)
Viewing Angle - 178°/178°
Color Depth - 16.7Million
Response Time - 6.5ms (G to G)
Surface Treatment - Hard Coating (3H), Anti-glare
MTBF - 50,000 Hr., Portrait & Landscape
VIDEO
Max Input Resolution - 1600 X 1200 @ 60Hz(RGB)
Recommended Resolution - 1360 X 768 @ 60Hz (RGB, HDMI/DVI)
H-Scanning Frequency - 30 ~83kHz (RGB, HDMI/DVI)
V-Scanning Frequency - 56~75 Hz (RGB), 60 Hz (HDMI/DVI)
Pixel Frequency - 162 MHz (RGB), 148.5 MHz (HDMI/DVI)
Sync Compatability - Separate/Composite/Digita
Video Input - RGB, HDMI/DVI
Picture mode - Vivid/Standard/Cinema/Sports/Game/
Color temperature - Warm/Medium/Cool
REAR INPUTS /OUTPUTS
Component Video - 1 Hi-Res
PC Input via 15-Pin Sub "D" - 1/1
Composite Video Input/Output - 1/1
Audio Output - 1
Audio Inputs - 2 Plus PC Sound
HDTV Formats - Component: 720p/1080i
HDMI with HDCP - Yes
RS-232C Input/Output - 1/1
RJ-45 Lan Control - Yes
AUDIO
Audio Power - 20W(10Wx 2)
Speaker On/off - Yes
Sound mode - Standard, Music, Cinema, Sports, Game
SPECIAL FEATURES
Temperature Sensor - Yes
Split Zoom (Self VideoWall, 5 x 5Max) - Yes, supports natural mode
Source Selection - "HDMI/DVI/RGB/Component/AV,SuperSign(Option)"
Brightness/Contrast - Yes
Set-up - "English/French/Spanish/Italian/German/Portuguese/Korean/Japanese/Chinese/Russian"
ISMMethod - Normal/White Wash/Orbiter/Inversion
Advanced - "Color Temp, Dynamic Contrast, Dynamic Color,Noise Reduction, Gamma, Black Level, Film Mode"
Time - "Clock/On/off Timer/Sleep Timer/Auto off, Poweron Delay"
Information Display - "Serial Number, MNT S/W Version, LAN S/W Version,IP Address, MAC Address"
CABINET
Monitor Dimension w/opt. stand 31.6" x 19.4" x 3.9"
Weight w/opt. stand - 29.1 lbs
