Part Number:
174103
Usually Ships:
1-3 Days More info
(?) Brand:
Manuf No:
UC560-T1E1-K9
UC560T1E1K9
Shipping Weight:
5 KG (Includes product packaging)

Overview

The Cisco  Unified Communications 560 (Figure 1), a central part of the Cisco Smart Business Communications System, is an affordable unified communications appliance that provides voice and data communications, voicemail, automated attendant, video, security, and wireless capabilities while integrating with existing desktop applications such as calendar, email, and customer relationship management (CRM) programs. This easy-to-manage platform supports up to 104 phones and voice mailboxes and provides flexible deployment options based on your needs, including support for a wide array of IP phones, public switched telephone network (PSTN) interfaces, and Internet connectivity. This reference guide describes the specifications and capabilities of the Cisco Unified Communications 560 (UC 560).

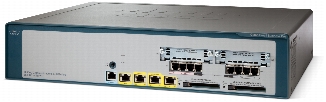

Figure 1. Cisco UC 560: FXO Model

Product Part Numbers

The Cisco UC 560 is available in two base versions: an FXO (analog) model and a Basic Rate Interface (BRI) base model. The FXO model is also available with a built-in T1/E1 interface. With ease of ordering as a focus area, each has its own product ID. In addition, there is one software licensing product, multiples of which can be installed to achieve the desired user count. Table 1 lists the part numbers for the Cisco UC 560.

Table 1. Product Part Numbers for the Cisco UC 560

Part Number

Description

UC560-FXO-K9

UC 560 system with 4 FXO, 4 FXS, and 2 voice interface card (VIC) expansion slots

UC560-BRI-K9

UC 560 system with 2 BRI, 4 FXS, and 2 VIC expansion slots

UC560-T1E1-K9

UC 560 system with 4 FXO, 4 FXS, 1 T1/E1, and 1 VIC expansion slot

L-UC-PRO-8U=

Software license upgrade, authorizing an additional 8 users (e-delivery)



Interfaces and Modules

The Cisco UC 560 has built-in interfaces that offer fixed configurations, reducing complexity. In addition, this platform offers voice interface card (VIC) slots to support additional Cisco VIC modules. Table 2 lists the built-in interfaces, and Table 3 lists the modular interfaces supported on the UC 560.

Table 2. Built-In Interfaces Supported on the Cisco UC 560

Interface

Description

Music on hold (MoH) port

Single 3.5-mm audio port

Onboard Ethernet ports

Three 10/100/1000 Ethernet expansion ports1
One 10/100/1000 WAN uplink

FXS and direct inward dialing (DID) ports

4 built-in FXS ports (DID is available via the additional module listed in Table 3)

PSTN interfaces (FXO, BRI, or T1/E1)

4 FXO, 2 BRI, or 4 FXO with built-in T1/E1

1One of the three expansion ports defaults to a PC/LAN port to enable configuration of the box and/or to connect to a server. The port can be changed to function as an expansion port.



Table 3. Modular VIC Cards for the Cisco UC 560

Part Number

Description

VIC-4FXS/DID, VIC3-4FXS/DID

4-port FXS/DID module

VIC2-2FXS

2-port FXS module

VIC2-2FXO

2-port FXO module

VIC3-2FXS/DID

2-port FXS/DID module

VIC2-4FXO

4-port FXO module

VIC2-2BRI-NT/TE

2-port BRI NT/TE module

VWIC2-1MFT-T1/E1

1-port T1/E1 for voice (ISDN Primary Rate Interface [PRI] and channel associated signaling [CAS]); data is not supported

VWIC2-2MFT-T1/E11

2-port T1/E1 for voice (ISDN PRI and CAS); data is not supported

1A maximum of two T1/E1 cards are supported on a UC 560. VWIC2-2MFT-T1/E1 will not work on a UC560-T1E1-K9 model.



Licensing

The Cisco UC 560 includes 16 user licenses. These licenses enable the use of Cisco IP phones and allow users to access the IP PBX features, including voicemail. In addition, supplementary user licenses are bundled to help with deployments that need a few extra licenses. For additional licensing needs, the L-UC-PRO-8U= may be ordered. This increases the existing license count by eight. Table 5 lists the number of users supported based on the hardware/license configurations. The UC 560 also has built-in licenses for unified communications features. Table 4 lists the license count bundled with the system for each feature. Guidance for licenses associated with unified messaging on the UC 560 is included in Table 6.

Table 4. Licensing and User Capacity for the Cisco UC 560

License Configuration

Description

UC560 (FXO, BRI, or T1E1 model)

16 user licenses, 2 supplemental user licenses

UC560 (FXO, BRI, or T1E1 model) and 1 x L-UC-PRO-8U=

24 user licenses, 4 supplemental user licenses

UC560 (FXO, BRI, or T1E1 model) and 2 x L-UC-PRO-8U=

32 user licenses, 4 supplemental user licenses

UC560 (FXO, BRI, or T1E1 model) and 3 x L-UC-PRO-8U=

40 user licenses, 4 supplemental user licenses

UC560 (FXO, BRI, or T1E1 model) and 4 x L-UC-PRO-8U=

48 user licenses, 4 supplemental user licenses

UC560 (FXO, BRI, or T1E1 model) and 5 x L-UC-PRO-8U=

56 user licenses, 4 supplemental user licenses

UC560 (FXO, BRI, or T1E1 model) and 6 x L-UC-PRO-8U=

64 user licenses, 4 supplemental user licenses

UC560 (FXO, BRI, or T1E1 model) and 7 x L-UC-PRO-8U=

72 user licenses, 6 supplemental user licenses

UC560 (FXO, BRI, or T1E1 model) and 8 x L-UC-PRO-8U=

80 user licenses, 6 supplemental user licenses

UC560 (FXO, BRI, or T1E1 model) and 9 x L-UC-PRO-8U=

88 user licenses, 6 supplemental user licenses

UC560 (FXO, BRI, or T1E1 model) and 10 x L-UC-PRO-8U=

96 user licenses, 6 supplemental user licenses

UC560 (FXO, BRI, or T1E1 model) and 11 x L-UC-PRO-8U=

104 user licenses, 6 supplemental user licenses



Table 5. Feature Licensing for the Cisco UC 560

Feature

Number of Licenses Included

Virtual LANs (VLANs)

15

VPN tunnels1

20

Remote teleworker sites

20

Users per teleworker site

5

Multisite deployments

5

1Includes IP Security (IPsec), Secure Sockets Layer (SSL), or generic routing encapsulation (GRE) tunnels.



Table 6. Unified Messaging Licensing for the Cisco UC 560

Configuration

Unified Messaging Licenses

16-user system

24 mailboxes1

24-user system

40 mailboxes4

32-user system

48 mailboxes4

40-user system

56 mailboxes4

48-user system

64 mailboxes4

56-user system

72 mailboxes4

64-user system

80 mailboxes4

72-user system

92 mailboxes4

80-user system

100 mailboxes4

88-user system

108 mailboxes4

96-user system

116 mailboxes4

104-user system

124 mailboxes4

Default voicemail storage per mailbox

12 minutes

Sessions to voicemail and automated attendant

12

Internet Message Access Protocol (IMAP) sessions

202

1Any combination of personal mailboxes and general delivery mailboxes can be used. 32 hours of voicemail storage is available by default across all user configurations. For additional voicemail storage, a higher-capacity compact flash, 4 GB (UC500-4GB=) or 8 GB (UC500-8GB=), may be used.
2There are 20 simultaneous sessions available between IMAP Client and IMAP server. If all 20 sessions are used up, the remaining session requests will be rejected by the IMAP server. IMAP clients will automatically attempt to establish session with the server once some of the server ports are freed up. This does not limit the number of IMAP clients to 20.



Basic Call Center Capabilities

The Cisco UC 560 supports basic automatic call distribution (B-ACD) that can help answer outside calls with greetings and menus and allow callers to select the appropriate departments. B-ACD also provides managed call queues for calls that are waiting to be answered. Table 7 lists the B-ACD capabilities of the UC 560.

Table 7. Cisco UC 560 B-ACD Capabilities

Feature

Number

Hunt groups associated with B-ACD

10

Calls allowed in each call queue

30

Agents (members) for each hunt group

20

Statistics accumulated for all B-ACD groups

168 hours

Hunt groups used with automated attendant

3



In addition to B-ACD, the Cisco UC 560 integrates with Cisco Unified Contact Center Express (UCCX). UCCX works with up to a maximum of 12 users (agents and supervisor combined) on the UC 560.

Voice Resource Utilization

The Cisco UC 560 includes eight digital signal processors (DSPs) that enable digitized voice processing on the platform. The DSP resources available on the platform are used for various unified communications features, namely support of analog and digital VICs, prescheduled or ad hoc voice conference calls, and translation of digitized voice from a less complex codec (such as g711) to a more complex codec (such as g729)-typically used for deployments that use IP trunking (SIP or H.323) for PSTN access or multisite interconnection.
Each DSP can support 16 g711 channels or 8 g729 channels. This enables a total of 64 g711 channels on the Cisco UC 560. Table 8 indicates the DSP resource utilization for each feature. Tables 9 and 10 show a few deployment scenarios based on combinations of these features.

Table 8. DSP Resource Utilization on the Cisco UC 560

Feature

DSP Resource Utilization

Support for built-in FXS ports

4 channels

Support for built-in FXO ports

4 channels

Support for built-in music on hold (MoH) port

2 channels

Support for T1/E1 voice/WAN interface card (VWIC)

24 channels1

Transcoding (g711 to g729)

2 channels

Conferencing2

16 channels

1Total DSP resources will depend upon the number of channels provisioned in the T1.
2Conferencing always uses up an entire DSP. The rest of the features can share a DSP. The number of sessions available will vary depending upon the codec used in a conference call.



Tables 9 and 10 list the maximum sessions for either ad hoc conferencing or meet-me conferencing. DSP resources allocated for conferencing can be shared by both features, and a mix of these can be configured. Below are a few examples based on Table 9. The concept of sharing conferencing resources applies to Table 10 as well.
Ad hoc 56x8 Meet-me 0x0
Ad hoc 28x8 Meet-me 28x8
Ad hoc 56x4 Meet-me 7x32
The above examples indicate Sessions x Participant.
The Transcoding column lists the maximum number of transcoding sessions that the system can be configured for, for a given configuration of DSPs. For example, the first row in Table 9 indicates that a maximum of three transcoding sessions are available if seven DSPs are allocated for conferencing. If more transcoding sessions are required, DSP resources will need to be diverted from conferencing to transcoding. For example, in the second row of Table 9, one of the DSPs is dedicated to transcoding, leaving six DSPs for conferencing. Notice the increase in the number of transcoding sessions and the drop in the number of conferencing sessions.

Table 9. DSP Resources: Scenario 1

UC500 Model

Additional Voice Card (VIC)

SIP Trunk Preferred Codec

Ad-hoc Conference (Sessions x Participants)

Meet-me Conference (Sessions x Participants)

Comments

Transcoding

UC 560

None

No SIP Trunk or G.711

Up to a maximum of 56x8 or 104x4

Up to a maximum of 48x8 or 24x16 or 12x32

1 DSP for supporting voice ports and transcoding sessions
Remaining 7 DSPs used for conferencing

A maximum of 3 transcoding sessions for this configuration

G.729

Transcoding sessions recommended

Up to a maximum of 12x8 or 24x4

Up to a maximum of 12x8 or 6x16 or 3x32

1 DSP for supporting voice ports and transcoding sessions
1 DSP reserved for transcoding
Remaining 6 DSPs used for conferencing

A maximum of 11 transcoding sessions for this configuration

2FXS

2FXS/DID

2FXO

No SIP Trunk or G.711

Up to a maximum of 56x8 or 104x4

Up to a maximum of 56x8 or 28x16 or 14x32

1 DSP for supporting voice ports and transcoding sessions
Remaining 7 DSPs used for conferencing

A maximum of 2 transcoding sessions for this configuration

G.729

Transcoding sessions recommended

Up to a maximum of 12x8 or 24x4

Up to a maximum of 12x8 or 6x16 or 3x32

1 DSP for supporting voice ports and transcoding sessions
1 DSP reserved for transcoding
Remaining 6 DSPs used for conferencing

A maximum of 10 transcoding sessions for this configuration

4FXS

4FXS/DID

4FXO

2BRI NT/TE

No SIP Trunk or G.711

Up to a maximum of 56x8 or 104x4

Up to a maximum of 56x8 or 28x16 or 14x32

1 DSP for supporting voice ports and transcoding sessions
Remaining 7 DSPs used for conferencing

A maximum of 1 transcoding sessions for this configuration

G.729

Transcoding sessions recommended

Up to a maximum of 12x8 or 24x4

Up to a maximum of 12x8 or 6x16 or 3x32

1 DSP for supporting voice ports and transcoding sessions
1 DSP reserved for transcoding
Remaining 6 DSPs used for conferencing

A maximum of 9 transcoding sessions for this configuration



Table 10. DSP Resources: Scenario 2

UC500 Model

Additional Voice Card (VIC)

SIP Trunk Preferred Codec

Ad-hoc Conference (Sessions x Participants)

Meet-me Conference (Sessions x Participants)

Comments

Transcoding

UC 560

1MFT T1/E1

No. of Ch 6

No SIP Trunk or G.711

Up to a maximum of 56x8 or 104x4

Up to a maximum of 56x8 or 28x16 or 14x32

1 DSP for supporting voice ports, fractional T1/E1 and transcoding sessions
Remaining 7 DSPs used for conferencing

0 session for 6 ch

1 session for 4 ch

2 sessions for 2 ch

G.729

Transcoding sessions recommended

Up to a maximum of 12x8 or 24x4

Up to a maximum of 12x8 or 6x16 or 3x32

1 DSP for supporting voice ports, fractional T1/E1 and transcoding sessions
1 DSP reserved for transcoding
Remaining 6 DSPs used for conferencing

8 sessions for 6 ch

9 sessions for 4 ch

10 sessions for 2 ch

1MFT T1/E1

6 No. of Ch 22

No SIP Trunk or G.711

Up to a maximum of 48x8 or 96x4

Up to a maximum of 48x8 or 24x16 or 12x32

2 DSPs for supporting voice ports, and transcoding sessions
1 DSP reserved for transcoding
Remaining 5 DSPs used for conferencing

0 sessions for 22 ch

1 session for 20 ch

2 sessions for 18 ch

And so on...

G.729

Transcoding sessions recommended

Up to a maximum of 10x8 or 20x4

Up to a maximum of 10x8 or 5x16

3 DSPs for supporting voice ports, and transcoding sessions
0 DSP reserved for transcoding
Remaining 5 DSPs used for conferencing

8 sessions for 22 ch

9 sessions for 20 ch

10 sessions for 18 ch

And so on...

1MFT Full T1

No SIP Trunk or G.711

Up to a maximum of 40x8 or 80x4

Up to a maximum of 40x8 or 20x16 or 10x32

3 DSPs for supporting voice ports, and transcoding sessions
Remaining 5 DSPs used for conferencing

A maximum of 7 transcoding sessions, disable conferencing for more transcoding

G.729

Transcoding sessions recommended

Up to a maximum of 10x8 or 20x4

Up to a maximum of 10x8 or 5x16

3 DSP for supporting voice ports, and transcoding sessions
0 DSP reserved for transcoding
Remaining 5 DSPs used for conferencing

A maximum of 7 transcoding sessions, disable conferencing for more transcoding

1MFT Full T1

No SIP Trunk or G.711

Up to a maximum of 40x8 or 80x4

Up to a maximum of 40x8 or 20x16 or 10x32

3 DSPs for supporting voice ports, and transcoding sessions
Remaining 5 DSPs used for conferencing

A maximum of 4 transcoding sessions, disable conferencing for more transcoding

G.729

Transcoding sessions recommended

Up to a maximum of 10x8 or 20x4

Up to a maximum of 10x8 or 5x16

3 DSP for supporting voice ports, and transcoding sessions
0 DSP reserved for transcoding
Remaining 5 DSPs used for conferencing

A maximum of 4 transcoding sessions, disable conferencing for more transcoding

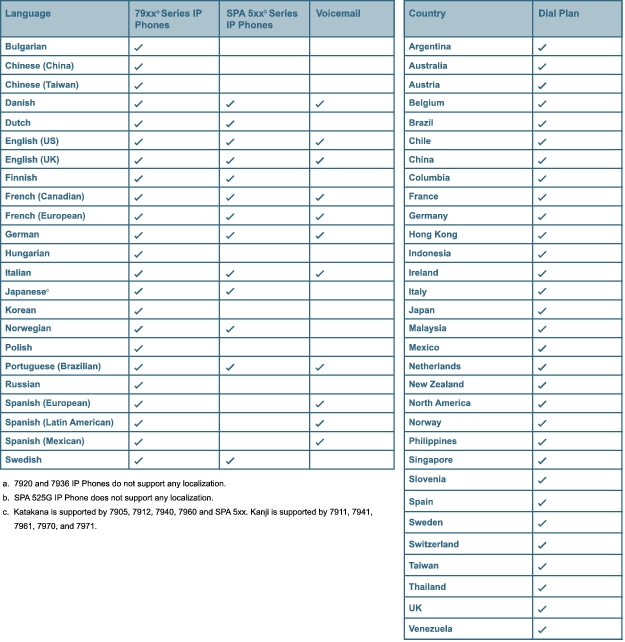

Localization

Cisco UC 500 series is enabled with localization for IP Phones, Voicemail and Dial Plan. Table 11 summarizes the localization support on the platform.

Table 11. Localization support on UC 500 Series

Hardware Specifications

The hardware specifications for the Cisco UC 560 include physical specifications, environmental specifications, power specifications, and regulatory compliance. Table 12 lists the physical specifications. Table 13 lists the power requirements for the platform. Table 14 provides the environmental specifications, and Table 15 shows the compliance information.

Table 12. Physical Specifications for the Cisco UC 560

Feature

Description

Packaging type

Rack Mount form factor (2 rack units high)

Console port (upto115.2 kbps)

1

Auxiliary port1

1

1The auxiliary port on the Cisco UC 560 is the same as the console port. The port has the ability to auto-detect modem tones and switch over to the auxiliary port capability.



Table 13. Power Specifications for the Cisco UC 560

Feature

Description

AC input voltage

100 to 240V AC

AC input frequency

50 to 60 Hz

AC input current

3 to 1.5A (100 to 240V)

AC input surge current

30 to 60A (100 to 240V)

Power dissipation (AC)

67W



Table 14. Environmental Specifications for the Cisco UC 560

Feature

Description

Operating temperature

32 to 104F

Operating humidity

10% to 85% noncondensing, operating
5% to 95% noncondensing, nonoperating

Nonoperating temperature

4 to 149F (-20 to 65C)

Operation altitude

104F (40C) at sea level
87.8F (31C) at 6000 ft (1800 m)
77F (25C) at 10,000 ft (3000 m)
34.7F (1.5C) per 1000 ft

Dimension
(H x W x D)

3.5 x 17.25 x 13.78 in.
(8.89 x 43.82 x 35.00 cm)

Power supply dimensions (H x W x D)

Internal power supply

Rack height

2 rack units (RU)

Weight (fully configured)

14.5 lb (6.58 kg)

Noise level (minimum and maximum)

Normal operating temperature:

< 81F (27C): 37 dBA
< 93F (34C): 44 dBA
54 dBA (at maximum fan speed)



Table 15. Regulatory Compliance for the Cisco UC 560

Category

Compliance

Safety

IEC 60950-1
AS/NZS 60950.1
CAN/CSA-C22.2 No. 60950-1
EN 60950-1
UL 60950-1

Immunity

EN 55024
EN 300-386
EN 61000-6-2
EN 50082-1
EN 55024 (CISPR 24)

Electromagnetic compatibility (EMC)

FCC Part 15, ICES-003
EN55022, CISPR 22
AS/NZS
CNS13438
VCCI V-3
EN 55024
EN 300-386
EN 61000-3-2
EN 61000-3-3
EN 50082-1
EN 55024 (CISPR 24)
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
EN 61000-4-11
EN 61000-6-2

Telecommunications

FXS/DID
TIA-968-A3
CS-03 Part I
ACIF S002
ACIF S003
ANZ PTC200
ISDN BRI S/T (voice and data BC)
TIA-968-A3
CS-03 Part VI
TBR3
ACIF S031
ANZ PTC200
MPMHAPT Japan Digital
FXO
TIA-968-A3
CS-03 Part I
TBR21
MPMHAPT Japan Analog
ACIF S002
ACIF S003
ACIF S004
ANZ PTC200
MOH interface
ACIF S038
ACIF S004
TIA-464C

Specification Sheets / Installation guides / Associated files

Flexirent

You can finance this product via Flexirent! For more information regarding flexirent, and to use the flexirent finance calculator, please click here.

The calculator provides an indicative rental cost only. Flexirent prices quoted include GST and stamp duty. Subject to credit approval. To obtain full quote and pre-approval please contact Flexirent Customer Service on 1800 240 102. Rental is payable monthly.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Cisco) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.

Visitor Reviews

[ There are no visitor reviews for this product yet]

Review Product
Click on a thumbnail to view it below

L7: 2 | TM: 13 | LM: 17 | TY: 128 | T: 1124
TechBuy Product List

Hardware & Peripherals

PC Parts & Peripherals
More Computer Products
Shop by Brand >>

Finance & Cashback Deals

flexirent powerbuy

Sister Sites

TechTronics logo Camera Farm Logo

Login to your account



Reference Tools

Recenty Sold

Welcome to Techbuy

Looking for a bargain? You came to the right place.

Not only are our prices excellent but Techbuy has one of the largest range of IT and related products in Australia. All at unbeatable prices! Have a look around and check out our great specials and daily deals.

Worried about freight? Techbuy has you covered with multiple freight options, from express to regular registered post. Our payment options cover all bases, allowing you the flexibility to pay using the most convenient way possible.

About Techbuy

Popular Brands

Techbuy custom systems are manufactured to your specifications and throughly tested in-house before being dispatched to you.

Simply plug in your brand new system and get down to work with minimal fuss.

Custom Systems

Custom Servers

As an Intel Gold Technology Provider we provide turn key solutions for all your server and cabinent needs. If you are unsure what you need contact our server expert using our contact form.

Techbuy Severs

Need networking equipment? You have come to the right place! Techbuy offers a large range of networking gear, from small switches and routers for home users to enterprise grade switching solutions and fibre cabling.

Visit Networking

Secure Online Shopping

We accept the following with No surcharge on VISA, Mastercard and Paypal!
Techbuy Pty Ltd 2000 - 2014 All rights reserved.
All prices shown on techbuy.com.au are in $AUD and inclusive of GST. Prices and availability are subject to change without prior notice. Images displayed are accurate to the best of our knowledge and we will not be held responsible for purchases based soley on these images. All brands and names are trademarks of their respective companies. Techbuy ships to almost anywhere in Australia and Internationally. For more information, please see our usage policies.
Shipping Australia wide to all metro and regional areas (Sydney, Melbourne, Brisbane, Adelaide, Perth)
