All stock codes associated to this product
RVD3FHPX4240G, RVD3-FHPX4-240G

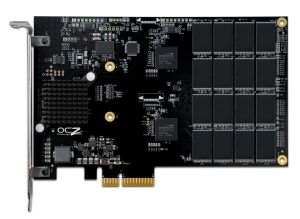

OCZ RevoDrive 3 PCI-Express SSD
PCI-E Solid State Drive / Workstation-Class / 130,000 IOPS / 120GB-480GB
Designed with power users and multimedia designers in mind, the RevoDrive 3 SSD Series provides the ultimate storage solution for intensive workstation applications with maximum performance and a sophisticated feature-set based on OCZ's proprietary Virtualized Controller Architecture 2.0 (VCA) technology.
The RevoDrive 3 provides unique benefits to users by incorporating features from the VCA 2.0 flash virtualization software that allow certain direct memory access (DMA) and data management functions. Included in this feature-set are OCZs exclusive command queuing and queue balancing algorithms, which can be handled by the onboard processing core for higher performance and reduced burden on the host resources. VCA 2.0 is also the only virtualization layer in the industry with TRIM and SCSI unmap support to enhance sustained performance and provide greater endurance by significantly reducing the overhead associated with garbage collection. Furthermore, VCA also offers consolidated SMART support and provides system administrators with advanced features for monitoring, analyzing, and reporting device attributes.
With an all-new architecture, the RevoDrive 3 shatters its predecessors performance record and is faster than comparable solutions ten times the price. The dual-controller Revo3 delivers up to 1GB/s of bandwidth and up to 130,000 IOPS (4K random write) under HPC or workstation workloads with a single-card solution. Additionally, the Revo3 offers ample capacity for users in media development and management looking for more storage room.
Available in 120GB, 240GB and 480GB capacities, the OCZ RevoDrive 3 provides incredible performance for data warehousing, applications, multimedia files, and operating systems with the superior durability, energy efficiency, and reliability of SSDs.
Specifications
- Available in 120GB, 240GB and 480GB capacities
- PCI-Express Gen. 2 x4 interface
- MLC NAND flash
- Full height form factor
- OCZ SuperScale Storage Controller
- Virtualized Controller Architecture 2.0
- Bootable as a direct-attach device
- 128-bit & 256-bit AES-compliant data encryption
- SMART monitoring
- 167.64 (L) x 98.42 (W) x 15.25mm (H)
- Weight: 114g
- Shock Resistance: 1500g
- Operating Temp: 0C ~ 70C
- Ambient Temp: 0C ~ 55C
- Storage Temp: -45C ~ 85C
- Power Consumption: 7.5W idle, 8.3W active
- MTBF: 1,000,000 hours
- 3-Year Warranty
- Compatible with Windows Vista 32/64, Windows 7 32/64
120GB Max Performance
- Read: Up to 975 MB/s
- Write: Up to 875 MB/s
- Max Random Write 4KB (Aligned): 120,000 IOPS
240GB Max Performance
- Read: Up to 1000 MB/s
- Write: Up to 900 MB/s
- Max Random Write 4KB (Aligned): 130,000 IOPS
480GB Max Performance
- Read: Up to 1000 MB/s
- Write: Up to 925 MB/s
- Max Random Write 4KB (Aligned): 130,000 IOPS
Part Numbers
- 120GB: RVD3-FHPX4-120G
- 240GB: RVD3-FHPX4-240G
- 480GB: RVD3-FHPX4-480G
