ASUS facilitates strategic USB 3.0 accessibility for both the front and rear panel - 4 USB 3.0 ports in total. Experience the latest plug & play connectivity at speeds up to 10 times faster than USB 2.0. The P8Z68-V LE affords greater convenience to high speed connectivity.
Native SATA 6Gb/s Support
The Intel Z68 Chipset natively supports next-generation Serial ATA (SATA) storage interface, this motherboard delivers up to 6.0 Gb/s data transfer rates. Additionally, get enhanced scalability, faster data retrieval, double the bandwidth of current bus systems.
CPU, Chipset and Graphics features
LGA1155 socket for Intel Second Generation Core i7/ Core i5/ Core i3 Processors
This motherboard supports the latest Intel second generation Core i7/Core i5/Core i3 processors in the LGA1155 package, with memory and PCI Express controllers integrated to support 2-channel (4 DIMM) DDR3 memory and 16 PCI Express 2.0 lanes. This provides great graphics performance. Intel second generation Core i7/Core i5/Core i3 processors are among the most powerful and energy efficient CPUs in the world.
Intel Z68 Express Chipset
The Intel Z68 Express Chipset is a single-chipset design to support socket 1155 Intel second generation Core i7/Core i5/Core i3 processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, Z68 chipset provides 2 SATA 6Gb/s and 4 SATA 3Gb/s ports for faster data retrieval at double the bandwidth of current bus systems. Moreover, Intel Z68 Express Chipset also supports iGPU function, letting users enjoy the latest Intel integrated graphic performance.
RoHS
GreenASUS and ErP Ready
The motherboard is European Unions Energy-related Products (ErP) ready, and ErP requires products to meet certain energy efficiency requirements in regards to energy consumptions. This is in line with ASUS vision of creating environment-friendly and energy-efficient products through product design and innovation to reduce carbon footprint of the product and thus mitigate environmental impacts.
Other ASUS Features
Auto Tuning
Achieve extreme yet stable overclocking results automatically
TurboV
Adjust system performance parameters with just a few clicks away
AI Suite II
One-stop access to innovative ASUS features
HDMI
Enjoy full HD 1080p multimedia home-theater entertainment
Fan Xpert
Built-in variety of useful profiles offer flexible controls of fan speed to achieve a quiet and cool environment.
Fanless Heatsink Design
Stylish heatsink features 0-dB thermal solution that offers a noiseless PC environment.
Ai Charger+
Quick charge your iPod, iPhone and even iPad!
MemOK!
Any memory is A-OK!
Specifications
| CPU |
Intel Socket 1155 for 2nd Generation Core i7/Core i5/Core i3 Processors
Supports Intel 32 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list |
| Chipset |
Intel Z68 |
| Memory |
4 x DIMM, Max. 32GB, DDR3 2200(O.C.)/2133(O.C.)/1866(O.C.)/1600/1333/1066 Hz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
* Due to CPU behavior, DDR3 2200/2000/1800 MHz memory module will run at DDR3 2133/1866/1600 MHz frequency as default. |
| Graphic |
Integrated Graphics Processor
Multi-VGA output support : HDMI/DVI/RGB ports
- Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 2048 x 1536 @ 75 Hz
Maximum shared memory of 1748 MB |
| Multi-GPU Support |
Supports AMD Quad-GPU CrossFireX Technology
Supports LucidLogix Virtu Technology |
| Expansion Slots |
1 x PCIe 2.0 x16 (blue) *1
1 x PCIe 2.0 x16 (x4 mode, black) *1
2 x PCIe 2.0 x1
3 x PCI |
| Storage |
Intel Z68 chipset :
2 x SATA 6Gb/s port(s), gray
4 x SATA 3Gb/s port(s), blue
Support Raid 0, 1, 5, 10

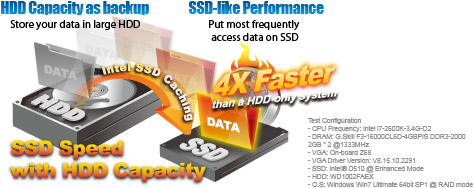

Support Intel Smart Response Technology on 2nd generation Intel Core processor family |
| LAN |
Realtek 8111E , 1 x Gigabit LAN Controller(s) |
| Audio |
Realtek ALC 892 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- Blu-ray audio layer Content Protection
- Optical S/PDIF out port(s) at back panel |
| USB Ports |
ASMedia USB 3.0 controller :
4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
Intel Z68 chipset :
12 x USB 2.0 port(s) (4 at back panel, black, 8 at mid-board) |
| Overclocking Features |
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall) |
| Special Features |
ASUS Dual Intelligent Processors - TPU & EPU :
ASUS TPU :
- Auto Tuning
- TurboV
- GPU Boost
- TPU switch
ASUS EPU :
- EPU
ASUS Power Design :
- 4 +2 Phase Power Design
ASUS Exclusive Features :
- MemOK!
- AI Suite II
- Ai Charger+
- Anti-Surge

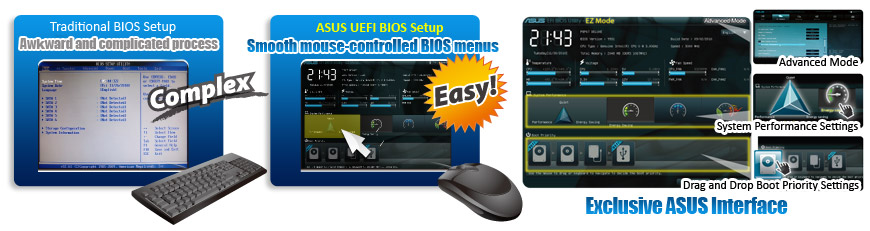

- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Disk Unlocker
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS O.C. Tuner
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
ASUS Q-Design :
- ASUS Q-Slot |
| Back I/O Ports |
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.0
4 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s) |
| Internal I/O Ports |
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
4 x USB 2.0 connector(s) support(s) additional 8 USB 2.0 port(s)
1 x COM port(s) connector(s)
2 x SATA 6Gb/s connector(s)
4 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s) (4 -pin)
2 x Chassis Fan connector(s) (4 -pin)
1 x Power Fan connector(s) (3 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x MemOK! button(s)
1 x TPU switch(es) |
| Accessories |
User's manual
2 x SATA 3Gb/s cable(s)
2 x SATA 6Gb/s cable(s) |
| BIOS |
64 Mb Flash ROM, EFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS,
ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 PrintScreen Function |
| Manageability |
WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE |
| Support Disc |
Drivers
ASUS Utilities
ASUS Update
LucidLogix Virtu software
Anti-virus software (OEM version) |
| Form Factor |
ATX Form Factor
12 inch x 9 inch ( 30.5 cm x 22.9 cm ) |
| Note |
*1: The PCIe x16_2 slot shares bandwidth with PCIe x1_1 slot, PCIe x1_2 slot. |
