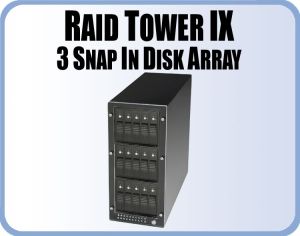

Addonics RT93SNDH RAID Tower IX - Black
  • 15x3.5"SATA HDD, 3x5-Port Hardware Port Multiplier, RAID 0,1,3,5,10, JBOD, 3xeSATA

IMG 1 of 1
No Longer Available
Part Number:
174502
(?) Brand:
Addonics Web Site
Manuf No:
RT93SNDH
Shipping Weight:
25 KG (Includes product packaging)
Estimate Shipping
Date Added:
19/7/2011
Details Files Finance Images & Video
All stock codes associated to this product
RT93SNDH

Components list made up this model:
Storage Tower IX (ST9), three 5X1 HPM-XA Enclosure Version (AD5HPMRXA-E) installed and three Snap-In Disk Array (AESN5DA35). Included are three 3-foot sATA cable (AAESATA100C)

  • Install up to fifteen 3.5" SATA hard drives of any capacity (drives not included).
  • Drives are directly added or removed like tape cartridge from each drive bay with no special tool
  • Connect to system via 3 SATA ports (connecting cables included)
  • 5 drives are connected to each HPM which connects to the sATA port mounted on the back panel
  • Each set of 5 drives can be configured as RAID0 (Striping), RAID1 (Mirroring), RAID3, RAID5 (Parity), RAID10 (Mirrored Striped), JBOD (Concatenation), Clone Mode (N-Way Mirror) using built-in hardware RAID.
  • OS independent, can be used on any system when all drives are configured as a single RAID volume.
  • For Windows operating systems, configure RAID using RAID diagnostic software utility.
  • For Linux and Mac operating systems, configure RAID using onboard jumpers.

The RAID Tower IX is built basing on the Storage Tower platform that features nine 5.25" drive bays in a lightweight and compact chassis with a stylish and functional front bezel. Depending on the model, up to fifteen 3.5" hard drives can be installed into the RAID Tower IX. The drives can be configured as a RAID set and be connected to the computer via high speed eSATA connection or USB 3.0 (using optional USB 3.0 -eSATA Adapter). Depending on model, you can also share the storage on the RAID Tower on LAN by attaching to the optional Addonics NAS adapter. Each model comes with everything needed for connecting to the computer. All is needed is to add your own hard drives and configure the RAID via either onboard jumpers or software utility depending on the target operating system.

RAID Tower IX basic specification

  • Great for variety of storage applications - external RAID storage, Video storage, Server storage
  • Sturdy and attractive black metal frame construction
  • Compact size - 7.5 x 16.7 x 17.2 inches
  • Sturdy metal frame construction
  • Ball bearing high CFM low noise cooling fans
  • 400 watts 110/240V AC power supply
  • LED indicators for each storage device, RAID status, host connection and power

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Addonics) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
