All stock codes associated to this product
CP9020006AU, CP-9020006-AU, CMPSU650AX, CMPSU-650AX

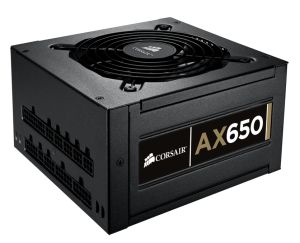

Professional Series™ Gold AX650 — Fully-Modular Power Supply
CP-9020006
The Corsair AX650 power supply is one of the highest-quality mid-wattage power supplies for the enthusiast who wants uncompromising performance.
A Fully Modular Cabling System
All cables detach from the power supply. During installation, this gives you the flexibility of using only the cables you need for a clean system build with optimal airflow. And, when it's time to replace or upgrade your power supply, it can be removed from your system without interfering with your cabling the cables stay in place and connect to your new fully-modular Corsair power supply.
Incredible Efficiency
With 90% efficiency at 50% load, the Corsair Professional Series Gold power supply runs quieter, generates minimal excess heat, and saves you money every month.
Corsair Professional Series Gold AX650 features:
- Supports the latest ATX12V v2.31 and EPS 2.92 standards and is backward compatible with ATX12V 2.2 and ATX12V 2.01 systems
- An ultra-quiet 120mm double ball-bearing fan delivers excellent airflow at an exceptionally low noise level by varying fan speed in response to temperature
- Active Power Factor Correction (PFC) with PF value of 0.99
- Universal AC input from 90~264V
- No more hassle of flipping that tiny red switch to select the voltage input!
- A dedicated single +12V rail offers maximum compatibility with the latest components
- Over-voltage and over-current protection, under-voltage protection, and short circuit protection provide maximum safety to your critical system components
- High-quality Japanese capacitors provide uncompromised performance and reliability
- Completely modular cable system allows you to use only the cables you need
- Power supply upgrade and replacement is easy, as the cables only need to be disconnected at the power supply
- Low-profile, flat cable design reduces air friction and helps maximize airflow through your computer's chassis
- A seven year warranty and lifetime access to Corsair's legendary technical support and customer service
- Dimensions: 150mm(W) x 86mm(H) x 160mm(L)
- MTBF: 100,000 hours
- Safety Approvals: UL, CUL, CE, CB, FCC Class B, TV, CCC, C-tick
Technical Specifications
Warranty - Seven years
Dimension - 150mm(W) x 86mm(H) x 160mm(L)
Power - 650 Watts
80 Plus
ATX Connector - 1
EPS Connector - 1
PCI-E Connector - 4
4 Pin Peripheral Connector - 4
SATA Connector - 8
Floppy Connector - 2
MTBF - 100,000 hours
Power Supply Specifications
| CMPSU-650AX |
| AC Input |
90-264V ~ 15A 50/60Hz |
| DC Output |
+3.3V |
+5V |
+12V |
-12V |
+5Vsb |
| Max. Current |
25A |
25A |
54A |
0.5A |
3A |
| Max Combined Wattage |
125W |
648W |
6W |
15W |
| 650 @ 50C ambient temperature |
