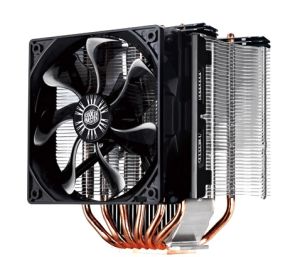

CoolerMaster Hyper 612 PWM CPU Cooler - Intel LGA1366, LGA 1156, LGA1155, LGA775, AMD FM1, AM3, AM2+, AM2, 120mm Fan, 2000rpm, 82.9CFM, 36dBA

IMG 1 of 1
No Longer Available
Part Number:
175932
(?) Brand:
CoolerMaster Web Site
Manuf No:
RR-H612-20PK-R1
RRH61220PKR1
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Date Added:
4/8/2011
Details Files Images & Video
All stock codes associated to this product
RRH61220PKR1, RR-H612-20PK-R1, CPCMHYPER612P, CPCM-HYPER612P, 4719512031292
Hyper 612 PWM

A silent storm aroused by Hyper 612 PWM brings you the ultimate CPU silent cooling solution. With the use of PWM fan Hyper 612 PWM can run at low noise but keep excellent cooling performance thanks to its massive dimensions, wider fin gaps, and a special heat pipe layout that has all 6 heat pipes crossing the CPU’s “hot spot.” The Hyper 612 PWM CPU coolers are designed for optimum heat dissipation at low fan speeds to rescue you from noise nightmare.

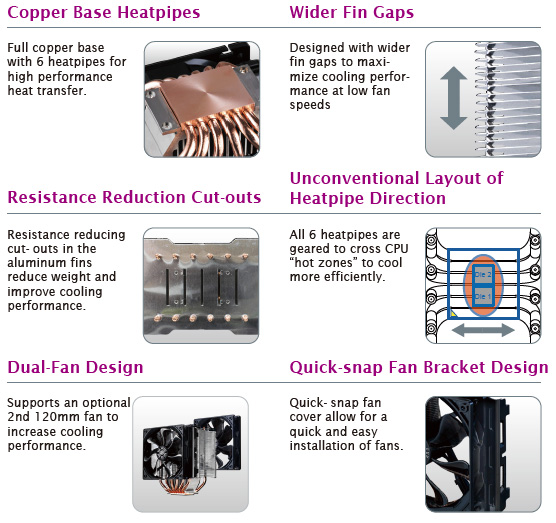

Features

  • Optimized with wider fin gaps and resistance reduction cut-offs for low fan speed condition.
  • Unconventional layout of the heatpipe direction: all 6 heat pipes can cross over the hot zone on most of the modern CPUs for better cooling efficiency.
  • Quick-snap fan bracket design for easier installation.
  • Wide range PWM fan (600 2000 R.P.M.) provides versatile performance for full loading efficiency and for quiet idling.



Specifications

Model RR-H612-20PK-R1

CPU Socket Intel Socket:
LGA 1366 / 1156 / 1155 / 775 *

AMD Socket:
FM1 / AM3+ / AM3 / AM2+ / AM2

CPU Support Intel:
Core i7 Extreme / Core i7 / Core i5 / Core i3 / Core2 Extreme / Core2 Quad / Core2 Duo / Pentium / Celeron

AMD:
Phenom II X4 / Phenom II X3 / Phenom II X2 / Phenom X4 / Phenom X3 / Athlon II X4 / Athlon II X3 / Athlon II X2 / Athlon X2 / Athlon / Sempron

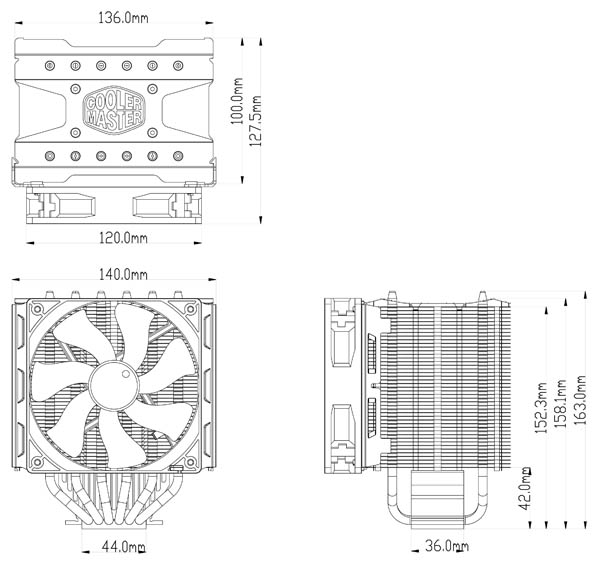

Dimension 140 x 128 x 163 mm (5.5 x 5.5 x 6.4 inch)

Heat Sink Material Copper Base / 6 Heat Pipes / Aluminum Fins

Heat Sink Weight 806g (1.78 lb)

Fan Dimension 120 x 120 x 25 mm (4.7 x 4.7 x 1 inch)

Fan Speed 600 - 2000 RPM (PWM) 10%

Fan Airflow 24.9 - 82.9 CFM 10%

Fan Air Pressure 0.3 - 2.7 mmH2O 10%

Bearing Type Long Life Sleeve Bearing

Fan Life Expectancy 40,000 hours

Fan Noise Level (dB-A) 9 - 36 dBA

Connector 4-Pin

Fan Weight 104g (0.23 lb)

Notice * Supplied accessories may differ by country or area. Please check with your local distributor for further details.

UPC Code 884102011597

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (CoolerMaster) web site.
