All stock codes associated to this product
FB2280E, AV2771, 4719868532580
FB2280E
Leading Edge in Book Scanning
Avision’s book edge scanners feature a unique, innovative flatbed platform, with a slanted front edge engineered to accommodate books in a way that prevents the dark, shadowy area near the spine from appearing. Curved text often seen near the center is also eliminated, since this special design allows pages to spread flat on the scanner. Never again would you need to press the book against the scanner, which distorts the scanned image and potentially damages the book. Avision makes book scanning a breeze!
The Avision FB2280E is designed from the ground up to excel at scanning books. Packed with CCD sensors and a 600 dpi optical resolution, it can produce high quality A4 scans in 4 seconds at 200 dpi in black and white.
Another unique feature of the FB2280E is the document cover. With this cover, you can temporarily place your documents safely on the scanner, reducing the risk of misplacing them during scanning.
An optional ADF add-on is available for the FB2280E, with a 50 sheet capacity and a maximum document size of 21.6 x 36.5cm.

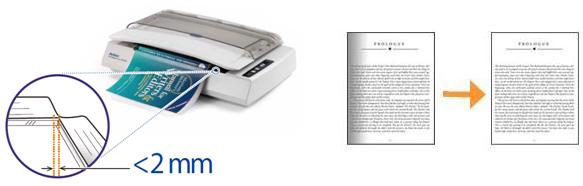

The slant front platform makes book scan easy as a breeze
With the innovative and patented front platform, the Avision FB2280E allows you to easily scan books and deliver clear images within 2mm of the book spine. Shadow and text distortion commonly found on books scanned by traditional scanners are no longer existed.
High Qualities Scanning Solution
The FB2280E's core image processing components are CCD based with a 600 dpi optical resolution, enabling it to output picture perfect quality while meeting the most stringent demands of business professionals anywhere.

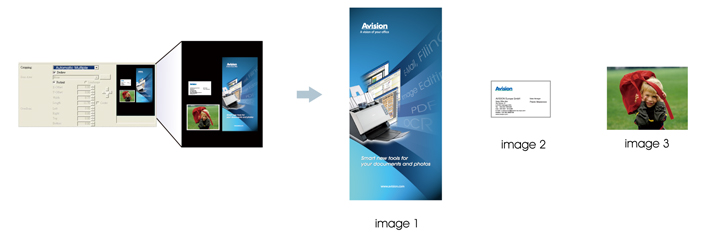

Automatic multiple images cropping
In addition, the scanner comes with the convenient feature of multiple images cropping. With this feature, various sizes of documents such as photos, ID Cards, or business cards can be placed on the flatbed and the scanner is able to crop and create multiple images according to the original sizes of the documents in one single scan.
Easy-to-use button scanning
With the bundled software "Button Manager", you can create searchable pdf file directly after pressing the button on the scanner. Pages are automatically cropped and rotated to the correct orientation and then saved to your choice of file formats including PDF, TIFF, JPEG, GIF, BMP, or searchable PDF. The program also lets you pre-set nine customized functions or destination application such as e-mail, printer, or other photo editing software application for a variety of scanning tasks.
Auto crop, deskew and thresholding image-enhancing features
FB2280E incorporates the latest TWAIN driver with new features and enhancement such as the ability to adjust sensitivity of dynamic threshold, document/photo color matching, custom color dropout, automatic multiple cropping, and reduce despeckle. We are committed to improving the TWAIN driver continuously to enrich your scanning experience as never before.
Specification
| FB2280E |
| General Specification |
| Technology |
Color Charged-Coupled Device (CCD) |
| Light Source |
LED (Light Emitting Diode) |
| Document feeding mode |
Flatbed, ADF (optional) |
| Optical Resolution (dpi) |
600 |
| Halftone Patterns |
Dither and Error Diffusion |
| Grayscale mode |
16bits input 8bits output |
| Color mode |
48bits input 24bits output |
| Memory Size |
128MB SDRAM |
| Dimensions (WxDxH) |
480 x 288 x 115 mm (25.3 x 11.3 x 4.5 in) |
| Weight |
6.5 kg ( 14.3 lb ) |
| Interface |
USB 2.0 |
| Power Consumpation |
Operation: < 30 W
Stanby: < 10 W
Power saving: < 5 W |
| Recommended Daily Volume |
Up to 2,500 pages |
| OS Support |
Windows XP/Vista/Win 7 |
| Bundled Software |
Twain Driver, ISIS Driver, AVScan 5.0, Avision Button Manager, PaperPort 11 |
| Options |
ADF 2050 |
| Features |
| Scan Size |
| ADF Minimum |
114 x 139 mm ( 4.5 x 5.5 in ) (Option ADF) |
| ADF Maximum |
216 x 356 mm (Legal) ( 8.5 x 14 in ) (Option ADF) |
| Flatbed Maximum |
216 x 297 mm (8.5 x 11.7 in) |
| ADF Capacity |
50 sheets (Option ADF) |
| Paper Thickness and Weight |
49~ 120 g/m ( 13 to 32 lb ) (Option ADF) |
| Scanning Speed |
| B/W @ 200dpi, A4 |
4 sec. / 5.5 sec. (Include Backhome) |
| B/W @ 300dpi, A4 |
4 sec. / 5.5 sec. (Include Backhome) |
| Color @ 200dpi, A4 |
4 sec. / 5.5 sec. (Include Backhome) |
| Color @ 300dpi, A4 |
4 sec. / 5.5 sec. (Include Backhome) |
| Copier Function |
| FAX Function |
| Network Specifications |
| PC Specifications |
|
* The above specifications may vary due to computer performance and sales regions. For further details, please consult your local distributor.
|
