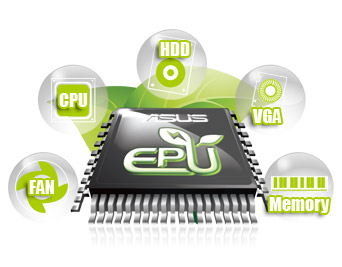

Tap into the world's first real-time PC power saving chip through AI Suite II utility. Get total system-wide energy optimization by automatically detecting current PC loadings and intelligently moderating power consumption. This also reduces fan noise and extends component longevity!
AI Suite II
With its fast user-friendly interface, ASUS AI Suite II consolidates all the exclusive ASUS features into one simple to use software package. It allows you to supervise overclocking, energy management, fan speed control, voltage and sensor readings. This all-in-one software offers diverse and ease to use functions, with no need to switch back and forth between different utilities.
ASUS TurboV
Easy, Real-Time O.C. Tunings
Feel the adrenaline rush of real-time OC-now a reality with the ASUS TurboV. This easy OC tool allows you to overclock without exiting or rebooting the OS; and its user-friendly interface makes overclock with just a few clicks away. Moreover, the ASUS OC profiles in TurboV provides the best O.C. settings in different scenarios.
MemOK!
Any Memory is A-OK!
MemOK! quickly ensures memory boot compatibility. This remarkable memory rescue tool requires a mere push of the button to patch memory issues. MemOK! determines failsafe settings and dramatically improves your system boot success. Get your system up and running in no time.
S/PDIF out connector at the back I/O
This motherboard provides convenient connectivity to external home theater audio systems via the optical S/PDIF (SONY-PHILIPS Digital Interface) out connecor at the back I/O. The S/PDIF transfers digital audio without converting it to analog format and keeps the best signal quality.
100% All High-quality Conductive Polymer Capacitors
This motherboard uses all high-quality conductive polymer capacitors for durability, improved lifespan, and enhanced thermal capacity.
Latest Transfer Technology
USB 3.0 support
Experience ultra-fast data transfer at 4.8Gbps with USB 3.0 the latest connectivity standard. Built to connect easily with next-generation components and peripherals, USB 3.0 transfers data 10 times faster and is also backward compatible with USB 2.0 components.
True Serial ATA 6Gb/s support
The Intel Z68 Express Chipset natively supports the Serial ATA (SATA) interface, delivering up to 6.0 Gb/s data transfer. ASUS provides extra SATA 6.0 Gb/s ports with enhanced scalability, faster data retrieval, and double the bandwidth of current bus systems.
CPU, Chipset and Graphics features
LGA1155 socket for Intel Second Generation Core i7/ Core i5/ Core i3 Processors
This motherboard supports the latest Intel second generation Core i7/Core i5/Core i3 processors in the LGA1155 package, with memory and PCI Express controllers integrated to support 2-channel (4 DIMM) DDR3 memory and 16 PCI Express 2.0 lanes. This provides great graphics performance. Intel second generation Core i7/Core i5/Core i3 processors are among the most powerful and energy efficient CPUs in the world.
Intel Z68 Express Chipset
The Intel Z68 Express Chipset is a single-chipset design to support socket 1155 Intel second generation Core i7/Core i5/Core i3 processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, Z68 chipset provides 2 SATA 6Gb/s and 4 SATA 3Gb/s ports for faster data retrieval at double the bandwidth of current bus systems. Moreover, Intel Z68 Express Chipset also supports iGPU function, letting users enjoy the latest Intel integrated graphic performance.
RoHS
GreenASUS and ErP Ready
The motherboard is European Unions Energy-related Products (ErP) ready, and ErP requires products to meet certain energy efficiency requirements in regards to energy consumptions. This is in line with ASUS vision of creating environment-friendly and energy-efficient products through product design and innovation to reduce carbon footprint of the product and thus mitigate environmental impacts.
Specifications
| CPU |
Intel Socket 1155 for 2nd Generation Core i7/Core i5/Core i3 Processors
Supports Intel 32 nm CPU
Supports Intel Turbo Boost Technology 2
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list |
| Chipset |
Intel Z68 |
| Memory |
4 x DIMM, Max. 32GB, DDR3 2200(O.C.)/2133(O.C.)/1866(O.C.)/1600/1333/1066 Hz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
* Due to CPU behavior, DDR3 2200/2000/1800 MHz memory module will run at DDR3 2133/1866/1600 MHz frequency as default. |
| Graphic |
Integrated Graphics Processor
Multi-VGA output support : HDMI/DVI/RGB/DisplayPort ports
- Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 2048 x 1536 @ 75 Hz
- Supports DisplayPort with max. resolution 2560 x 1600 @ 60 Hz
Maximum shared memory of 1748 MB |
| Multi-GPU Support |
Supports AMD Quad-GPU CrossFireX Technology
Supports LucidLogix Virtu Technology |
| Expansion Slots |
1 x PCIe 2.0 x16 (blue)
1 x PCIe 2.0 x16 (x4 mode, black) *1
2 x PCI |
| Storage |
Intel Z68 chipset :
2 x SATA 6Gb/s port(s), gray
4 x SATA 3Gb/s port(s), blue
Support Raid 0, 1, 5, 10

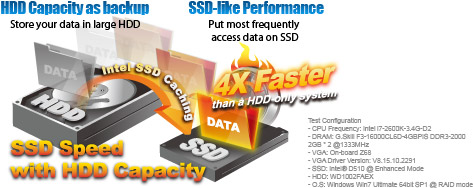

Support Intel Smart Response Technology on 2nd generation Intel Core processor family
ASMedia PCIe SATA controller : *2
1 x eSATA 6Gb/s port(s), red
1 x SATA 6Gb/s port(s), navy blue |
| LAN |
Realtek 8111E , 1 x Gigabit LAN Controller(s) |
| Audio |
Realtek ALC892 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
- Blu-ray audio layer Content Protection
- Optical S/PDIF out port(s) at back panel |
| USB Ports |
ASMedia USB 3.0 controller :
2 x USB 3.0 port(s) (2 at back panel, blue)
Intel Z68 chipset :
14 x USB 2.0 port(s) (4 at back panel, black, 10 at mid-board) |
| Overclocking Features |
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall) |
| Special Features |
ASUS EPU :
- EPU
ASUS Protect 3 Technology :
- Anti-Surge Protection
- Low EMI Solution
- ESD
TurboV
GPU Boost
ASUS Exclusive Features :
- MemOK!
- AI Suite II
- Ai Charger+

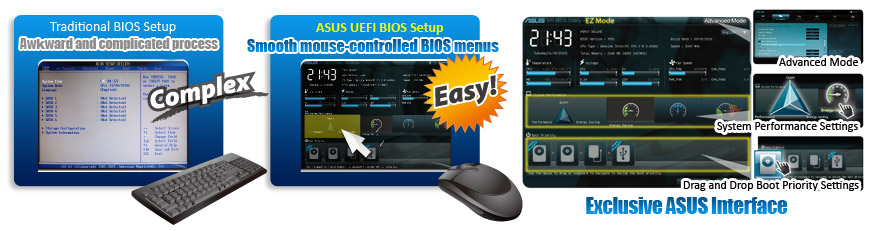

- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
100% All High-quality Conductive Polymer Capacitors |
| Back I/O Ports |
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI
1 x D-Sub
1 x DisplayPort
1 x HDMI
1 x eSATA 6Gb/s
1 x LAN (RJ45) port(s)
2 x USB 3.0
4 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s) |
| Internal I/O Ports |
5 x USB 2.0 connector(s) support(s) additional 10 USB 2.0 port(s)
1 x TPM connector(s)
1 x COM port(s) connector(s)
3 x SATA 6Gb/s connector(s)
4 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s) (4 -pin)
1 x Chassis Fan connector(s) (4 -pin)
1 x Power Fan connector(s) (3 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x MemOK! button(s)
1 x GPU Boost switch(es)
1 x Clear CMOS jumper(s) |
| Accessories |
User's manual
I/O Shield
2 x SATA 3Gb/s cable(s)
2 x SATA 6Gb/s cable(s) |
| BIOS |
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.6, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 PrintScreen Function |
| Manageability |
WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE |
| Support Disc |
Drivers
ASUS Utilities
ASUS Update
Anti-virus software (OEM version) |
| Form Factor |
uATX Form Factor
9.6 inch x 9.6 inch ( 24.5 cm x 24.5 cm ) |
| Note |
*1: The PCIe x 16 slot (x4 mode) is compatible with PCIe x1 and x4 devices.
*2: These SATA ports are for data hard drives only. ATAPI devices are not supported. |
