CoolerMaster 700W Extreme Power Plus Series - ATX 12V v2.3, 120mm Fan
  • 6x SATA, 2xPCI-E 6+2-pin

IMG 1 of 3
No Longer Available
Part Number:
177043
(?) Brand:
CoolerMaster Web Site
Manuf No:
RS700-PCAAE3-AU
RS700PCAAE3AU
Shipping Weight:
3 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
RS700PCAAE3AU, RS700-PCAAE3-AU, 1710277, 4719512026106
RS-700-PCAA-E3

Extreme Power Plus 700W Series

Extreme series packs a powerful punch by delivering stable streams of power through single +12v output. Our Extreme Power Plus 700W provides over 80% efficiency at typical loading, in addition with a life-time of 100,000 hours and protections for OVP/UVP/OTP/OPP/SCP, this power unit is made to last.

Features

  • Compliance with the latest Intel standard ATX 12V V2.3.
  • Ultra-silent operation with intelligent 120mm fan speed control.
  • Multiple protection design (OVP/UVP/OPP/OTP/SCP).
  • High reliability (MTBF> 100,000 hours).
  • Double Layer EMI Filter retrains noise and to avoid affect to users.
  • Integrating Active PFC with PWN combo controller while increase efficiency.
  • Efficient transformer for reducing 5Vsb power loss when the system is in standby or off-mode.
  • Two-year warranty.

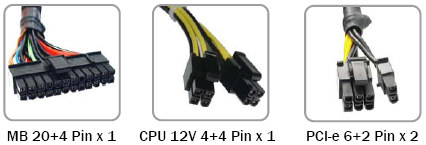

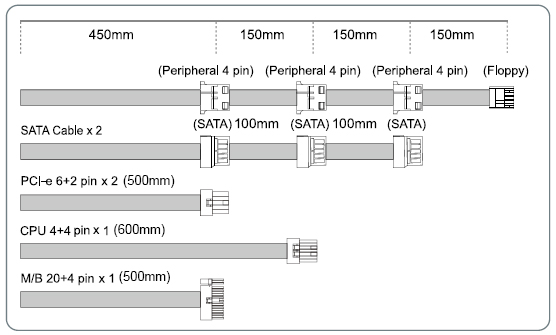

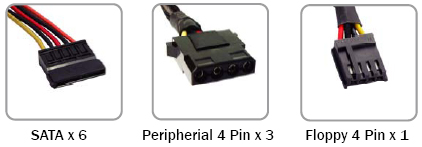

Connectors

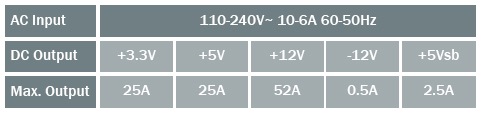

Specifications

Model RS-700-PCAA-E3

Type Intel Form Factor ATX 12V V2.3

PFC Active PFC (>0.9)

Input Voltage 90-264Vac (Auto Range)

Input Current 10A@115Vac , 6A@230Vac

Input Frequency Range 47-63Hz

Output Capacity 700W

Fan 120mm

Power Good Signal 100~500ms

Hold Up Time >17ms

Efficiency 80% typical

MTBF >100,000 hours

Protection OVP / UVP / OPP / OTP / SCP

Dimension 150 X 140 X 86 mm / 5.9 x 5.5 x 3.4 inch

Operation Temperature 0~40 C (Nominal Input Voltage)

Regulatory UL / FCC / BSMI / GOST / C-tick / CE

UPC Code 884102008665

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (CoolerMaster) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
