All stock codes associated to this product
LZ957PA, 1687800

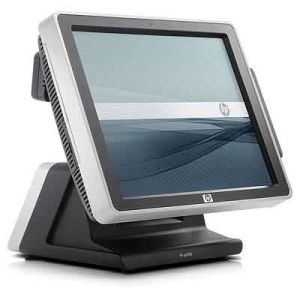

HP ap5000 All-in-One Point of Sale System
Overview
Touch the Future. The competitively priced HP ap5000 All-in-One POS System offers easy implementation within your existing retail ecosystem, is available with flexible configurability to right-size to your needs, and is backed by a three-year standard limited warranty.
Features
Eliminate the guesswork
Everything you need to get started, in an all-in-one form factor, is in the box: the processor, a 15-inch diagonal resistive touchscreen display and add an optional magnetic stripe reader and/or a customer facing display.
Customized, worry-free hardware
Once you’re up and running, you shouldn’t spend any time thinking about your POS hardware. Choose from pre-defined configurations of memory, Intel processor, and storage, including a Solid State Drive option, or build your own configuration.
Ruggedized for retail
The durable steel chassis has been tested to withstand the prolonged wear and tear typical in retail. The touchscreen display is liquid- and dust-resistant. Use fingertips, fingernails, a stylus or credit card edge.
Specifications
| System features |
Operating system
|
Genuine Windows Embedded POSReady 2009
|
Processors
|
Intel Core2 Duo Processor E7400 (2.80 GHz, 3 MB L2 cache, 1066 MHz FSB)
|
Chipset
|
Intel Q965 Northbridge with ICH8R Southbridge
|
Form factor
|
All-in-one Point of Sale
|
| Memory |
Memory, standard
|
2 GB 800 MHz DDR2 SDRAM
|
Memory slots
|
2 DIMM
|
| Storage |
Internal drive bays
|
2 - 2.5-in
|
| Graphics |
Graphics
|
Integrated Intel Graphics Media Accelerator 3000
|
| Expansion features |
Ports
|
1 VGA
5 USB 2.0
1 24V powered USB
1 audio line out
1 microphone in
1 DC 19V power connector
3 RS-232 (power-configurable in BIOS)
1 parallel
1 RJ-45
1 PS/2 keyboard
|
Display
|
15-inch diagonal TFT dual-bulb display, 1024 x 768 resolution, with 5-wire resistive type touchscreen. Precalibrated at factory but should be recalibrated after initial software via the calibration wizard. Hard or soft stylus input: finger tip, finger nail, or credit card edge to perform touch.
|
| Media devices |
Audio
|
Integrated Intel high-definition audio with 2-channel Via VT1708S codec
|
| Communication features |
Network interface
|
Realtek RTL8111C 10/100/1000 Ethernet with WOL support
|
| Power and operating requirements |
Power
|
130 W AC power adapter
|
Operating temperature range
|
10 to 40 C
|
Operating humidity range
|
20 to 85% RH
|
| Dimensions and Weight |
Weight
|
11.05 kg
|
Dimensions (W x D x H)
|
40.1 x 23.7 x 31.5 cm
|
| Security management |
Security management
|
Kensington Lock support
|
| What's included |
Warranty
|
On-site Warranty and Service: This 3-year (3-3-3), limited warranty and service offering delivers 3 years of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply. |
Point of Sale
