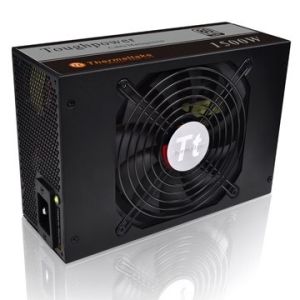

TTTP1500MPCSAU, TT-TP-1500MPCSAU
TP-1500M
Features
- 24 / 7 @ 40?: Guaranteed to deliver 1500W continuous power even at extreme chassis temperatures as high as 40C.

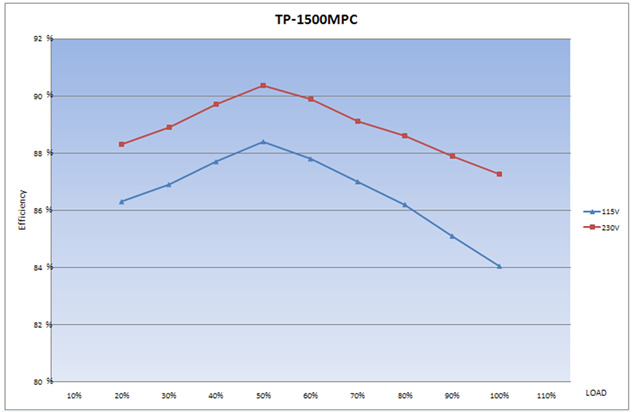

- 80 PLUS Silver certified – with 87-91% efficiency @ 20-100% load under real world load conditions. This ensures that whether playing games or surfing the net your power bill wont be hit as hard.
- Double-forward switching circuitry offers low power loss and high reliability.
- Robust and dedicated quad +12V rails(30A for 12V1 & 12V2, 50A for 12V3 & 12V4) design provides superior performance under all types of system loading which will ensure all of your components get the power they need when they need it.
- High quality Japanese capacitors: ensure superb performance and reliability.
- Solid state capacitors: great stability at higher operating temperatures, frequencies and currents.
- Universal AC input 100V~240V automatically scans and detects the correct voltage.
- Multi-GPU ready: 8 x PCI-E connectors support up to 4-way ATI CrossFireX™ & Nvidia SLI™.
- Designed to support latest Intel/AMD multi -core CPUs.
- Ultra-silent operation with intelligent 13.5cm 13.5cm cooling fan with speed control to ensure that your power supply will run cool no matter the load.
- Built in industrial-grade protections: over current, over voltage, under voltage, over power, over temperature and Short-Circuit protections . This ensures that if something goes wrong you will have the best chance of avoiding component damage or loss due to a power issue.
- Safety / EMI : UL/CUL, CE, FCC, CB+Baurt mark, GOST and BSMI certified.
Technology Features
High Quality Japanese Capacitor
Japanese capacitors provide uncompromised performance and reliability.
Industrial Grade Protection
Built in industrial-grade protections: Over Current, Over Voltage, Under Voltage, Over Power, Over Temperature and Short-Circuit Protections . These ensure that your components have the best protection against a power fault and the best chance of avoiding costly component loss.
Ultra Quiet 13.5cm Fan
Toughpower 1500W adopt 13.5cm cooling fan with intelligent RPM control guarantees cool performance and silent operation.
Efficiency
High Efficiency Circuit Design
Maximum efficiency up to 91% under wide load range.
|
24 PIN Main Connector
|
|
|
Peripheral & Floppy Connector
|
12V1
|
|
S-ATA Connector
|
|
|
4+4PIN +12V CPU Connector
|
|
|
8 PIN +12V CPU Connector
|
12V2
|
|
Two 6+2pin Straight PCI-E Connectors
|
12V3
|
|
Two 6+2pin Straight PCI-E Connectors
|
12V3
|
|
6+2pin Modular PCI-E Connector
|
12V4
|
|
6+2pin Modular PCI-E Connector
|
12V4
|
| 6+2pin Modular PCI-E Connector |
12V4
|
| 6+2pin Modular PCI-E Connector |
12V4
|

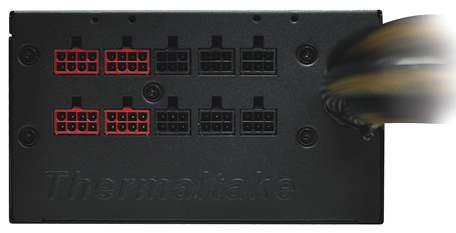

Modular Cable Management
Modular Cable Management
Cable management design improves internal airflow and reduce clutter by allowing not just hiding but removal of un-needed wires completely.

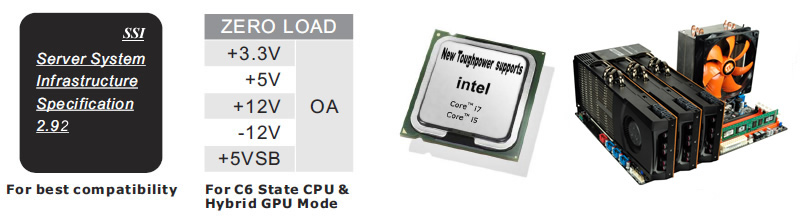

Hybrid SLI / CROSS FIRE X & INTEL C6 STATE MODE SUPPORT
CPU load range from Max. to only 1W.
C6 State CPU Mode
CPU load range from Max. to only 1W.
Nvidia® & ATI/AMD multi graphic cards configuration
Hybrid mode will cause graphic cards load range from Max. to only 1W.
Toughpower 1500W series are able to maintain an ultra tight DC regulation to support the C6 state CPU mode and the hybrid graphic card power saving mode by its ZERO LOAD (0W) Design.
ECO Design
New Toughpower Series saves energy through its high energy efficiency of up to 91% and is 80 PLUS® Silver certified
Supports Energy Star 5.0* energy standard:
New Toughpower Series is suitable for use in Energy Star-compatible computers.
Supports Intel Deep Power Down C6 Status:
New Toughpower Series helps your PC system operate more efficiently by supporting the newest low power states introduced by Intel.
Corresponds to the EU directives on WEEE and RoHS:
Thermaltake considers its full impact on the environment during manufacturing and maintains green facilities to ensure Toughpower meets WEEE & RoHS requirements.

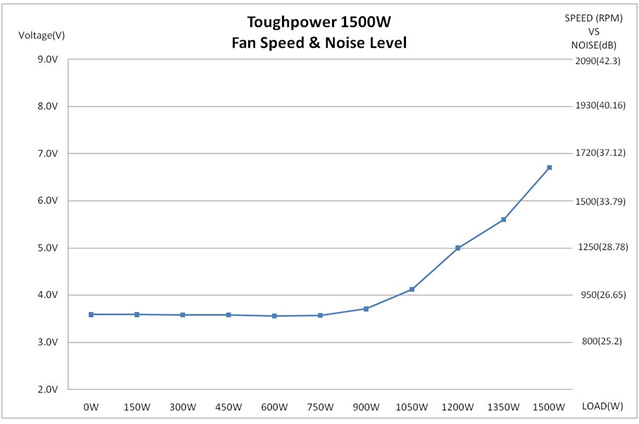

Fan Speed & Noise Level
Total Output Connector
Main Power
Connector (24Pin) x 1
ATX 12V
(4+4Pin) x 1
EPS 12V
(8Pin) x 1
PCI-E
(6+2Pin) x 8
PATA to FDD
x 1
SATA
(5Pin) x 12
Peripheral
(4Pin) x 8
|
Model
|
|
Connectors & Cable length
|
|
1500W
|
24pin
|
1 x 24pin Main connector (600mm)
|
|
EPS 12V 8pin
|
1 x EPS 12V 8pin connector (600mm)
|
|
ATX 12V 4+4pin
|
1 x ATA 12V 4x4pin connectors (600mm)
|
|
PCI-E 6+2pin & PCI-E 6+2pin
|
2 x PCI-E 6+2pin & PCI-E 6+2pin connectors(550mm + 150mm)
2 x PCI-E 6+2pin & PCI-E 6+2pin connectors(550mm + 150mm)
|
|
PCI-E 6+2pin
|
1 x PCI-E 6+2pin connectors(550mm)
1 x PCI-E 6+2pin connectors(550mm)
1 x PCI-E 6+2pin connectors(550mm)
1 x PCI-E 6+2pin connectors(550mm)
|
|
Molex
|
4 x Peripheral connectors (550mm + 150mm + 150mm +150mm)
4 x Peripheral connectors (550mm + 150mm + 150mm +150mm)
|
|
SATA
|
4 x S-ATA connectors (550mm + 150mm + 150mm +150mm)
4 x S-ATA connectors (550mm + 150mm + 150mm +150mm)
4 x S-ATA connectors (550mm + 150mm + 150mm +150mm) |
|
PATA to FDD adapter
|
1 x PATA to FDD adapter(100mm) |
General Info
|
GENERAL INFO
|
|
P/N
|
TP-1500M
|
|
Model
|
TP-1500AH5CES
|
|
Type
|
Intel ATX 12V 2.3 & EPS 12V 2.92
|
|
Max. Output Capacity
|
|
|
Peak Output Capacity
|
1600W
|
|
Color
|
Black
|
|
|
86mm x 150mm x 220mm
|
|
|
Active PFC
|
|
|
100-500 msec
|
|
|
16msec (minimum) @ full load at 115Vac/ 230Vac input.
|
|
AC INPUT
|
|
Input Current
|
18A - 9A
|
|
Input Frequency Range
|
50 Hz - 60 Hz
|
|
Input Voltage
|
100 Vac / 240 Vac
|
|
ENVIRONMENTAL
|
|
Operating Temperature
|
0 to +40
|
|
Operating Humidity
|
10% to 85%,non-condensing
|
|
Storage Temperature
|
-40 to + 70
|
|
Storage Humidity
|
5% to 90%, non-condensing
|
|
Cooling System
|
135mm Fan: 2400 R.P.M. 10%
|
|
MISCELLANEOUS
|
|
Efficiency
|
87-91% efficiency @ 20-100% load
|
|
MTBF
|
120,000 hrs minimum
|
|
Safety Approval
|
UL/CUL, CE, FCC, CB+Baurt mark, GOST and BSMI
|
|
|
|
PCI-E 6+2pin
|
x 8
|
Output Table
|
P/N
|
AC INPUT
|
Input Voltage: 100V - 240V~
Input Current: 18A - 9A
Frequency: 60Hz - 50Hz |
| TR-1500M |
DC OUTPUT |
+3.3V
|
+5V
|
+12V1
|
+12V2
|
+12V3
|
+12V4
|
-12V
|
+5Vsb
|
| Max Output Current |
40A
|
40A
|
30A
|
30A
|
50A
|
50A
|
0.5A
|
6.0A
|
| Max Output Power |
280W
|
1320W
|
6.0W
|
30W
|
| Output Power |
1500W
|
Total Protection
|
Voltage Source
|
Over Current Protection
|
Over Voltage Protection
|
|
Protection Point
|
Protection Point
|
|
+3.3V
|
30A~60A
|
3.76V~5.0V
|
|
+5V
|
30A~60A
|
5.74V~7.0V
|
|
+12V
|
+12V1: 70A~100A
|
13.4V~18.0V
|
|
+12V2: 80A~120A
|
|
Short Circuit Protection: Activated when any DC rails short circuited.
|
|
Under Voltage Protection: when +12V,+5V & +3.3V outputs under 85% of it's maximum value.
|
Specifications
| |
|
| GENERAL: |
|
| - Wattage |
1500 Watts |
| - Fan |
135 mm Dual Ball Bearing fan
2400RPM 10%
99.6 CFM |
| - Efficiency |
up to 91% |
| - PFC |
Active PFC |
| - Hold-Up Time |
16 ms at full load @ 115 VAC/230 VAC input |
| - Switches |
N/A |
| - Motherboard Connectors |
24-pin Main Connector
8-pin Power Connector
4+4-pin Power Connector |
| - Power Good Signal |
100 - 500 ms |
| - Form Factor |
ATX 12V 2.3 & EPS 12V 2.92 |
| - Dimension |
8.66 x 5.9 x 3.4 inch( L x W x H )
220 x 150 x 86 mm( L x W x H ) |
| - Warranty |
5 Years |
| - Certifications |
ATI CrossFireX Certified
NVIDIA SLI Certified
80PLUS Silver Certified |
| AC INPUT: |
|
| - Input Voltage |
100 VAC ~ 240 VAC |
| - Input Current |
Max. 18A |
| - Input Frequency Range |
50Hz ~ 60Hz |
| - Inrush Current |
|
| - Operating Range |
|
| - MTBF |
120,000 |
| - RFI / EMI |
UL/CUL, CE, FCC, CB+Baurt mark, GOST, BSMI |
| DC OUTPUT: |
|
| ENVIRONMENT: |
|
| - Operating Temperature |
10 to 40 |
| - Storage Temperature |
-40 to 70 |
| - Operating Humidity |
10% to 85%, non-condensing |
| - Storage Humidity |
5% to 90%, non-condensing |
| PROTECTION: |
|
| - Over Voltage Protection |
Yes |
| - Over Current Protection |
Yes |
| - Over Load Protection |
Yes |
| - Over Termperature Protection |
Yes |
| - Under Voltage Protection |
Yes |
| - Short Circuit Protection |
Yes |
