Aten Sun Console Converter (SPHD15 to Sun USB Interface)

ATEN's CV131B is an interface converter that translates PS/2 keyboard, mouse and monitor signals to a USB SUN workstation's keyboard, mouse and monitor signals. The CV131B fully supports ATEN's existing MasterView KVM switches and console extender products. When used with a KVM switch, you may control IBM PS/2 PCs, Mac computers and Sun Stations from one keyboard, mouse and monitor. You may also use CV131B with ATEN's console extender which will allow you to control your Sun workstation from a remote keyboard, mouse and monitor.

ATEN CV131B Sun USB Console Adapter Features:

  • Console and PC cables molded in
  • Translates PS/2 keyboard, mouse and VGA signals to SUN USB keyboard, mouse and monitor signals
  • Compatible with ATEN's SPHD(Special High Density) equipped KVM switches
  • Compatible with SUN USB system
  • Composite sync video support
  • Keyboard language selection via simple hotkeys
  • Supports PS/2 mice and Microsoft Intellimouse
  • Supports 1600 x 1200, maximum video resolutions including Sun specific: 1152 x 900

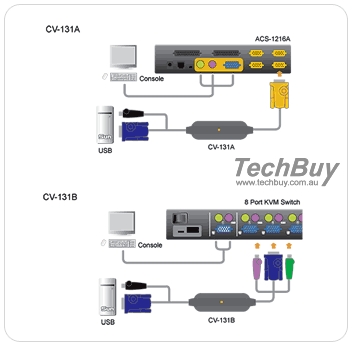

ATEN CV131B Sun USB Console Adapter Function Diagram

ATEN CV131B Sun USB Console Adapter Requirements:

Sun Blade Server 2000/100 (Sun Solaris 8) ATEN KVM with

ATEN CV131B Sun USB Console Adapter Package Content:

1 x CV131A USB Sun Converter
1 x User Manual


ATEN CV131B Sun USB Console Adapter Specifications:




Mechanical
Height 0.91 in. (2.31 cm.)
Width 1.7 in. (4.20 cm.)
Depth 4.19 in. (10.65 cm.)
Weight 0.52 lb. (0.24 kg.)
Cable Length 6 ft. (1.8 m.)
Housing Plastic
Environmental
Operating Temperature 0 ~50C
Storage Temperature -20 ~60C
Humidity 0~80% RH, Non-condensing
Video 1600 x 1200
Console Connectors 1
Connectors to SUN
Keyboard/Mouse 1 x USB Type A Male (Black)
Video 1 x HDB-15 Male (Blue)
Connectors to Switch
Keyboard 1 x 6-pin Mini-DIN Male (Purple)
Video 1 x HDB-15 Female (Blue)
Mouse 1 x 6-pin Mini-DIN Male (Green)
LEDs
Power (1) Orange
Emulation
Keyboard/Mouse Sun
