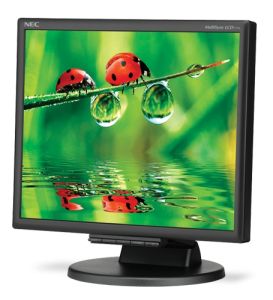

NEC LCD175M-BK LCD Monitor - Black
  • 17", 5ms, 1280x1024, 1000;1, 250cd/m2, VGA, DVI, Speakers, Adjustable Height

IMG 1 of 1
No Longer Available
Part Number:
177836
(?) Brand:
NEC
Manuf No:
LCD175M-BK
LCD175MBK
Shipping Weight:
6.5 KG (Includes product packaging)
Estimate Shipping
Date Added:
2/9/2011
Details Files Images & Video
All stock codes associated to this product
LCD175MBK, LCD175M-BK, 13LCD175MBK, 13LCD175M-BK
17" Desktop Monitor w/ Built-In Speakers

MODEL: LCD175M-BK

Boost your productivity while being environmentally friendly with the 17 NEC MultiSync LCD175M, an eco-conscious LCD desktop monitor that enhances your desktop computing. This value-driven model touts features such as 42% less energy consumption and 50% less mercury content than its predecessors, a carbon footprint meter for tracking the conservation of green gas emissions and Intelligent Power Manager (IPM) system. These advantages, combined with an ergonomic design, a high-contrast screen and Windows7 readiness, make this model ideal for corporate environments.

  • Ambix dual-input technology allows for digital/analog compatibility with upgraded video cards and software as well as connection to two systems
  • ECO Modefunction helps save power, reduce heat and extend the life of the display by allowing you to dim the backlight
  • Intelligent Power Manager (IPM) system and off timer provide innovative power-saving methods and reduce CO2 emissions by shifting to a lower power consumption level or automatically powering down when the monitor is on but not in use
  • Carbon footprint meter helps track and calculate the reduction of green gas emissions
  • Compact packaging helps reduce paper usage, shipping costs and waste
  • ENERGY STAR 5.0 and TCO 5.0


Specifications



Display

Panel Technology TN

Viewable Image Size 17"

Aspect Ratio 5:4

Native Resolution 1280 x 1024

Pixel Pitch 0.26mm

Pixels Per Inch 96@ native resolution

Backlight Type CCFL

Brightness (typical) 250cd/m2

Contrast Ratio (typical) 1000:1

Viewing Angle (typical) 170 Vert., 170 Hor. (85U/85D/85L/85R) @ CR>5

ResponseTime (typical) 5ms

Displayable Colors More than 16.7 million




Synchronization Range

Horizontal (Analog/Digital) 31.5-81.1 kHz

Vertical 56-76 Hz




Input Signal

Video Analog RGB 0.7 Vp-p/75 Ohms

Sync Separate Sync: TTL Level (Positive/Negative)
Composite Sync: TTL Level (Positive/Negative)
Composite Sync on Green: (0.3Vp-p negative 0.7Vp-p positive)



Input Connectors
DVI-D, VGA 15-pin D-sub



Power Consumption (typical)

On 21W

Power Savings Mode 0.4W




Physical Specifications

Dimensions (WxHxD)


Net (with stand) 14.5 x 14.1-16.1 x 9.1 in. / 368 x 358.5-408.5 x 230mm

Net (without stand) 14.5 x 12.6 x 2.4 in. / 368 x 320.5 x 61mm

Weight


Net Weight (with stand) 11.5 lbs. / 5.2 kg

Net Weight (without stand) 8.8 lbs. / 4 kg



VESA Hole Configuration Specifications
100 x 100mm



Environmental Conditions

Operating Temperature 41-95F / 5-35C

Operating Humidity 20-80%

Operating Altitude 6562 ft. / 2000m

Storage Temperature 14-140F / -10-60C

Storage Humidity 10-85%

Storage Altitude 40,000 ft. / 12,192m




Environmental Compliance

ENERGY STAR 5.0

TCO 5.0

EPEAT Gold

RoHS Yes



Limited Warranty (parts & labor, including backlight)
3 years


Additional Features
  • ECO Mode
  • Carbon footprint meter
  • Thin frame
  • Tilt
  • Height-adjustable stand
  • Integrated speakers
  • Rapid Response
  • Ambix
  • XtraView
  • OSD user controls
  • NaViSet software
  • Cable management
  • Touch-integratable
  • VESA mount
  • HDCP
  • DDC/CI
  • No Touch Auto Adjust
  • Plug and Play (VESA DDC 1/2B)
  • VESA DPMS power management
  • AccuColor color control
  • Digital smoothing
  • Digital controls
  • ISO 13406-2 Class II


Ships With
  • Setup sheet
  • User manual
  • Power cord
  • 15-pin D-sub cable
  • Audio cable
