Configuration Choice SATA and SAS models
Overview

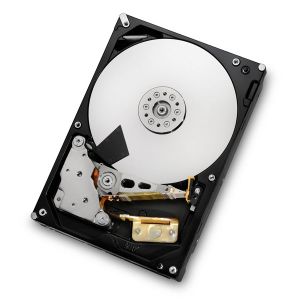

The Hitachi Ultrastar 7K3000 is the worlds first and only 7200 RPM hard drive rated at 2.0 million hours MTBF and backed by a five-year limited warranty. The Ultrastar 7K3000 represents the fifth-generation Hitachi 5-platter mechanical design, first introduced in 2004, and has been field proven by top server and storage OEMs as well as leading Internet giants. When the highest quality and reliability are a top requirement, customer field data proves that the Ultrastar 7K3000 delivers by reducing downtime, eliminating service calls and keeping TCO to a minimum. Engineered for the highest reliability, the Ultrastar 7K3000 is not only put through grueling design tests during development but must also pass stringent ongoing reliability testing during manufacturing. Across the entire Ultrastar family, world-class quality control, combined with scientific root-cause analysis and multi-faceted corrective actions, ensure that Hitachi GST remains the recognized leader in quality and reliability for enterprise-class hard drives.
Specifications
| Model(s) |
SATA models
HUA723030ALA640
HUA723030ALA641
HUA723020ALA640
HUA723020ALA641
|
SAS models
HUS723030ALS640
HUS723030ALS641
HUS723020ALS640
HUS723020ALS641
|
|
| Interface |
SATA 6Gb/s |
SAS 6Gb/s |
|
| Capacity (GB) |
3TB / 2TB |
 |
|
| Sector size (variable, Bytes/sector) |
512 |
512 / 520 / 528 |
|
| Max areal density (Gbits/sq. in.) |
369 / 360 |
|
|
| Performance |
| Data buffer (MB) |
64 |
|
|
| Rotational Speed (RPM) |
7200 |
|
|
| Interface transfer rate (MB/sec, max) |
600 |
|
|
| Sustained transfer rate (MB/sec, typ.) |
152 |
|
|
| Seek Time (read, ms, typical) |
8.2 |
|
|
| Reliability |
| Error Rate (non-recoverable, bits read) |
1 in 1015 |
|
|
| MTBF (M hours) |
2.0 |
|
|
| Load/Unload Cycles |
600,000 |
|
|
| Availability (hrs/day x days/wk) |
24x7 |
|
|
| Acoustics |
| Seek (Bels, typical) |
2.9 |
|
|
| Power |
| Requirement |
+5 VDC (+/-5%)
+12 VDC (+10%/-8%) |
|
|
| Requirement: Start-up (W, peak, max) |
1.2 (+12V), 2.0 (+5V) |
|
|
| Requirement: Read/Write (W, avg) |
11.3 |
12.3 |
|
| Unload idle (W) |
5.6 |
6.6 |
|
| Physical size |
| Z-height (mm) |
26.1 |
|
|
| Dimensions (width x depth, mm) |
101.6 (+/-0.25) x 147 |
|
|
| Weight (g, max) |
690 |
|
|
| Environmental (operating) |
| Ambient temperature |
5 to 60 C |
|
|
| Shock (half-sine wave) |
70 |
|
|
| Vibration (5 to 500 Hz) |
0.67 (XYZ) |
|
|
| Environmental (non-operating) |
| Ambient temperature |
-40 to 70 C |
|
|
| Shock (half-sine wave) |
300 |
|
|
Intended for use in lower duty cycle environments in the enterprise storage hierarchy such as nearline applications. This MTBF rating is based on a sample population and is estimated by statistical measurements and acceleration algorithms under nominal operating conditions. MTBF ratings are not intended to predict an individual drives reliability. MTBF does not constitute a warranty.
One GB is equal to one billion bytes and one TB equals 1,000GB (one trillion bytes) when referring to hard drive capacity. Accessible capacity will vary from the stated capacity due to formatting and partitioning of the hard drive, the computers operating system, and other factors.
Portion of buffer capacity used for firmware. 4 Excludes command overhead
