ThermalTake Overseer RX-I Tower Case - w. 500W LitePower PSU, Black
  • 2xUSB2.0, 2xUSB3.0, 1xHD-Audio, 1x120mm Fan, 1x200mm Fan, Side-Window, Docking Station, ATX

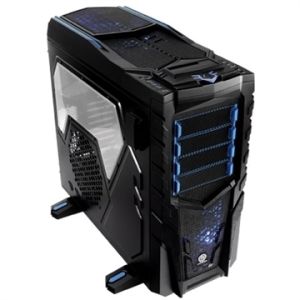

IMG 1 of 1
No Longer Available
Part Number:
178030
(?) Brand:
ThermalTake Web Site
Manuf No:
TBB0541138826
Shipping Weight:
25 KG (Includes product packaging)
Estimate Shipping
Date Added:
7/9/2011
Details Files Images & Video
All stock codes associated to this product
, TBB0541138826


This bundle is comprised of the following products:

1778921 x ThermalTake Overseer RX-I Tower Case - NO PSU, Black
2xUSB2.0, 2xUSB3.0, 1xHD-Audio, 1x120mm Fan, 1x200mm Fan, Side-Window, Docking Station, ATX
1262411 x ThermalTake 500W Litepower - ATX 12V v2.2, 120mm Fan - OEM
5xSATA, 1xPCI-E 6-Pin
ThermalTake Overseer RX-I Tower Case - NO PSU, Black2xUSB2.0, 2xUSB3.0, 1xHD-Audio, 1x120mm Fan, 1x200mm Fan, Side-Window, Docking Station, ATX

ThermalTake Overseer RX-I Tower Case - NO PSU, Black
  • 2xUSB2.0, 2xUSB3.0, 1xHD-Audio, 1x120mm Fan, 1x200mm Fan, Side-Window, Docking Station, ATX

back to top

Product Description:

Overseer RX-I

VN700M1W2N

Features

  • Breath lighting effect.
  • E-sports gaming style front bezel.
  • USB 3.0 SuperSpeed .
  •  Top-mounted HDD Docking Station enables blazing fast file transfer and effortless hot-swap capability.
  •  Black coating makes stylish inside look.
  •  Bottom-placed PSU design for better and easier installation.
  • Supports most advanced AMD & NVIDIA graphic cards up to 12.5/32cm (e.g. AMD Radeon HD 6990 & nVidia Geforce GTX 590).

Unique Design


Ready for long graphic card up to 34cm

Internal USB 3.0 Connection

Top HDD Docking

Top HDD Docking

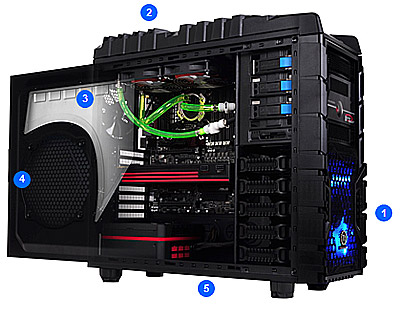

Ventilation


HDD Air Cooling System

1. Front (intake) : 200 x 200 x 30 mm Blue LED fan (600~800rpm, 13~15dBA)

CPU Air Cooling System

2. Top (exhaust) : 200 x 200 x 30 mm Blue LED fan (600~800rpm, 13~15dBA)
200 x 200 x 30 mm (Optional)
3. Rear (exhaust) : 120 x 120 x 25 mm Turbo Fan (1000rpm,16dBA)

VGA Air Cooling System

4. Side (intake) : 200 x 200 x 30 mm fan(Optional)
5. Bottom (intake) : 120 x 120 x 25 mm fan (Optional)


Front 20cm Blue LED fan


Top 20cm Blue LED fan


Rear 12cm turbo fan


Optional 20cm side fan


Optional bottom 12cm fan

Specifications

P/N VN700M1W2N
Case Type Full Tower
Dimension (H x W x D) 535 x 220 x 580 mm (21.1x 8.7x 22.8 inch)
Net Weight 10.3 Kg / 22.7 lb
Side Panel Window
Color Exterior & Interior : Black
Material SECC
Cooling System Front (intake) :
200 x 200 x 30 mm Blue LED fan (600~800rpm, 13~15dBA)
Rear (exhaust) :
120 x 120 x 25 mm Turbo Fan (1000rpm,16dBA)
Top (exhaust) :
200 x 200 x 30 mm Blue LED fan (600~800rpm, 13~15dBA)
200 x 200 x 30 mm fan (Optional)
Side (intake) : Optional
200 x 200 x 30 mm fan
Bottom (intake) : Optional
120 x 120 x 25 mm fan
Drive Bays - Accessible: 3 x 5.25, 1 x 3.5
- Hidden: 5 x 3.5 or 2.5
- HDD Docking: 1 x 3.5 or 2.5
Expansion Slots 8
Motherboards 9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX) , 12 x 13 (Extend ATX)
I/O Ports USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1
PSU Standard PS2 PSU
LCS Upgradable Supports 1/23/81/4 water tube
Other CPU cooler height limitation: 177mm
VGA length limitation: 344mm


ThermalTake 500W Litepower - ATX 12V v2.2, 120mm Fan - OEM5xSATA, 1xPCI-E 6-Pin

ThermalTake 500W Litepower - ATX 12V v2.2, 120mm Fan - OEM
  • 5xSATA, 1xPCI-E 6-Pin

back to top

Product Description:

Thermaltake Litepower 500WTT Power Supply



Intel ATX 12V 2.2 Compatible.
Dual +12V output circuit provides outstanding steady output for system.
Selectable115 / 230V AC input voltage for different country.
More than 65% efficiency at typical load operation.
High reliability: MTBF>100,000 hours.
Protections: Over Current, Over Voltage and short circuit protection.
Safety / EMI Approvals: UL/CUL, FCC, BSMI and GOST certified.
Dimension (W/H/D): 150mm x 86mm x 140mm.





Specifications:

P/N W0316
Type Intel ATX 12V 2.2
Output Capacity 400W
Peak Output Capacity 500W
Color Silver
Dimension ( W / H / D ) 150mm x 84mm x 140mm
PFC (Power Factor Correction) Active PFC
Power Good Signal 100-500 msec
Hold Up Time 16msec (minimum)@70% load,230Vac/50Hz
Input current 550W: 6A@115Vac, 3A@230Vac
Input Frequency Range 47Hz ~ 63 Hz
Input Voltage 700W: 10A@115Vac, 5A@230Vac
600W: 8A@115Vac, 5A@230Vac
Operating Environment 10 ? to + 25 ?
Operating Humidity 20% to 80%,non-condensing
Storage Temperature -40 ? to +70 ?
Storage Humidity 5% to 95%, non-condensing
Cooling System 200010%R.P.M.
Efficiency 70% at normal AC input voltage and frequency
MTBF 100,000 hrs minimum
Safety Approval UL, TUV, CE, FCC,BSMI,GOST
PCI-E adaptor cable 6Pin x 1
Warranty 2 years
