All stock codes associated to this product
TSQVH12TL/R6AP, TS-QVH12TL/R6AP, 4981254589892
TeraStation Pro Quad - TS-QVHL/R6
12TB - TS-QVH12TL/R6
Description
Buffalos TeraStation Pro Quad is a high performance network storage solution ideal for businesses and demanding users looking to implement a RAID based network storage solution for larger networks and business critical applications. With the powerful Intel Atom D510 Dual-Core Processor, TeraStation Pro Quad provides exceptional performance during file transfers and everyday NAS functions. TeraStation Pro Quad runs many services simultaneously and the Dual-Core processor enables the ability to focus on concurrent tasks with minimal performance degradation: experience maximum network throughput while a replication job runs in the background or perform fast search indexing while an anti-virus scan is occurring. TeraStation Pro Quad is packed with business class features such as Active Directory support, disk quota support, share level Replication, failover support, dual gigabit Ethernet ports, hot-swap hard drives and USB 3.0 accessory support.
Overview
Features
Intel® Atom™ 1.66 GHz Dual Core / 2 GB RAM
Front loading hot swap hard drives with lockable front panel
Active Directory support
Disk quota (soft quota) support prevents users/groups from consuming too much disk space
Scheduled shut down eliminates unnecessary access and reduces energy costs
DFS (Distributed File System) support
Easy setup wizard and management through intuitive web interface
Hot swap hard drive trays behind the front panel for easy drive access and replacement
NAS con guration tool allows exporting settings to a file for easy, one-click deployment of multiple TeraStations

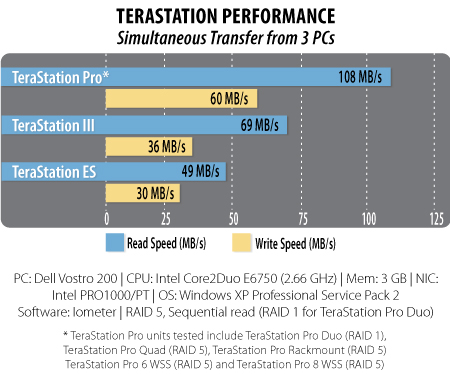

Improved CPU speed enables faster data transfer
10/100/1000 Gigabit Ethernet with Jumbo Frame
Two Ethernet ports for port trunking
Supported RAID levels: 0, 1, 5, 6, 10, Normal (JBOD)
Share level replication feature with device failover
Hot spare enables automatic RAID build in case of a drive failure
Optional AES-128 bit hard drive encryption
Large silent fan cools hard drive e ciently
Advanced ventilation design reduces internal heat
LCD Display shows important TeraStation information and disk status
Built-in FTP server functionality
BitTorrent Client: Download digital content from the Internet directly to your TeraStation
DLNA CERTIFIED built-in media server for streaming multimedia content
2 USB 3.0 ports and 2 USB 2.0 ports for external drive, printer and UPS connectivity
10 licenses of NovaBACKUP® Business Essentials Backup Included: Back up 10 Windows PCs, Windows Servers, Exchange or MS SQL databases
3-Year Limited Warranty
Technology
Replication
BitTorrent - uTorrent Client
NovaBACKUP
DLNA Technology
NAS technology
RAID technology
WebAccess
Specifications
LAN Interface
| Standard Compliance |
IEEE802.3ab / IEEE802.3u / IEEE802.3 |
| Data Transfer Rates |
10 / 100 / 1000 Mbps |
| Connector Type |
RJ-45 |
| Number of Ports |
2 |
Internal Hard Drives
| Number of Drives |
4 |
| Drive Interface |
SATA 3 Gb/s |
| Supported RAID Levels |
0, 1, 5, 6, 10, Normal |
USB Interface
| Standard Compliance |
USB 3.0 / USB 2.0 |
| Number of Ports |
2 USB 3.0 / 2 USB 2.0 |
| Data Transfer Rates |
Max: 5 Gbps (USB 3.0)
Max: 480 Mbps (USB 2.0) |
Protocol Support
| Networking |
TCP/IP |
| File Sharing |
CIFS/SMB, AFP, HTTP/HTTPS, FTP/SFTP/FTPS, NFS |
| Directory Integration |
LDAP, Active Directory |
| Management |
HTTP/HTTPS |
| Time Synchronization |
NTP |
Other
| Dimensions (WxHxD in.) |
6.7 x 8.5 x 9.1 |
| Weight (lbs) |
Average 17.6 |
| Operating Environment (Fahrenheit) |
41-95 |
| Setup Utility OS Support |
Windows Operating Systems |
| Client OS Support |
Windows 7 (32-bit/64-bit), Windows Vista (32-bit/64-bit), Windows XP, Windows 2000, Windows Server 2008, Windows Server 2003, Windows 2000 Server, Mac OS X 10.4 - 10.7 |
| Power Supply |
Internal, AC 100-240V 50/60 Hz |
